HOW TO DETERMINE
IF ALTERNATE FLOOR
PROTECTION MATERIALS ARE
ACCEPTABLE
The specified floor protector should be 3/8" (18mm)
thick material with a K - factor of 0.84.
The proposed alternative is 4" (100mm) brick with
a C-factor of 1.25 over 1/8" (3mm) mineral board
with a K-factor of 0.29.
Step (a):
Use formula above to convert specification to
R-value.
R = 1/k x T = 1/0.84 x .75 = 0.893.
Step (b):
Calculate R of proposed system.
4" brick of C = 1.25, therefore
Rbrick = 1/C = 1/1.25 = 0.80
1/8" mineral board of k = 0.29, therefore
Rmin.bd. = 1/0.29 x 0.125 = 0.431
Total R = Rbrick + Rmineral board =
0.8 + 0.431 = 1.231.
Step (c):
Compare proposed system R of 1.231 to specified
R of 0.893. Since proposed system R is greater
than required, the system is acceptable.
DEFINITIONS
Thermal Conductance:
C = Btu = W
(hr)(ft )( F) (m
2 o
Thermal Conductivity:
k = (Btu)(inch) = W
(hr)(ft )( F) (m)(K)
3 o
Thermal Resistance:
R = (ft )(hr)( F) =
2 o
Btu W
INSTALLATION INTO A MASONRY
FIREPLACE
Regency Inserts are constructed with the highest quality
materials and assembled under strict quality control
procedures that ensure years of trouble-free, reliable
performance. It is important that you read this manual
thoroughly and fully understand safe installation and
operating procedures. The more you understand the
way your Regency Insert operates, the more enjoyment
you will experience from knowing that your unit is
operating at peak performance.
WARNING: The room heater shall not be installed
in a factory-built fireplace.
BEFORE INSTALLING YOUR INSERT
1. Please read this entire manual before you install
and use your new wood insert. Failure to follow
instructions may result in property damage, bodily
injury, or even death. Install and use only in
accordance with manufacturer's installation and
operating instructions.
2. Check your local building codes - Building Inspection
Department.
installing your insert. Be aware that local codes
and regulations may override some items in the
manual.
3. Notify your home insurance company that you plan
to install a fireplace insert or hearth heater.
4. Your fireplace insert is heavy and requires two or
more people to move it safely. The insert can be
badly damaged by mishandling.
Careless installation is the major
cause of safety hazard. Check all
local building and safety codes
before installation of unit.
5. If your existing fireplace damper control is
inaccessible with your Regency Insert installed,
you should either remove or secure it in the open
position.
6. Inspect your fireplace and chimney prior to installing
your insert to ensure it is free from cracks, loose
mortar, or other signs of damage. If repairs are
required, they should be completed before installing
your insert. Do not remove bricks or mortar from
your masonry fireplace.
7. Do not connect the insert to a chimney system
servicing another appliance or an air distribution
duct.
When referencing installation or connection to
masonry fireplaces or chimneys, the masonry
construction must be code compliant.
)(K)
2)
CHIMNEY SPECIFICATIONS
Before installing, check and clean your chimney
= Btu
system thoroughly. If in doubt about its condition,
(hr)(ft)( F)
o
seek professional advice. Your Regency Insert is
designed for installation into a masonry fireplace that
is constructed in accordance with the requirements
of "The Standard for Chimneys, Fireplaces, Vents,
(m )(K)
2
and Solid Fuel Burning Appliance", N.F.P.A. 211, the
National Building Code of Canada, or the applicable
local code requirements.
The appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical
code, CSA C22.1. Regency Inserts are designed to
use either a 5-1/2" (140 mm) or 6" (152 mm) flue.
This insert must be connected to a code-approved
masonry chimney or listed factory-built fireplace
chimney with a direct flue connector into the first
chimney liner section. The chimney size should not
be larger or smaller than three times greater than
the cross-sectional area of the flue collar.
ULC628-2022 - Canada
This fireplace insert must be installed with a
continuous chimney liner liner of 5.5 or 6 inch
diameter extending from the fireplace insert to
the top of the chimney. The chimney liner must
conform to the class 3 requirements of CAN/
ULS-S635 Standard for ling systems for existing
Masonry or factory built chimneys and vents
or to the requirements of CAN/ULC-S640,
Standard for lining systems for new masonry
chimneys.
You may need a permit before
UL1482-2022 - U.S.A
A chimney complying with the requirement
for type HT chimneys in the standard for
chimneys,factory built residential and
building heating appliance UL103 or a code
approved masonry chimney liner with a
flue liner.
This fireplace insert must be installed
with a continuous chimney liner liner of
5.5 or 6 inch diameter extending from the
fireplace insert to the top of the chimney.
When this room heater is not properly
installed, a house fire may result. To reduce
the risk of fire follow the installation
instructions. Contact local building or
fire official as about restrictions and
installation requirements in your area.

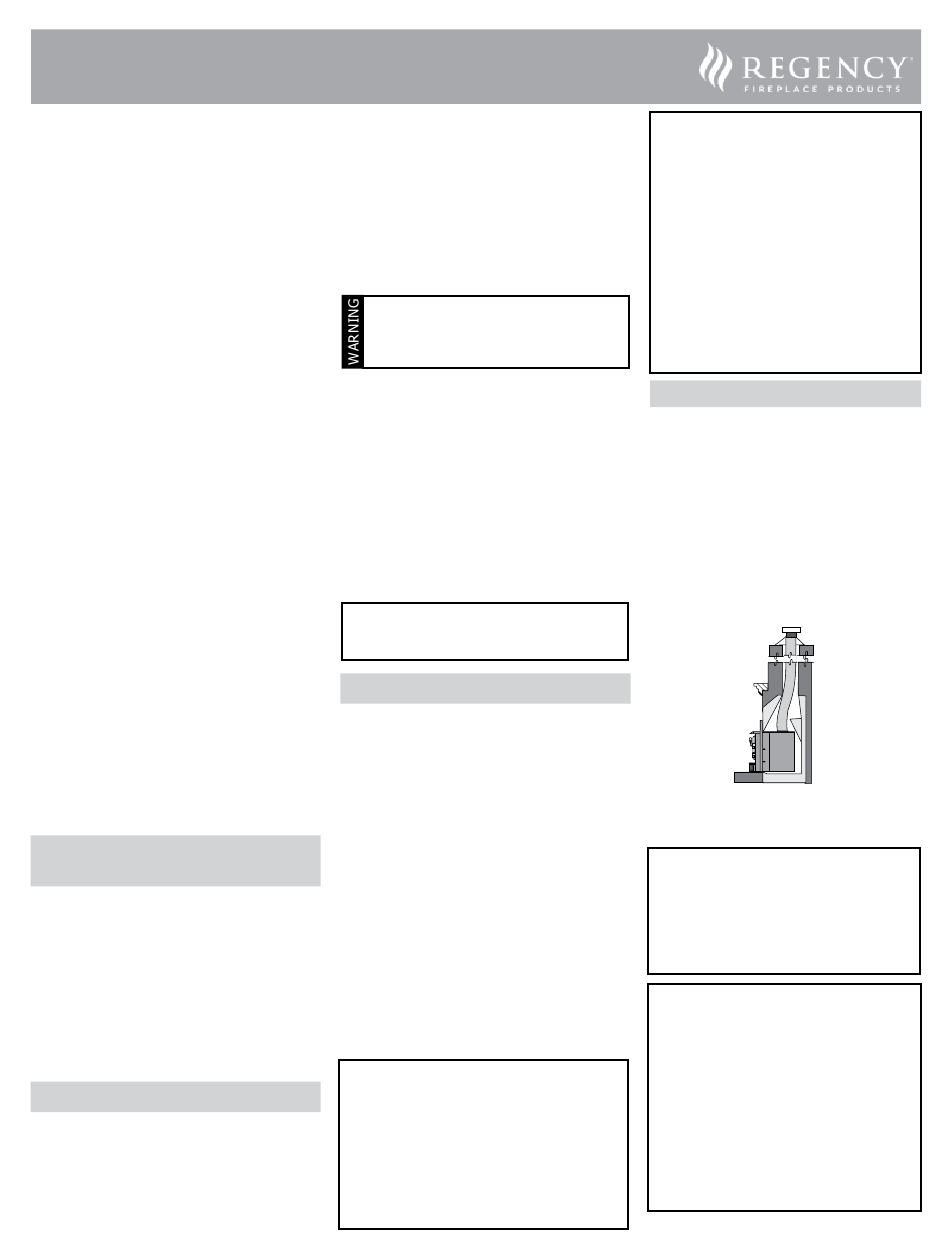

DRAFT
Draft is the force which moves air from the appliance
up through the chimney. The amount of draft in your
chimney depends on the length of the chimney, local
geography, nearby obstructions and other factors.
Too much draft may cause excessive temperatures in
the appliance, resulting in damage. An uncontrollable
burn or excessive temperature indicates excessive
draft. Inadequate draft may cause back puffing into
the room and plugging of the chimney. Inadequate
draft will cause the appliance to leak smoke into the
room through appliance and chimney connector
joints. Ensure the heater is installed in areas that are
not too close to neighbors, or in valleys that would
cause unhealthy air quality or nuisance conditions.
Recommended chimney height
from top of flue collar:
Minimum 15 feet (4.6 meters)
Note: If the fireplace has been modified
to accommodate a fireplace liner, the
installer is to attach the metal tag to
the fireplace using screws or nails, in
a location readily visible should the
fireplace insert be removed. A metal
tag is supplied with this wood insert.
IMPORTANT:
Smoke and CO Detectors:
Make sure your home has a working smoke and
CO detector, especially near any bedrooms. We
recommend having a smoke and CO detector
in the same room as the wood appliance for
additional safety. Location of both detectors
should be chosen wisely to avoid false alarms
when reloading the appliance.
Fire Extinguisher:
A fire extinguisher should be installed in the
home. The location of the fire extinguisher
should be known by all family members.
I3000 Wood Fireplace Insert | 7
