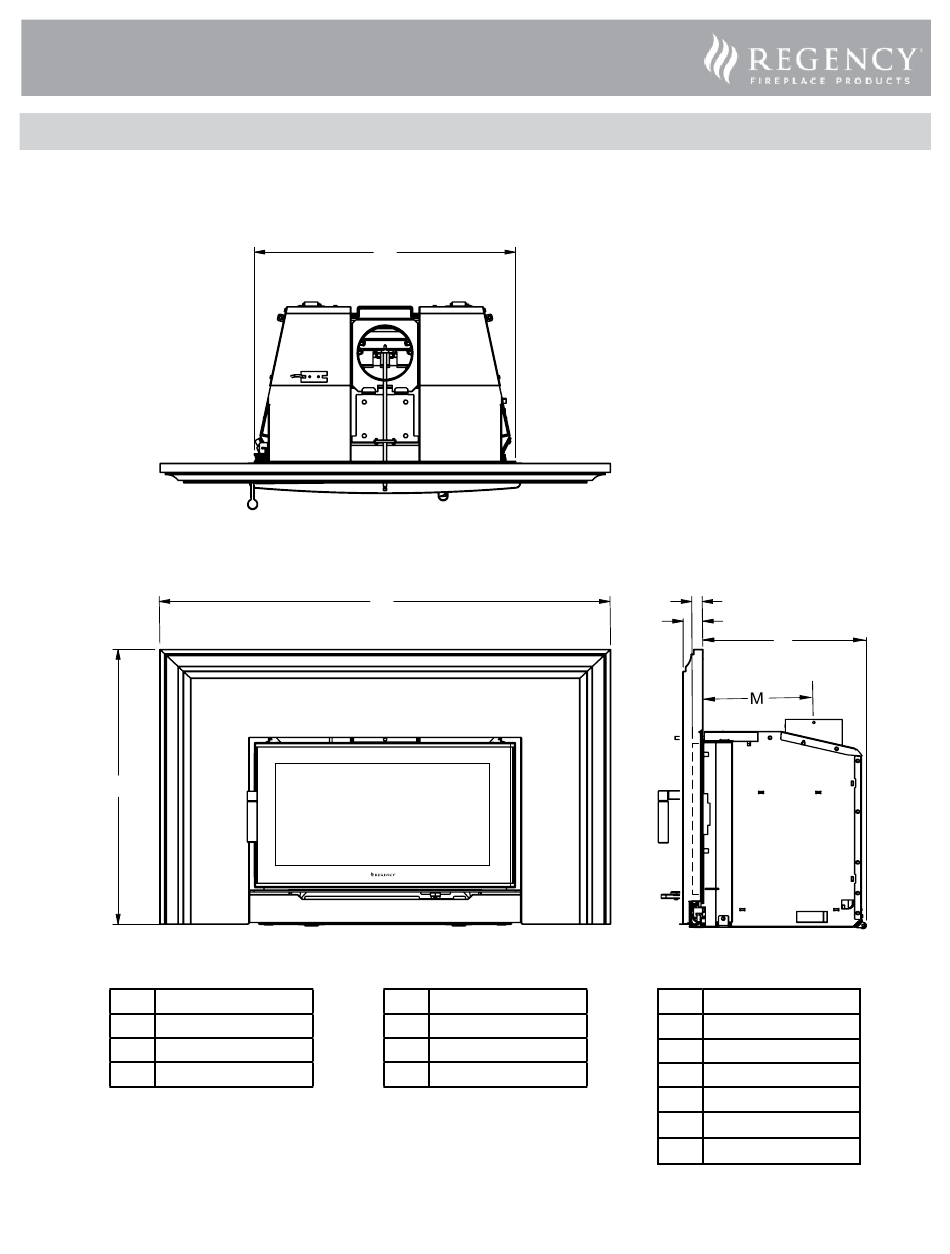

Top View; Front View; Side View - Regency i3000 Manual

Faceplate with Traditional Extrusion and Premium Surround Option
Faceplate with Traditional Extrusion Option
FACEPLATE WITH TRADITIONAL EXTRUSION
FACEPLATE WITH TRADITIONAL EXTRUSION OPTION
B
*Allows unit to fit into a 30 1/2" wide and 19" deep opening.
A 51-3/4" (1314 mm)
B 33-7/8" (860 mm)
C 2-1/4" (57 mm)
D 18-1/2" (470 mm)
NOTE: These can only be installed on Contemporary or Classic Faceplates
**The dotted lines refer to fuel door opening from back of traditional extrusion

Top View

O

Front View

A
E 46-3/4" (1187 mm)
F 31-1/8" (790 mm)
G 1-3/4" (45 mm)
H 19" (483 mm)

Side View

I
C
D
**
I 2.0" (51 mm)
**
J 1-1/2" (38 mm)
K 44-3/4" (1136 mm)
L 30-1/4" (768 mm)
M 13-3/16" (335 mm)
N 12-11/16" (322 mm)
O 30" (762 mm)
