Regency i3000 Manual page 6

MASONRY FIREPLACE CLEARANCES
The minimum required clearances to combustible materials when installed into a masonry fireplace are listed below.
ITEM MEASUREMENT
A 15-1/2" (394 mm)
B 15" (381 mm) for 3" (78 mm)
mantel
20-1/2" (521 mm) for 12" (305
mm) mantel
C 13-3/4" (349 mm)
D 11-3/4" (298 mm)
E 16" (406 mm) USA
18" (457 mm) Canada
F 8" (203 mm)
G
23-1/2" (597 mm)
H
30" (762 mm)
12" (305mm) Mantel
3" (76 mm) Mantel
20-1/2"
(521 mm)
( 81mm)
Floor Protection
Floor thermal insulation/protection with an R value of 2.8 is required if the unit is raised 0 to 6" (152 mm) measured from the bottom of the appliance.
Thermal floor protection is not required when unit is raiser greater than 6" (152 mm) measured from the bottom of the appliance.
However ember protection is still required. Non-combustible material such as brick, tile, concrete board, etc. or certified to UL-1618 Type 1 or as defined by
local codes. Type 1 Hearth pad extensions typically provide protection from embers only, but won't provide thermal protection from the heat of the appliance.
Please check to ensure that your floor protection and hearth will meet the standards for clearance to combustibles. Your hearth extension must be made
from a non-combustible material extending 16" (406 mm) for US and 18" (457 mm) for Canada—measured from the fuel loading door.
Wood Insert Specifications
Your fireplace opening requires the following minimum sizes:
Dimensions Contemporary/Classic/
Arched Faceplates
HEIGHT 24" (610 mm)
WIDTH 32" (813 mm)
DEPTH 21" (533 mm)
Model # Reference
i3000A = Wood Fireplace Insert with Arched Door
i3000R = Wood Fireplace Insert with Rectangular Door
6 | I3000 Wood Fireplace Insert
DESCRIPTION
Adjacent side wall to side of door
Mantel** to top of Door
Top facing to top of Door*
Side facing to side of Door*
Minimum hearth extension***
Minimum hearth side extension***
To top of Door
(Reference Dimension Only)
From Side of Door
(Reference Dimension Only)
15"
3
• *If there is only a top facing (C) and no side facing (D), refer to (B) mantel (to top of unit)
clearance requirements. Side facing (D) and top facing (C) is 1-1/2" (38 mm) thick, maximum.
• Ensure the paint that is used on the mantel and the facing is heat resistant, or the paint may
discolour.
Top of
Door
Side View
Classic/Contemporary
Faceplate with Traditional Extrusion
24" (610 mm)
30-1/2" (775 mm)
19" (483 mm)

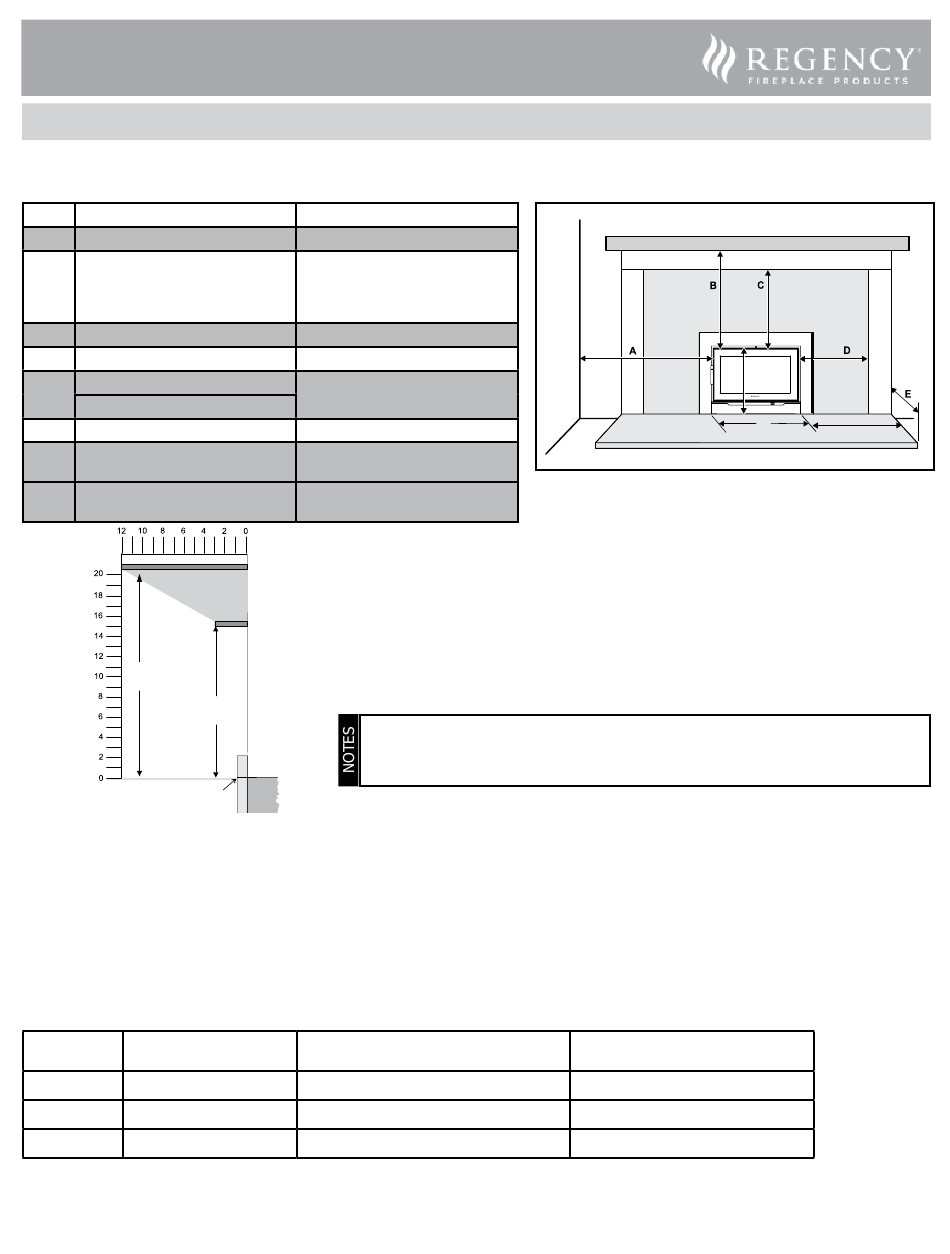

Clearance diagram for installations
NOTE: SHOWN WITH RECTANGULAR DOOR. ARCH DOOR
CLEARANCES ARE EXACTLY THE SAME.
***Both Canada/USA:
Minimum Hearth Extension for the front (E) is measured from the
fuel door opening.
(F) measurement (minimum hearth side
extension) is taken from the side of the door.
**The mantel can be installed anywhere in the shaded area or
higher, using the above scale.
Classic/Contemporary Faceplate
with Premium Surround
24" (610 mm)
32" (813 mm)
19-1/2" (496 mm)
G
H
F
