EWC
Semi cutoff Emergency Wall Pack CCT Changeable
PRE. INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts are present.
Compare parts with package contents list and diagram on previous page. If any part is missing or
damaged, do not attempt to assemble, install or operate the product. Contact customer service for
replacement parts.
• Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers, electrical tape,
wire cutters, safety glasses, ladder, wire stripper.
SAFETY INFORMATION
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to
power off. The electrical system you want to connect the device to must be grounded.
Read the instructions before using or powering this device. The safety instructions
must remain with the unit in case of transfer. Any damage to the device linked to an
inappropriate use is excluded from support by the warranty. Before connecting, make
sure that the current and voltage are compatible with this device. We highly recommend
that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by
any means for the use or misuse of the following information. We are NOT responsible in
whole or part for any harm or damage that may or may not be caused. We reserve the right
to revise the components of any product, due to part availability or change ETL, CUL, UL
standards without assuming any obligation or liability to modify any products previously
manufactured and without notice. These instructions do not cover all details of variations
in equipment, nor do they provide every possible contingency to be met. Turn off / unplug
power when installing or service device.
INSTALLATION
→Before beginning installation, turn off the circuit breaker

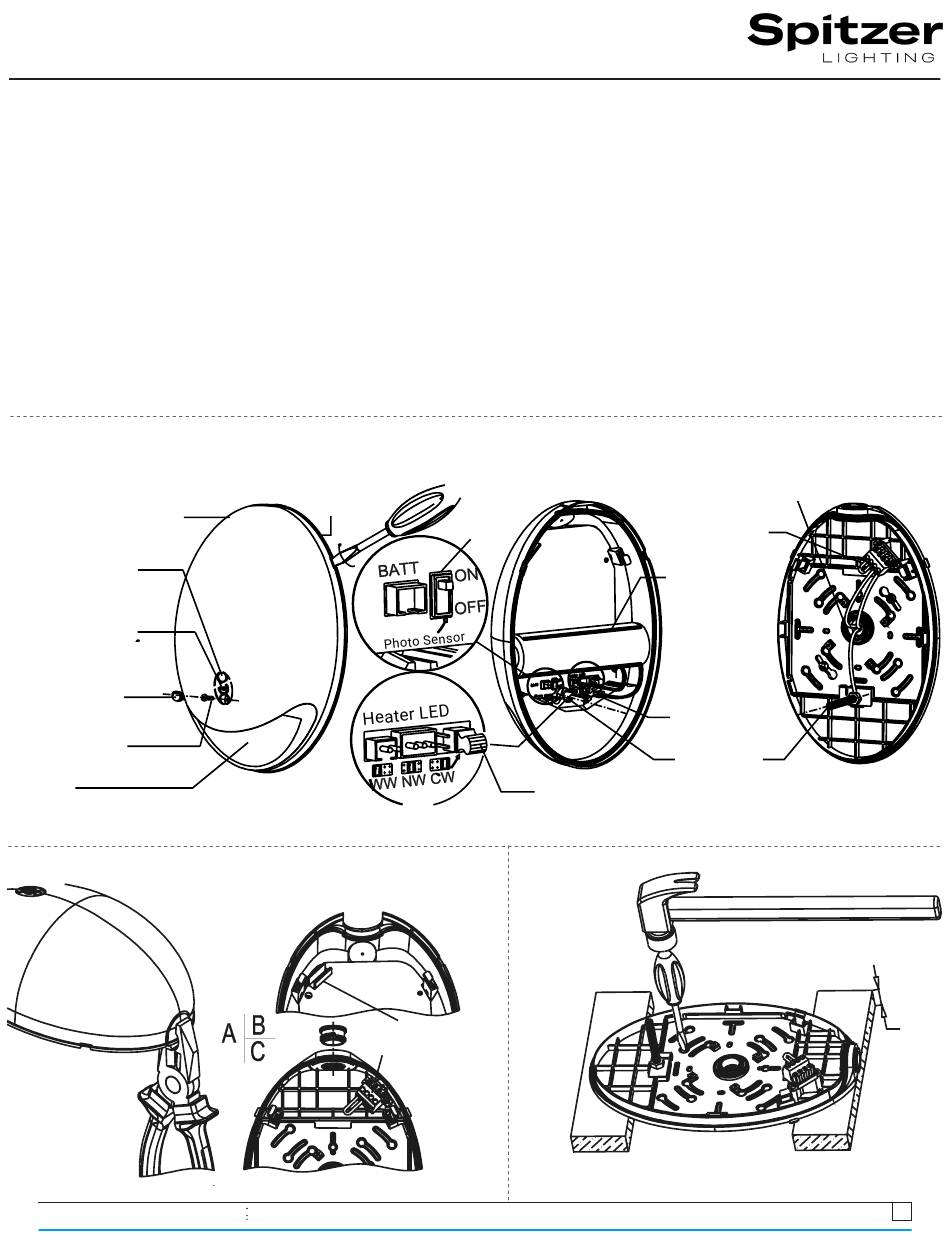

→FIG 1
Housing / Front Cover
Photo Sensor
Test switch/
Status indicator
Rubber cap
(accessory bag)
Fixing Screw
(accessory bag)
Lens
→FIG 2
702 Interchange Blvd, Newark DE 19711
Back Plate
AC reseat
terminal block
www.spitzerlighting.com
FUNCTION
• Photo sensor and wall switch functions are only available for general light mode, photo sensor function is
factory's default setting. Emergency lighting has no these functions
• In photo sensor mode, if ambient luminance <10Lux, fixture will be turned on automatically, and if ambient
luminance> 30Lux, fixture will be turned off.
• In wall switch mode, make a wall switch between 1 and 2
• Remove the jumper cable to get non-maintain (emergency only) function
• 4000K color temperature is factory's default setting, change the pin jumper position to obtain different color
temperature
• -30°C ⁓ 50°C ambient temperature is factory's default setting
• The battery pack assembly contains the battery, heater pad and thermal protection. If necessary please contact
the manufacturer to replace it. If the pack scrapping in further, please separate them
Slide
Switch
Pin jumper
→FIG 3
Installation Manual
Cable Gland
Jumper cable
Battery
with heater
module
Battery
connector
Guide post
and groove
1
