Spitzer LIGHTING WALLPACK Series Installation Manual

WALLPACK SERIES
SLIM SEMI-CUT OFF WALLPACK TRADITIONAL
PRODUCT PARAMETER
INPUT VOLTAGE 120-277V
SURGE PROTECTION 4KV SPU INCLUDED
OPERATIONAL TEMP (-13°F ~ 104°F)
WALL MOUNT INSTALLATION (Caution: Before beginning installation turn off the circuit breaker and light switch)

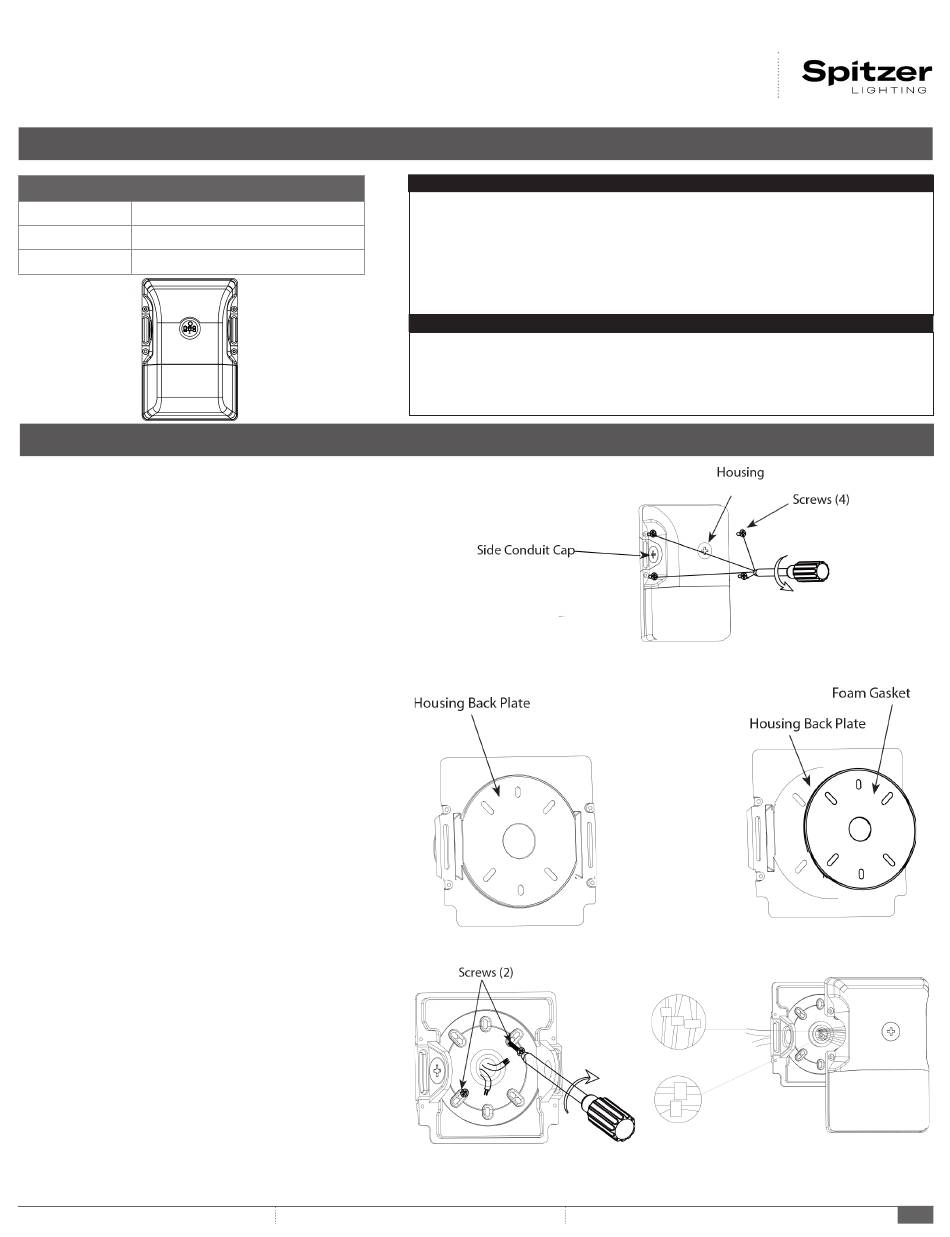

1. Loosen Housing side Screws (4) as shown in Fig. 1.
2. Remove Housing Back Plate. as shown in Fig. 2.
3. Apply Foam Gasket (provided) to external surface of the Housing Back Plate by
removing yellow plastic film and adhering to Housing Back Plate as shown in Fig. 3.
4. Mount Housing Back Plate to surface or junction box (supplied by others) and secure
with (2) Screws (supplied by others) as shown in Fig. 4.
5. Feed supply wires through Housing Back Plate as shown in Fig. 5. Wire the Housing
leads to supply wires using UL listed wire connectors according to NEC and local codes
(Fig. 9). Push all wires into the housing.
6. Place wired Housing over the Housing Back Plate and secure with (4) Screws
(provided) as shown in Fig. 1.
7. For Side Conduit wiring, remove Side Conduit Cap using a screwdriver as shown in
Fig. 1. Feed supply wires through conduit opening with a suitable connector as shown
in Fig. 5. Wire the driver leads to the supply wires using UL listed wire connectors
according to NEC and local codes (Fig. 9). Refer to Step 6 for mounting Housing to
surface or junction box.
www.spitzerlighting.com
I N S T A L L A T I O N M A N U A L
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to power off. Do not perform any operations while
this unit is powered on. The electrical system you want to connect the device to must be grounded. Read the instructions before using
or powering this device. The safety instructions must remain with the unit in case of transfer. Any damage to the device linked to an
inappropriate use is excluded from support by the warranty. Before connecting, make sure that the current and voltage are compatible
with this device. We highly recommend that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by any
means for the use or misuse of the following information. We are NOT responsible in whole or part for any harm or damage that may
or may not be caused. We reserve the right to revise the components of any product, due to part availability or change ETL, CUL, UL
standards without assuming any obligation or liability to modify any products previously manufactured and without notice. These
instructions do not cover all details of variations in equipment, nor do they provide every possible contingency to be met. Turn off /
unplug power when installing or service device.
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts are present. Compare parts with package contents
list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble, install or operate the product.
Contact customer service for replacement parts.
• Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers, electrical tape, wire cutters, safety glasses, ladder,
wire stripper.
