Spitzer LIGHTING PTU Installation Manual

PTU
Post Top Urban
KEY TECHNICAL DATA
INPUT VOLTAGE 120 - 277V
CONTROL ON/OFF WITH 0-10V DIMMING
DRIVER
WORKING TEMP. -13°F ~ 104°F
SAFETY INFORMATION
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to
power off. The electrical system you want to connect the device to must be grounded.
Read the instructions before using or powering this device. The safety instructions
must remain with the unit in case of transfer. Any damage to the device linked to an
inappropriate use is excluded from support by the warranty. Before connecting, make
sure that the current and voltage are compatible with this device. We highly recommend
that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by
any means for the use or misuse of the following information. We are NOT responsible in
whole or part for any harm or damage that may or may not be caused. We reserve the right
to revise the components of any product, due to part availability or change ETL, CUL, UL
standards without assuming any obligation or liability to modify any products previously
manufactured and without notice. These instructions do not cover all details of variations
in equipment, nor do they provide every possible contingency to be met. Turn off / unplug
power when installing or service device.

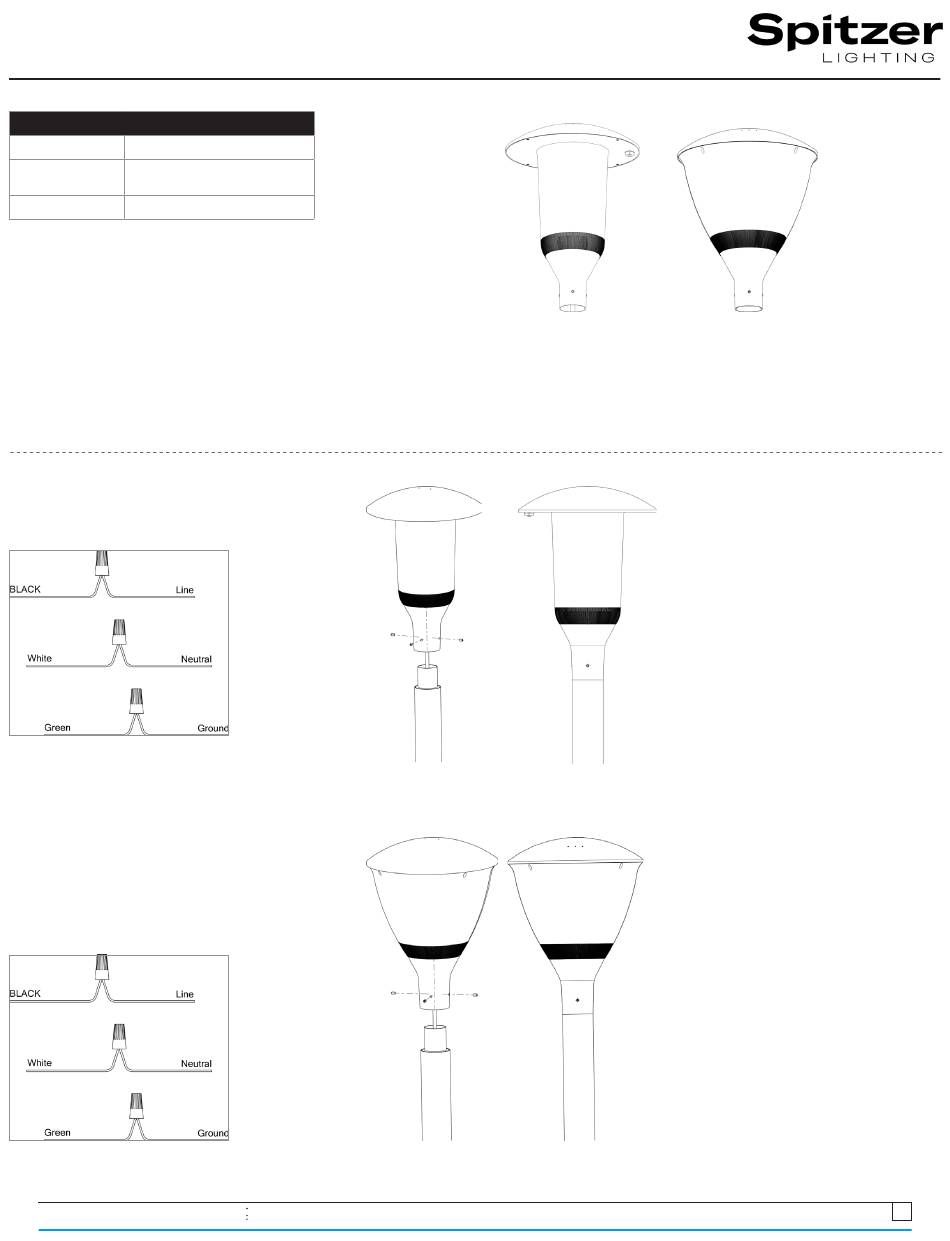

NARROW POST TOP INSTALLATION
→Before beginning installation, turn off the circuit breaker
→WIRING IAGRAM
WIDE POST TOP INSTALLATION
→Before beginning installation, turn off the circuit breaker
→WIRING IAGRAM
702 Interchange Blvd, Newark DE 19711 www.spitzerlighting.com
PRE. INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts are present.
Compare parts with package contents list and diagram on previous page. If any part is missing or
damaged, do not attempt to assemble, install or operate the product. Contact customer service for
replacement parts.
• Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers, electrical tape,
wire cutters, safety glasses, ladder, wire stripper.
1. Connect the input wires as per
the wiring digram
2. Unscrew the four screws
3. Install the post top to the pole
4. Secure the four screws
5. Completed
1. Connect the input wires as per
the wiring digram
2. Unscrew the four screws
3. Install the post top to the pole
4. Secure the four screws
5. Completed
