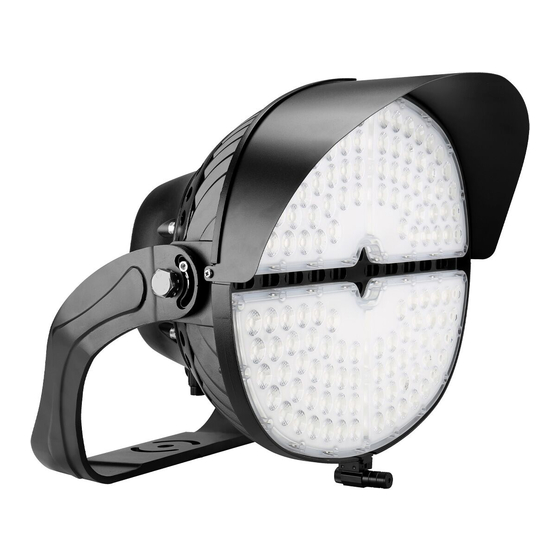

Spitzer LIGHTING ASE Quick Start Manual

ASE
Sports and High Output Flood
KEY TECHNICAL DATA
INPUT VOLTAGE 120-277V, 347-480V
CONTROL 0-10V, WIRELESS CONTROL
WORKING TEMP.
-40°F ~ 122°F
WARNINGS
• All electrical work must conform to the National Electric Code (NEC) and all applicable
local codes and ordinances.
• Only qualified personnel shall install and maintain the luminaires. Spitzer recommends
that a licensed electrician install and maintain the luminaire. Verify the safety of existing
power distribution system before beginning installation. Failure to follow Operating
Instructions may lead to death, Severe Injury, or Property Damage.
• Fixtures must be grounded and installed in accordance with the National Electrical
Code and all local codes. If you are not sure if your power system is grounded, DO NOT
install the luminaire. Contact a licensed electrician for information on proper grounding
methods as required by the electrical code. FAILURE TO FOLLOW THIS WARNING MAY
LEAD TO DEATH, SEVERE INJURY, OR PROPERTY DAMAGE.
• Turn off power and allow to cool before performing any electrical or control work.
FAILURE TO FOLLOW THIS WARNING MAY LEAD TO DEATH, SEVERE INJURY, OR
PROPERTY DAMAGE.
• DO NOT make or alter any open holes in the luminaire. Do not modify the luminaire.
• Risk of eye injury! Eye protection is required at all times during the installation,
operation, and maintenance of the luminaire. The high intensity light produced by the
luminaire can cause severe damage to the eye if viewed directly at close range. Avoid
being in front of a luminaire that is on or wear suitable light blocking protective eye wear
such as welding goggles. The luminaire should be positioned so that prolonged staring
into the luminaire at a distance closer than 10m is not expected.
• NEVER point the aiming laser at any person or animal as it can cause permanent
damage to eyes. Use laser only for aiming fixtures as directed.
• CAUTION - RISK OF FIRE
• This product is not available for several special environments, such as places with
corrosive gas liquids or high pressure water vapor.
• This luminaire is designed to operate in ambient temperatures ranging from -40 C to
55 C -40℉ to 131℉
INSTALLATION
→Before beginning installation, turn off the circuit breaker
702 Interchange Blvd, Newark DE 19711 www.spitzerlighting.com
PRE. INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts are present.

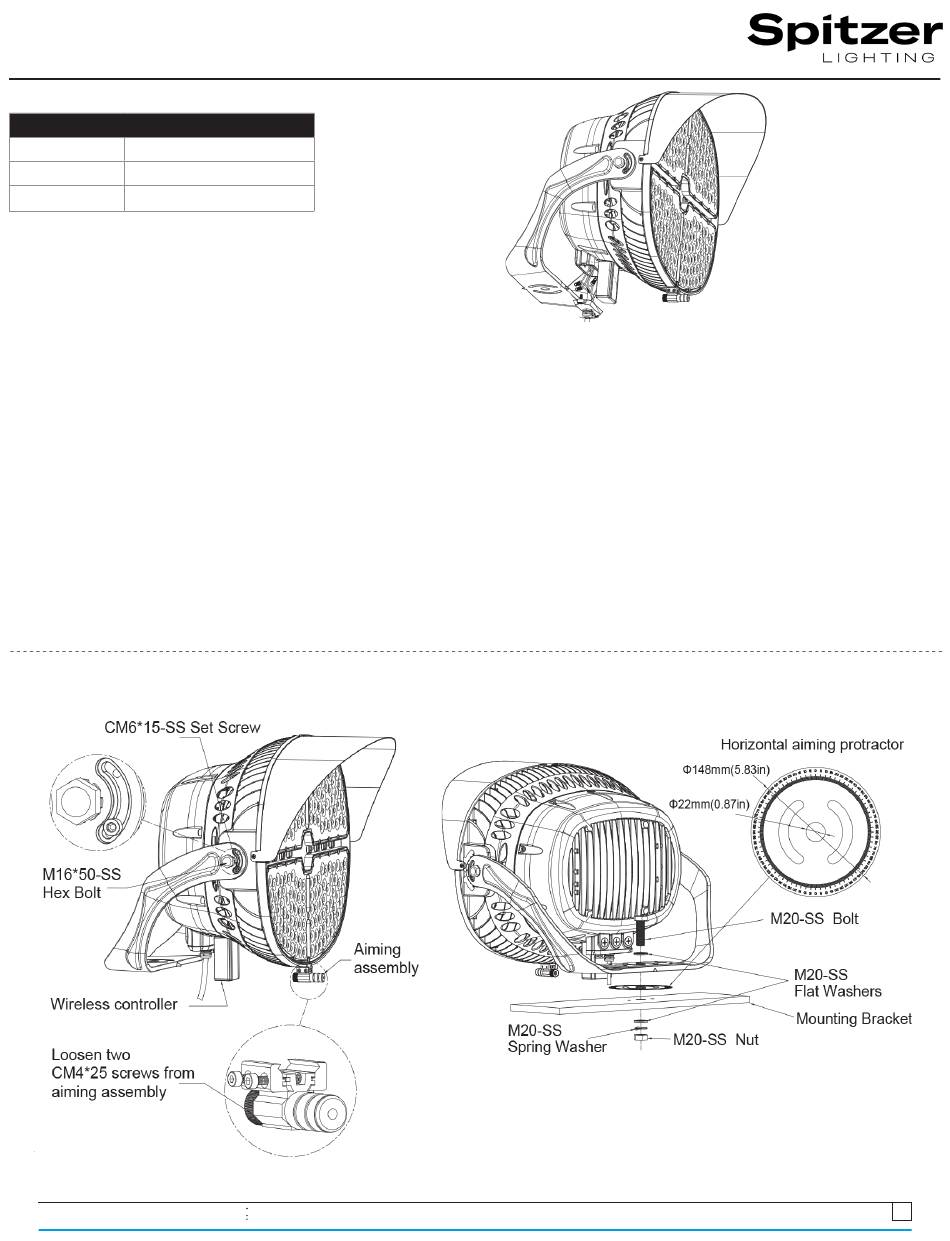

Compare parts with package contents list and diagram on previous page. If any part is missing or
damaged, do not attempt to assemble, install or operate the product. Contact customer service for
replacement parts.
• Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers, electrical tape,
wire cutters, safety glasses, ladder, wire stripper.
SAFETY INFORMATION
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to
power off. The electrical system you want to connect the device to must be grounded.
Read the instructions before using or powering this device. The safety instructions
must remain with the unit in case of transfer. Any damage to the device linked to an
inappropriate use is excluded from support by the warranty. Before connecting, make
sure that the current and voltage are compatible with this device. We highly recommend
that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by
any means for the use or misuse of the following information. We are NOT responsible in
whole or part for any harm or damage that may or may not be caused. We reserve the right
to revise the components of any product, due to part availability or change ETL, CUL, UL
standards without assuming any obligation or liability to modify any products previously
manufactured and without notice. These instructions do not cover all details of variations
in equipment, nor do they provide every possible contingency to be met. Turn off / unplug
power when installing or service device.
Installation Manual
