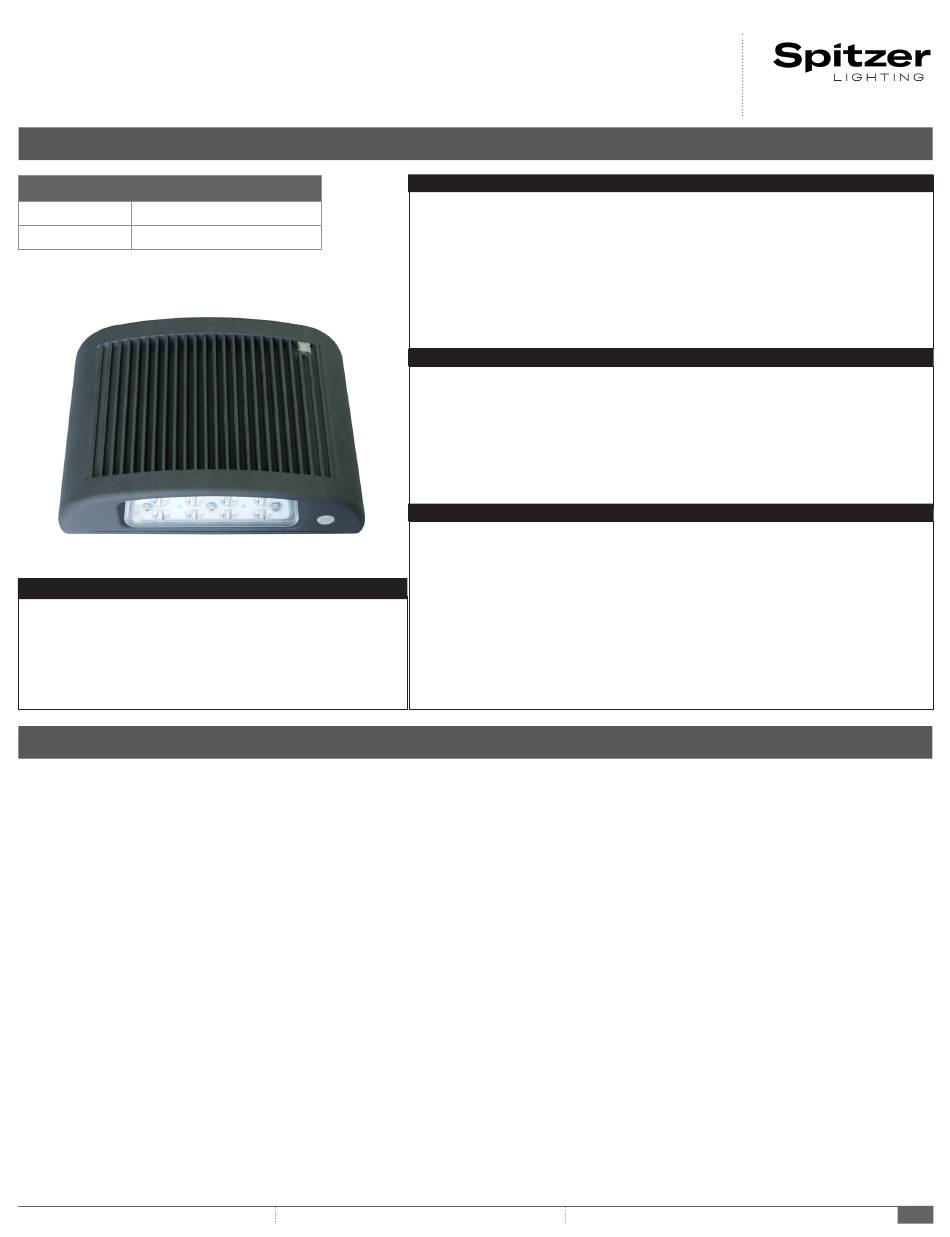

Spitzer LIGHTING EWF Series Installation Manual

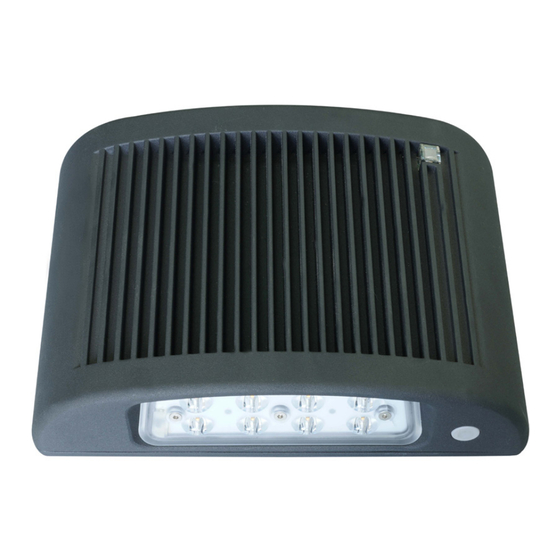

EWF SERIES
EMERGENCY OUTDOOR WALLPACK
PRODUCT PARAMETER
INPUT VOLTAGE
MOUNTING
PRE - INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts
are present. Compare parts with package contents list and diagram on previous page.
If any part is missing or damaged, do not attempt to assemble, install or operate the
product. Contact customer service for replacement parts.
• Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers,
electrical tape, wire cutters, safety glasses, ladder, wire stripper.
MAINTENANCE
Battery have to recharge if product keep in stock over 9 months,
detail manual refer "BATTERY STOCK AND RECHARGE GUIDELINE"
We recommend that the equipment be tested regularly in
accordance with local codes. Replace the batteries as needed if
discharge time do not achieve 90 minutes.
OPERATION
Press the test button. The LED heads will turn on and the LED
indicator will turn off. Release the test switch, LED indicator will
turn on and the LED heads will turn off.
TROUBLE SHOOTING GUIDE
If LED lamp or LED indicator does not illuminate, check the following:
1. Check AC supply - verify that unit has 24 hours AC supply.
2. Unit is shorted or battery is not connected.
3. Battery discharge. Permit unit to charge for 24 hours then re-test.
4. If above trouble shooting hints do not solve you problem, contact
Spitzer Lighting for assistance.
www.spitzerlighting.com
I N S T A L L A T I O N M A N U A L
120V - 277V
SURFACE
SAVE THESE INSTRUCTIONS
702 Interchange Blvd., Newark, DE 19711
SAFETY INFORMATION
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to power off. Do not perform
any operations while this unit is powered on. The electrical system you want to connect the device to must be
grounded. Read the instructions before using or powering this device. The safety instructions must remain with
the unit in case of transfer. Any damage to the device linked to an inappropriate use is excluded from support by
the warranty. Before connecting, make sure that the current and voltage are compatible with this device. We highly
recommend that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by any means for
the use or misuse of the following information. We are NOT responsible in whole or part for any harm or damage
that may or may not be caused. We reserve the right to revise the components of any product, due to part availability
or change ETL, CUL, UL standards without assuming any obligation or liability to modify any products previously
manufactured and without notice. These instructions do not cover all details of variations in equipment, nor do they
provide every possible contingency to be met. Turn off / unplug power when installing or service device.
WARNING: Read all safety precautions and installation instructions carefully before installing or servicing this
fixture. Failure to comply with these instructions could result in a potentially fatal electric shock, fire, and/or
property damage. RISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions.
Keep or give to the owner for future reference. Risk of cuts: Wear gloves to prevent cuts or abrasions when removing
from carton, handling, installing, and maintaining this product. Risk of electric shock: This product must be installed
in accordance with the applicable installation code by a person familiar with the construction and operation of the
product and the hazards involved. Risk of Fire: Minimum 194°F supply conductors. Consult a qualified electrician
to ensure correct branch circuit conductor. Spitzer Lighting assumes no responsibility for claims arising out of
improper or careless Installation
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user authority to operate the equipment.
NOTES: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
LUMINAIRE ON/OFF CONTROL FUNCTION
There are 2 kinds of ON/OFF control function for the luminaire at normal supply:
Standard(default) facility, luminare on/off control by photosensor, if ambient
Illumination< 10 lx luminaire turns on automatically, if Illumination >30 lx, luminaire turn
off. Photosensor facility can convert Wall switch control, refer "Wall Switch connection"
(Fig 5).
DISABLE PHOTO SENSOR FUNCTION
Photosensor can be removed if function is not needed.
WARNING
FCC WARNING
Specification is subject to change without notice
1/4
