Spitzer LIGHTING ASA-S Installation Manual

ASA-S

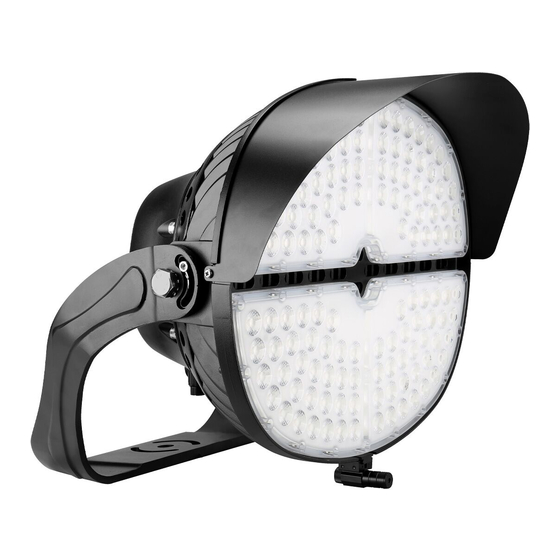

Sports Light 400W,500W,600W
KEY TECHNICAL DATA
STORAGE TEMP 40°F TO 167°F
OPERATING TEMP -20°F TO 131°F
HUMIDITY 5% TO 95% NON-CONDENSING
SAFETY INFORMATION
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to
power off. The electrical system you want to connect the device to must be grounded.
Read the instructions before using or powering this device. The safety instructions
must remain with the unit in case of transfer. Any damage to the device linked to an
inappropriate use is excluded from support by the warranty. Before connecting, make
sure that the current and voltage are compatible with this device. We highly recommend
that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by
any means for the use or misuse of the following information. We are NOT responsible in
whole or part for any harm or damage that may or may not be caused. We reserve the right
to revise the components of any product, due to part availability or change ETL, CUL, UL
standards without assuming any obligation or liability to modify any products previously
manufactured and without notice. These instructions do not cover all details of variations
in equipment, nor do they provide every possible contingency to be met. Turn off / unplug
power when installing or service device.

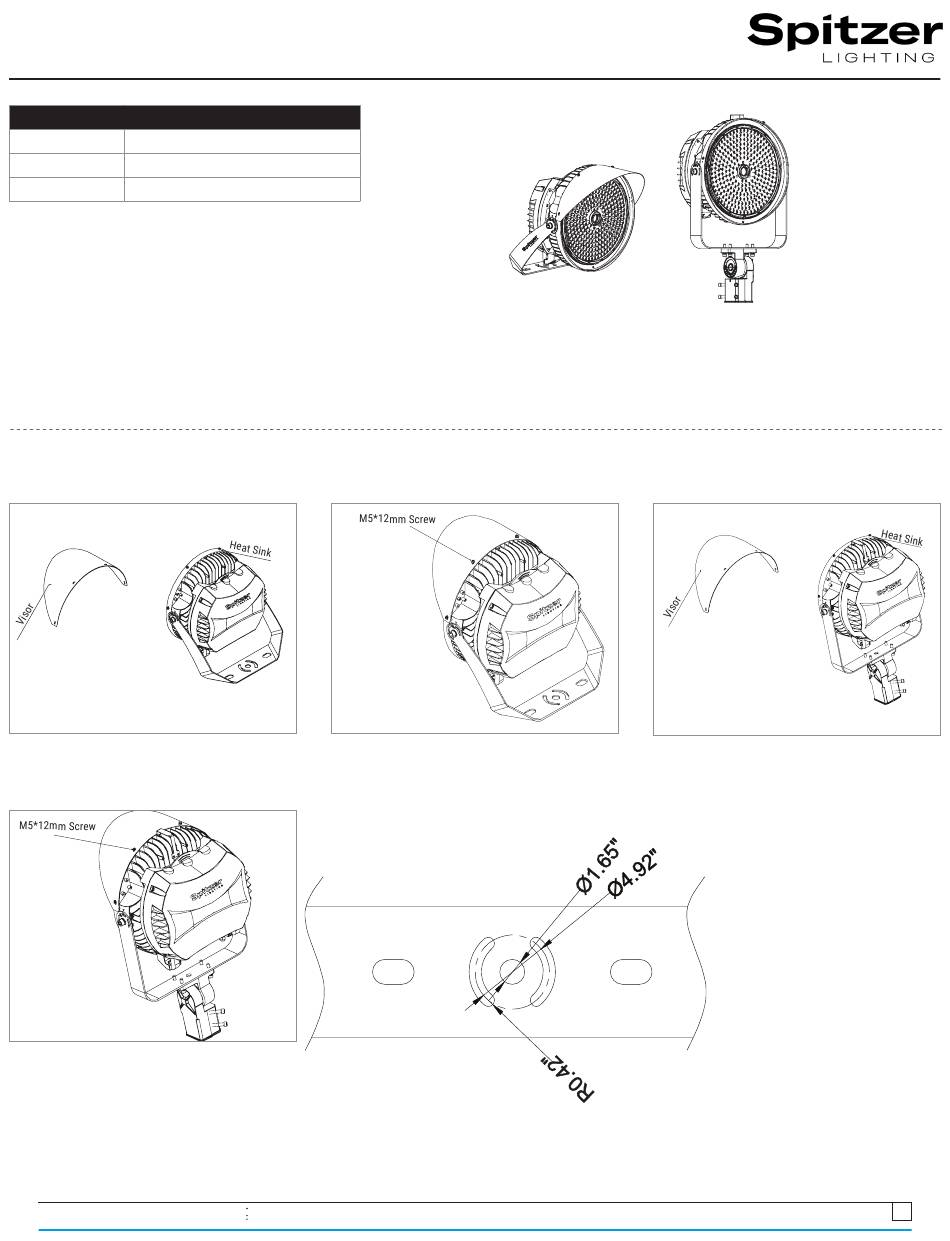

INSTALLATION
→Before beginning installation, turn off the circuit breaker
→STEP 1
Attach the visor onto the fixture body
→STEP 4
Use 5pcs of M5*12MM screw to lock the visor on the lamp body
702 Interchange Blvd, Newark DE 19711
→STEP 2
Use 5 pcs of M5*12MM screw to lock the visor on the lamp body
www.spitzerlighting.com
PRE. INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts are present.
Compare parts with package contents list and diagram on previous page. If any part is missing or
damaged, do not attempt to assemble, install or operate the product. Contact customer service for
replacement parts.
• Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers, electrical tape,
wire cutters, safety glasses, ladder, wire stripper.
→STEP 3
Attach the visor onto the fixture body
Installation Manual
→STEP 5
1. Insert M20 bolts and palin washers onto
bracket
2. Align rotatable bracket with mounting
structure
3. Secure bracket, bolts, palin & lock
washers with
mounting structure
4. Tighten the nuts hand tight so mounting
structure
is secure but do not fully torque nuts until
desired aiming is achieved
1
