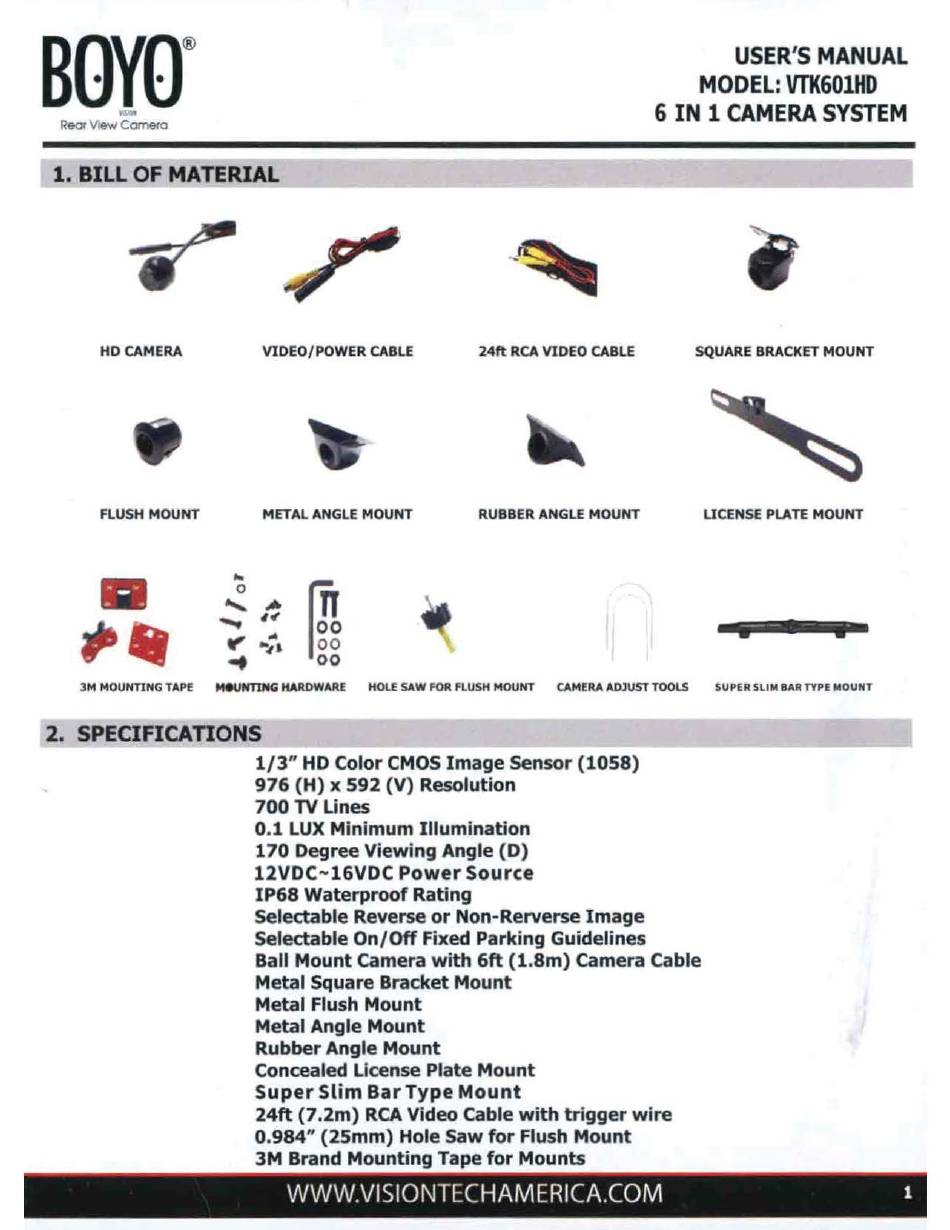

Boyo VTK601HD User Manual

BOYO®
~
Reor View Camero
USER'S MANUAL
MODEL:
VTK601HD
6 IN 1 CAMERA SYSTEM

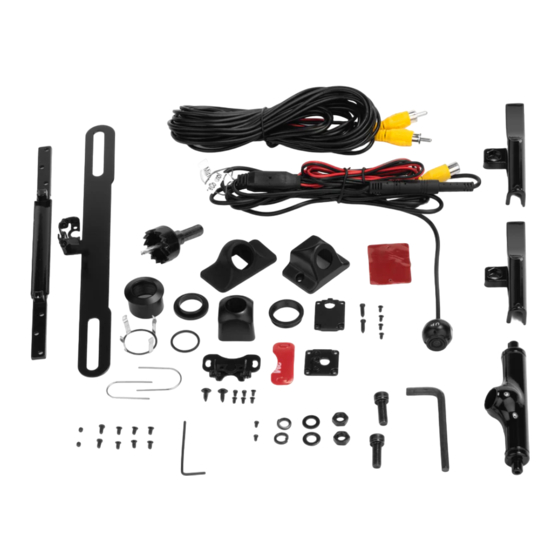

1. BILL OF MATERIAL
HD CAMERA
FLUSH MOUNT
VIDEO/ POWER CABLE
METAL ANGLE MOUNT
...
~~
fit
., .. :1
I~?
. . 0 0
24ft RCA VIDEO CABLE SQUARE BRACKET MOUNT
RUBBER ANGLE MOUNT U CENSE PLATE MOUNT
I
I
I
3M MOUNTING TAPE
MeUNTING
HARDWARE HOLE SAW FOR FLUSH MOUNT CAM ERA ADJUST TOOLS SUPER SLIM BAR TYPE MOUNT
2. SPECIFICATIONS
1/3" HD Color CMOS Image Sensor (1058)
976 (H) x 592 (V) Resolution
700 TV Lines
0.1
LUX
Minimum Illumination
170 Degree Viewing Angle (D)
12VDC~16VDC Power Source
IP68 Waterproof Rating
Selectable Reverse or Non-Rerverse Image
Selectable On/Off Fixed Parking Guidelines
Ball Mount camera with 6ft (1.8m) Camera Cable
Metal Square Bracket Mount
Metal Flush Mount
Metal Angle Mount
Rubber Angle Mount
Concealed License Plate Mount
Super Slim Bar Type
Mount
24ft (7 .2m) RCA Video Cable with trigger w ire
0.984" (25mm) Hole Saw for Flush Mount
3M Brand Mounting Tape for Mounts
WWW.VISIONTECHAMERICA.COM
1
