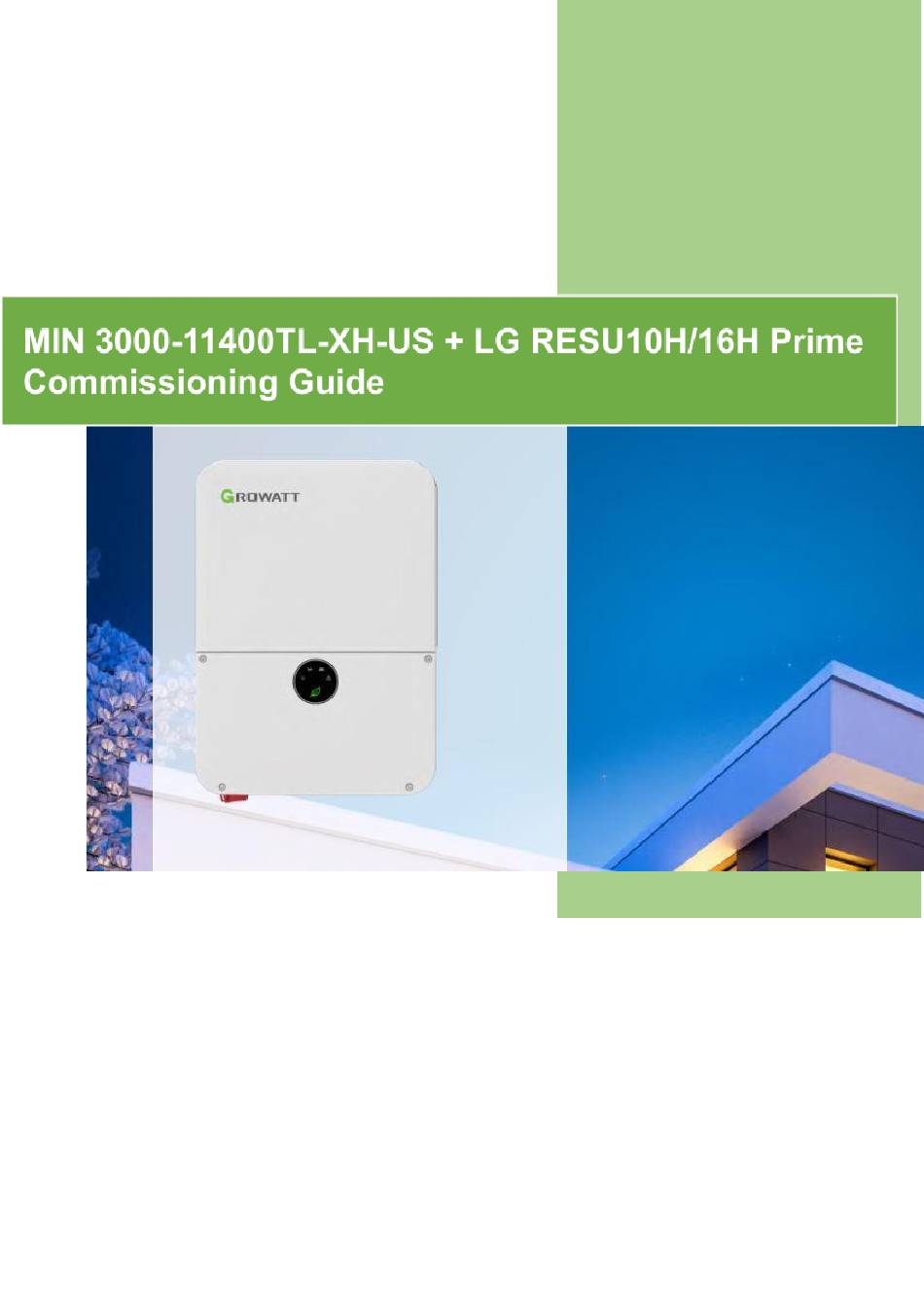

Growatt MIN 3000-TL-XH-US Commissioning Manual
  1. Manuals
  2. Brands
  3. Growatt Manuals
  4. Inverter
  5. MIN 3000TL-XH-US
  6. Commissioning manual
Growatt MIN 3000-TL-XH-US Commissioning Manual

Growatt MIN 3000-TL-XH-US Commissioning Manual

Lg resu10h/16h prime
Hide thumbs Also See for MIN 3000-TL-XH-US:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIN 3000-TL-XH-US and is the answer not in the manual?

Questions and answers

Related Manuals for Growatt MIN 3000-TL-XH-US

Summary of Contents for Growatt MIN 3000-TL-XH-US

  • Page 2: Table Of Contents

    T a b l e o f C o n t e n t s ……………………………………………………………………….. 1 . P o s t P u r c h a s e P r o c e s s …………………………………………………………... 3 2 . G e n e r a l i n f o r m a t i o n - s p e c i f i c a t i o n …...

  • Page 3: Post-Purchase Process

    ○ Use the app to register and manage your LG battery system. 2. Downloading the Required Apps for commissioning ● Growatt Shinetools or Shiner App: Available on iOS and Android. If the inverter’s box contains the following sticker, download the Shiner App.

  • Page 4: G E N E R A L I N F O R M A T I O N - S P E C I F I C A T I O N

    Unless otherwise agreed, this document is intended as a guide only. All information and suggestions do not constitute an express or implied warranty. The final interpretation of the content is at GROWATT. c. This document is for quick guidance installation only. For details, please refer to the User Manual.

  • Page 5: I N S T A L L A T I O N

    3 . I n s t a l l a t i o n 3.1 System Overview Whole Home Backup the SYN 200XH-US+MIN-XH-US is designed for a whole-home backup application only. N O T E : Meaning the line side of the SYN must connect to the service conductors the MIN TL-XH-US inverter has a built-in Tigo/APS rapid shutdown (RSD) Transmitter.

  • Page 6: Installation Requirements

    TOU rate arbitrage 3.2 Installation requirements...

  • Page 7: Wall Mounting

    3.3 Wall mounting 4 . E l e c t r i c a l c o n n e c t i o n s please make sure all switches are OFF before wiring N O T E : 4.1 Grounding and AC connections...

  • Page 8: Dc Connections

    1. Strip 0.7 inches (18mm) of the AC cable insulation. 2. Complete conduit runs. ● K/Os are 3/4”, Comms are 1/2” AC + DC K/Os can be enlarged up to 1” ● 3. Insert a small screwdriver and press the release mechanism to open the clamp. 4.

  • Page 9: Battery Electrical Wiring Connection

    4 . 2 . 2 B a t t e r y e l e c t r i c a l w i r i n g c o n n e c t i o n make sure the MIN-XH-US inverter includes the 4 .
  • Page 10 C l a m p i n g p o s i t i o n A s s i g n m e n t C l a m p i n g p o s i t i o n BAT+ BAT- P l e a s e r e f e r t o t h e f o l l o w i n g f o r t h e e l e c t r i c a l c o n n e c t i o n o f t h e p a r a l l e l s y s t e m .
  • Page 11 Battery 1 DC wires Battery 2 DC wires If convenient, installers may also use a combiner box or polaris taps to parallel the output N O T E : of both batteries to the bottom set of battery terminals in the inverter...

  • Page 12: Battery Communication Cables Installation

    4.3 Battery communication cables installation 4 . 3 . 1 B a t t e r y - i n v e r t e r c o m m u n i c a t i o n c a b l e c o n n e c t i o n 1.

  • Page 13: Parallel Battery Communication Cable Connection

    4 . 3 . 3 P a r a l l e l b a t t e r y c o m m u n i c a t i o n c a b l e c o n n e c t i o n When connecting a second RESU Prime battery, set the DIP switches accordingly.

  • Page 14: Communication Cables Installation Between Min Inverter To Syn-200-Xh-Us

    This means both the incoming communication cable from the Primary Pack and the outgoing cable to the inverter share the same port on the Secondary Pack’s communication terminal, as shown in the diagram above. This configuration ensures proper communication flow from the Primary Pack through the Secondary Pack to the inverter, maintaining system stability and functionality.

  • Page 15: Installing The Antenna

    4.5 Installing the Antenna Install Wi-Fi and 4G antenna included in the accessory bag. 4.6 Installing SYN-200-XH-US 4 . 6 . 1 C o n n e c t i n g M I N - X H - U S i n v e r t e r t o S Y N 1.

  • Page 16: Connecting Syn To Service Conductors And Load Panel

    4 . 6 . 2 C o n n e c t i n g S Y N t o s e r v i c e c o n d u c t o r s a n d l o a d p a n e l 1.
  • Page 17 4.7 Installing SM-200-US The SM-200-US measures the power running at the location of the CTs. It provides real-time information to the inverter to manage instantaneous power flow from the system to the local loads or grid. Therefore, correct location of the CTs is important. K n o w b e f o r e i n s t a l l i n g : 1.
  • Page 18 2. Install CTs: a. Turn off AC power before clamping on current transformers. b. Install the CTs around the conductor to be measured. Split-core CTs can be opened for installation around a conductor. A nylon cable tie may be secured around the CT to prevent accidental opening.

  • Page 19: C H E C K B E F O R E P O W E R I N G

    b. Insert the 4-pin terminal block into the socket on the meter, making sure it is fully seated in the meter. 5. Connect the RS485 twisted pair cable to the 4-pin terminal block (block2): a. Insert the wires through the appropriate conduit and the knockout that was opened.
  • Page 20 3. Growatt OSS Installer Account Creation: Installer Account There are two ways of creating an account in oss.growatt.com 1. The distributor has the option to create installer OSS accounts for their clients following the next steps: Login► System Set►+Add installer► fill in the necessary info...
  • Page 21 2. The installer can create an account for itself, following the next: Go to oss.growatt.com ► Register ►Installer► Agree the terms ► Confirm► fill in the necessary information► record username and password In both ways, the system will show you the installer code, and the logging account code, which then will be needed for logging.
  • Page 22 5. Return to the Shinetools app and log in using OSS credentials as an O&M user 6. Once logged in, go to click the the top right icon and click “Quick Site Setup” 7. Tap “Server User” and select end user account, then hit Next 8.
  • Page 23 9. In step 3, scan the datalogger and device SN and wait for confirmation 10. In step 4, upgrade FW as needed on all devices (2 FW files for inverter, 1 FW file for SYN, and 1 for battery). If you skip this step, you’ll be able to upgrade later. 11.
  • Page 24 : the grid profile is defined by the electric utility. If the utility requires a profile that’s N O T E not available in the dropdown list, please contact Growatt technical support some utility grid profiles may require an inverter ZACA firmware upgrade N O T E : 13.
  • Page 25 14. Verify appropriate power flow in the power flow diagram according to EMS mode by tapping Real Time Data icon in the home screen E M S m o d e s d e s c r i p t i o n : 1 .
  • Page 26 The battery charges only from solar energy and remains fully charged in H o w i t w o r k s : case of a power outage. If solar power exceeds the battery’s charging capacity, extra solar power is used to support home energy needs. Ensuring backup power for outages while keeping electricity costs low by B e s t f o r : charging only from solar.
  • Page 27 d. Once chosen, add time periods and EMS mode. There are three options for adding time periods (weekday, weekend and week) e. Check and confirm final schedule...
  • Page 28 To commission the system using the Shiner app, enter the same login credentials created in the OSS portal. If you are a new installer and don’t have an OSS account, contact Growatt customer service at +1 866-686-0298 or email usaservice@ginverter.com, to create an account.
  • Page 29 Connect to Your Device 6.2.3 Turn on Bluetooth Please make sure that your phone's Bluetooth is turned on. 6.2.4 Connect to the Inverter 1) Once signed in, select the inverter you want to configure from the list of devices connected to the Shiner.
  • Page 30 Function Description Search If you have multiple devices, you can enter the device’s serial number (SN) to search for the device. Refresh Click to obtain real-time device information and signal strength. 2）Enter the pin/CC code for this device. The pin code of each device is affixed to the side of the inverter, as shown below:...
  • Page 31 6.2.5 Check and Upgrade the Firmware If you can successfully access the device, the Shiner will detect the current inverter version information automatically. If the detected version is lower than the version in use, it will prompt the user to upgrade the firmware.
  • Page 32 To ensure the consistency and advancement of functions, we recommend that you choose to upgrade the firmware immediately. All devices upgrade process takes approximately 30 minutes. However, it takes less than 5 minutes for the APP to transfer the new firmware to the inverter.

  • Page 33: Quick Config

    6.2.6 Quick Config After the firmware upgrade process is completed, you’ll be directed to the Home Page.You can use the Quick Config function to quickly set up the inverter. At the same time, the Shiner will provide prompts indicating the status of each setup step. 6.2.7 Inverter Wi-Fi Configuration...
  • Page 34 Select the Wi-Fi you want to connect to and enter the password to complete the connection. 6.2.8 4G cellular (optional) If your inverter has the 4G cellular function, you need to activate it before it can function properly. 6.2.9 Bind Site On this page, you can bind this device to your installer account and select a site.
  • Page 35 6.2.10 Grid Profile Settings Set your grid connection information.

  • Page 36: Smart Meter

    6.2.11 Smart Meter Enable the Smart Meter and set export limit configuration (if required by utility).
  • Page 37 6.2.12 Pre-PTO You can choose to enable or disable the Pre-PTO mode. In Pre-PTO mode, the system will disable all active power output and will only charge the batteries from available PV...
  • Page 38 6.2.13 Set EMS settings With these settings, you can configure settings such as battery type, operating mode, and more Battery mode setup: 1 . S e l f - C o n s u m p t i o n This mode minimizes grid power usage.
  • Page 39 Preparing for possible power outages or taking advantage of low electricity rates for B e s t f o r : charging. 3 . G r i d F i r s t The system delivers maximum power output by using both solar and battery H o w i t w o r k s : energy.
  • Page 40 6.2.14 Time of Use schedule configuration The "Time of Use" feature enables you to customize the TOU (Time of Use) schedule by setting the start time and end time, specifying whether it applies on weekdays or non-workdays, and selecting the desired mode for each time segment. Step 1: Go to “Setting”, select EMS, and change the Quick Battery Mode Setup to “Disable”...
  • Page 41 Step 2: Create a new TOU Scheduler.
  • Page 43 Step 3: Personalize your settings. You can add more time segments and configure the yimr periods. Select your battery mode Set your end time Set your start time Select your start date and end dates. Step 3: Save your changes. 6.2.15 Grid Profile Settings Report In some cases, the utilities require a grid profile settings report for the specific inverter installation to make sure all settings comply with their required values.
  • Page 44 If you are an iPhone user, you can choose your preferred export path.
  • Page 45 First, select the export path. Second, click Save.
  • Page 46 Finally, you can find the PDF in the path you selected. 6.2.16 Installation Information Report You can view the device's installation information on this interface, including basic parameter information, network information, and operational information. You can also click Export PDF to export the Information. The PDF document will be saved in your file management.
  • Page 47 6.2.17 Home Page On the Home Page, you can view detailed information about the inverter, battery, meter and other devices. Click on the relevant item to access detailed monitoring parameters or settings.

  • Page 48: End User Account Creation & Connection

    7. End User Account Creation & Connection If you are an end user, need to create an account using the “Create A Growatt Account” option in the Shiner App 7.1 Create Your Site Before connecting to the device, create a site first. If no site has been created, you will...
  • Page 49 Click Manage Your Site and click the plus sign to add a new site. Enter the site information and click Create to save it.

  • Page 50: Connect To Your Inverter

    After successfully creating the site, you can see it listed on the Manage Site page and in the upper left corner of the Home Page. 7.2 Connect to Your Inverter Click the Plus icon in the upper right corner of the Home Page and click Add Device to connect to the inverter.

  • Page 51: Settings

    Site/Home Page After connecting to the inverter successfully, you can view the electricity statistics, real-time power generation and consumption, as well as the remaining battery power on the Site/Home Page. 7.3 Settings...

  • Page 52: Alert List

    On this page, you can set your control mode and customize your battery schedule using the TOU (Time of Use) settings based on your specific needs for different time periods. For details, please refer to Chapters 11.1 and 11.2. Figure13-9 7.4 Alerts List On this page, you can check the Fault and Warning information by time.

  • Page 53: S T A T U S O F T H E I N V E R T E R

    1) Ensure there are no error codes on the homepage of the Shiner or ShineTools applications. If there are any codes, see the Growatt user manual to help troubleshoot, or contact customer support directly. 2) Ensure the inverter, PV, and battery are left on and in the desired operational mode.
