TRANSIT Ultimate | quick reference guide

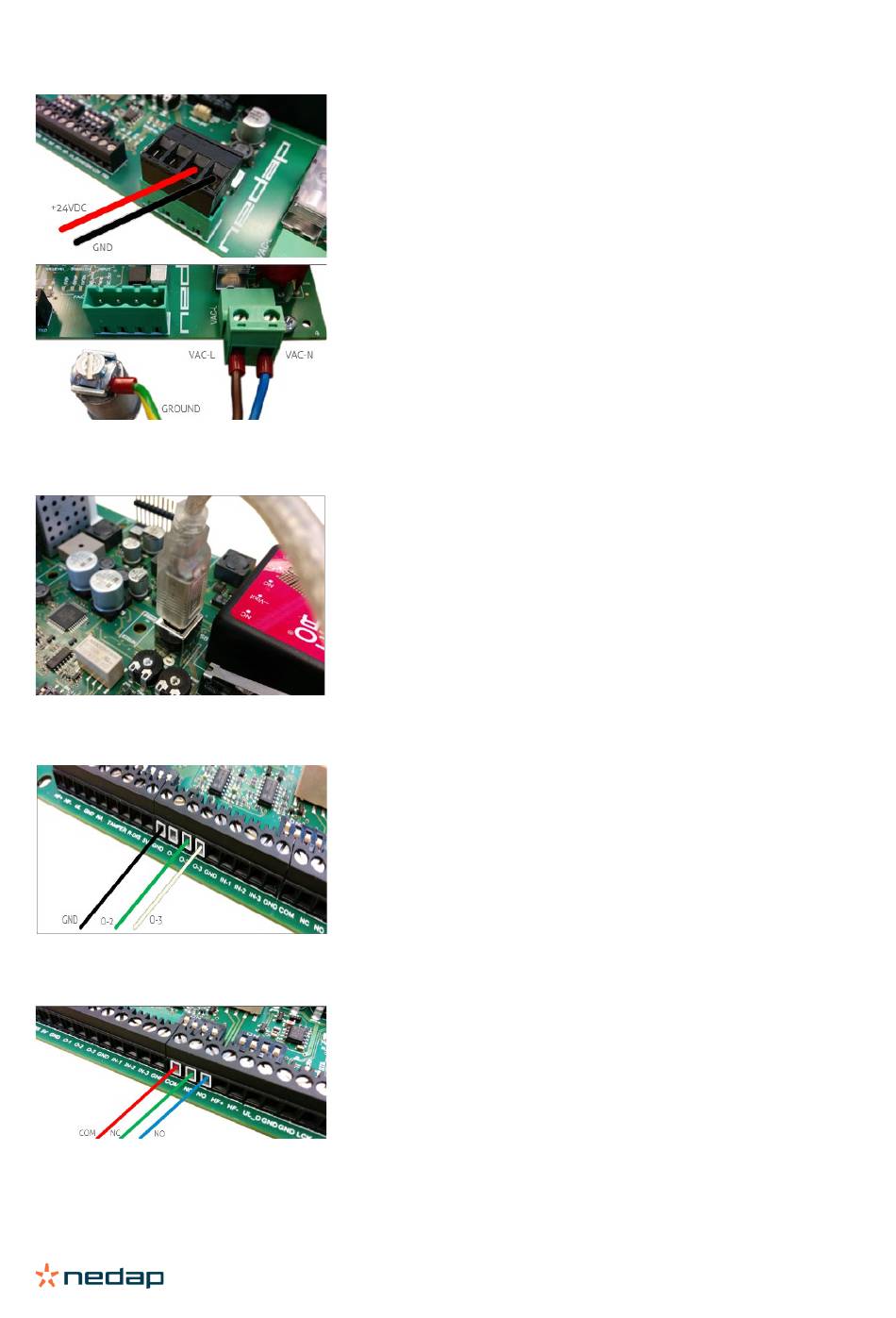

Power supply

USB
Wiegand / Magstripe / Barcode

Relay output

24 VDC
Power supply*: 24VDC +/- 10%, 700mA.
*
DC supply shall be capable of delivering a 1 A inrush current.
Cable spec: 2 x 1.5 mm
Max length: according to local regulations.
Mains
100-240VAC +/- 10%, 100 mA, 50/60 Hz
Cable spec: 3 x 0.75 mm
Max length: according to local regulations.
The TRANSIT Ultimate features an USB interface for service and
installation purposes. FTDI USB Virtual Com Port driver available.
While the USB interface is in use, the optional communication
interface board is disabled.
Connections Wiegand
O-1 -
O-2 Data-0 (green)
O-3 Data-1 (white)
GND Ground (black)
Cable spec: 4 x 0.25mm
Max length: 150 meter
Connections
NO Relay contact normally open
NC Relay contact normally closed
COM Relay contact common
Max. switching current:
Max. switching voltage:
Max. switching power:
(2 x 15 AWG).
2
(3 x 18 AWG).
2
Magstripe Barcode
Card Loaded -
Clock -
Data Data
Ground Ground
shielded (4 x24 AWG).
2
2A
24VDC
50W
