TRANSIT Ultimate | installation guide
4.2 Power supply
The TRANSIT Ultimate can be powered by AC mains or by a 24 VDC power supply.
4.2.1 AC mains
Connect the Mains load and neutral wires to the connector terminals VAC-L and VAC-N. The earth wire should be
connected to the dedicated safety ground connection.
Input voltage:
100 – 240 VAC
Frequency:
60 – 50 Hz

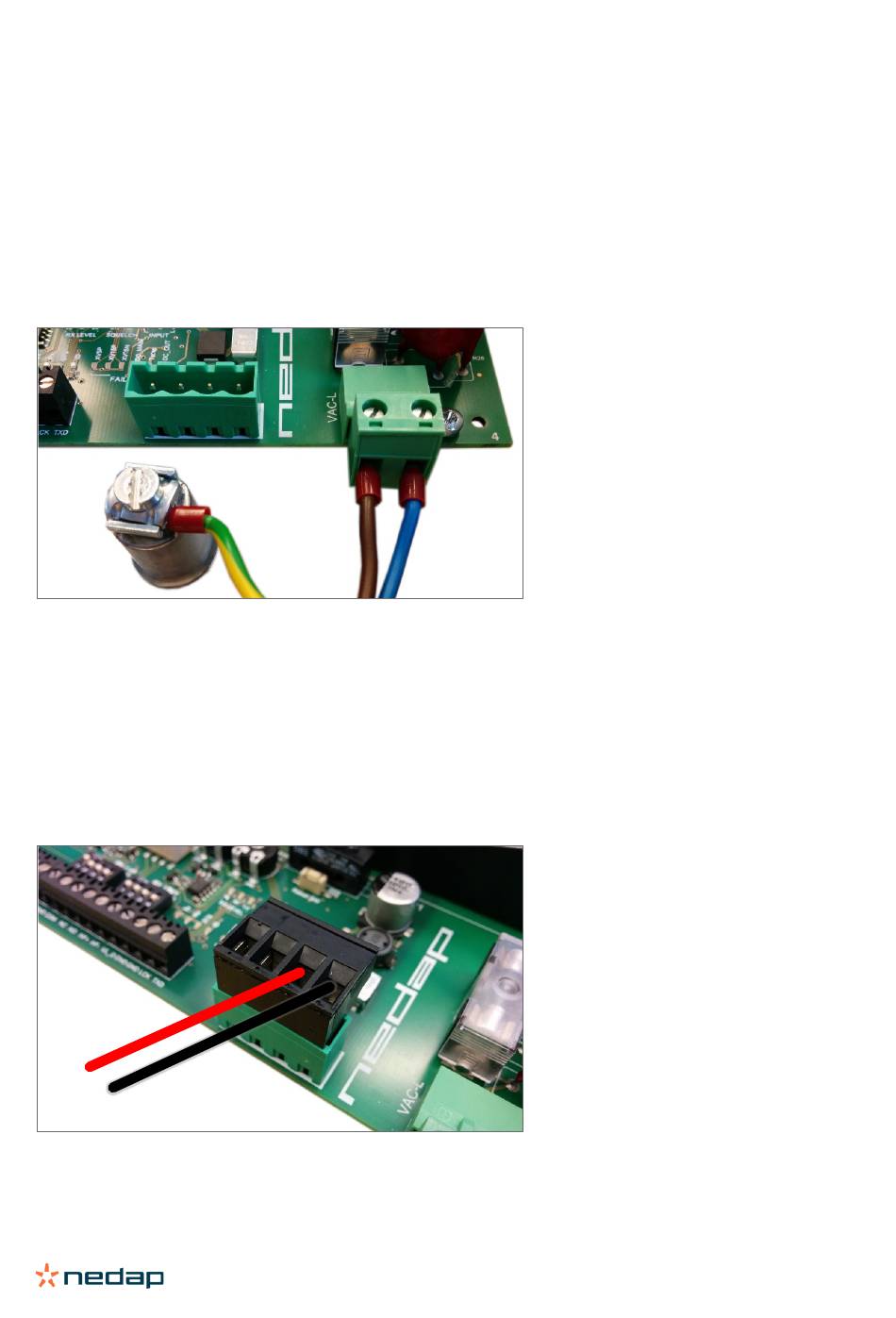

Figure 12: AC mains connections
4.2.2 DC supply input
Connect the DC power supply to the connector terminals as indicated below.
Remove the connector for easy fixing the wires.
Input voltage:
24 VDC ± 10%
Max. input current: 700 mA @ 24 VDC
+24VDC
GND
Figure 13: DC input connections
VAC-L
GROUND
VAC-N
17/40
