TRANSIT Ultimate | quick reference guide

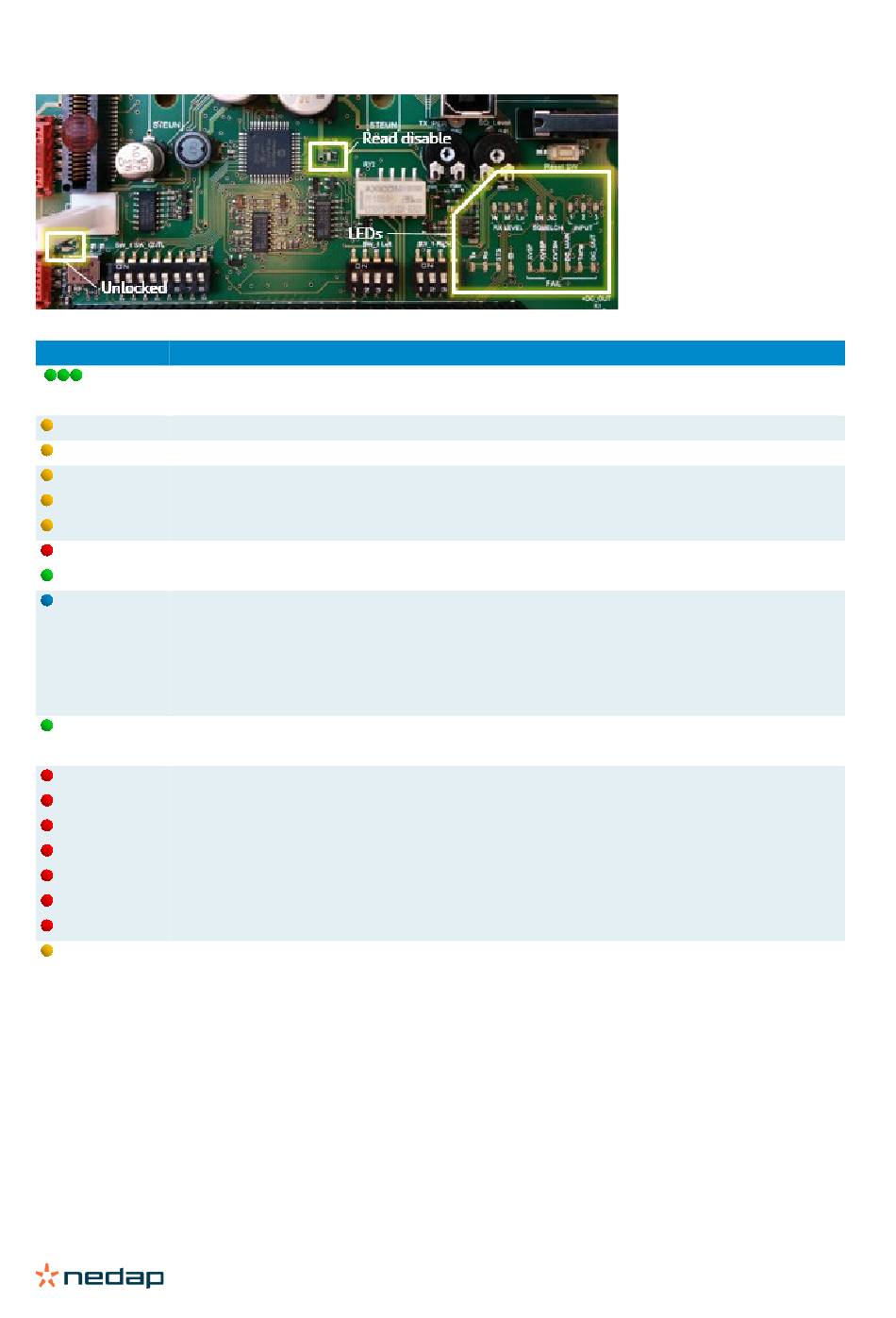

LED indications

Led Description
RX_LEVEL LED bar indicating the received microwave tag signal strength. This LED bar also indicates the
presence of radio interference. In case of interference, try switching to a different frequency.
SQ-EN Squelch enabled.
SQ-ACT Squelch active.
INPUT-1 Input 1 status. On when contact is closed.
INPUT-2 Input 2 status. On when contact is closed.
INPUT-3 Input 3 status. On when contact is closed.
Tx Transmit serial data (USB, I/F-board).
Rx Receive serial data (USB, I/F-board).
STS-LED TRANSIT firmware status LED (PIC)
Slow blinking:
Fast blinking:
Twice blinking:
Off:
ID-LED TRANSIT identification. Blinks fast upon valid tag.
When no identification check dip-switches and customer-code.
FAIL-XV5P Power supply failure +5V.
FAIL-XV15P Power supply failure +15V.
FAIL-XV15N Power supply failure -15V.
FAIL-C_MAIN Power supply failure DC-MAIN.
FAIL-Temp Temperature critically high.
FAIL-DC_OUT DC OUTPUT overload.
Unlocked PLL unlocked. Check flat cable connections. Try switching to a different frequency.
Read disable Read disable LED. On when RDIS input active and reading disabled.
Heartbeat (0.8s on / 0.8s off)
Boot loader active. Indicated after restart.
Configuration menu active.
Abnormal situation.
