TRANSIT Ultimate | quick reference guide

Safety precautions

The following safety precautions should be observed during normal use, service and repair:
The TRANSIT Ultimate shall be connected to safety ground.
•
Disconnecting from (mains) power supply before removing any parts.
•
The TRANSIT Ultimate shall only be installed and serviced by qualified service personnel.
•
To be sure of safety, do not modify or add anything other indicated by NEDAP N.V.
•

Installation

TRANSIT Ultimate is IP66 rated and allow for operating temperatures from -30°C – +60°C.
LANDSCAPE
Horizontal: beam width 80 degrees, default orientation.
The hinges should be on top of the reader.
Dimensions

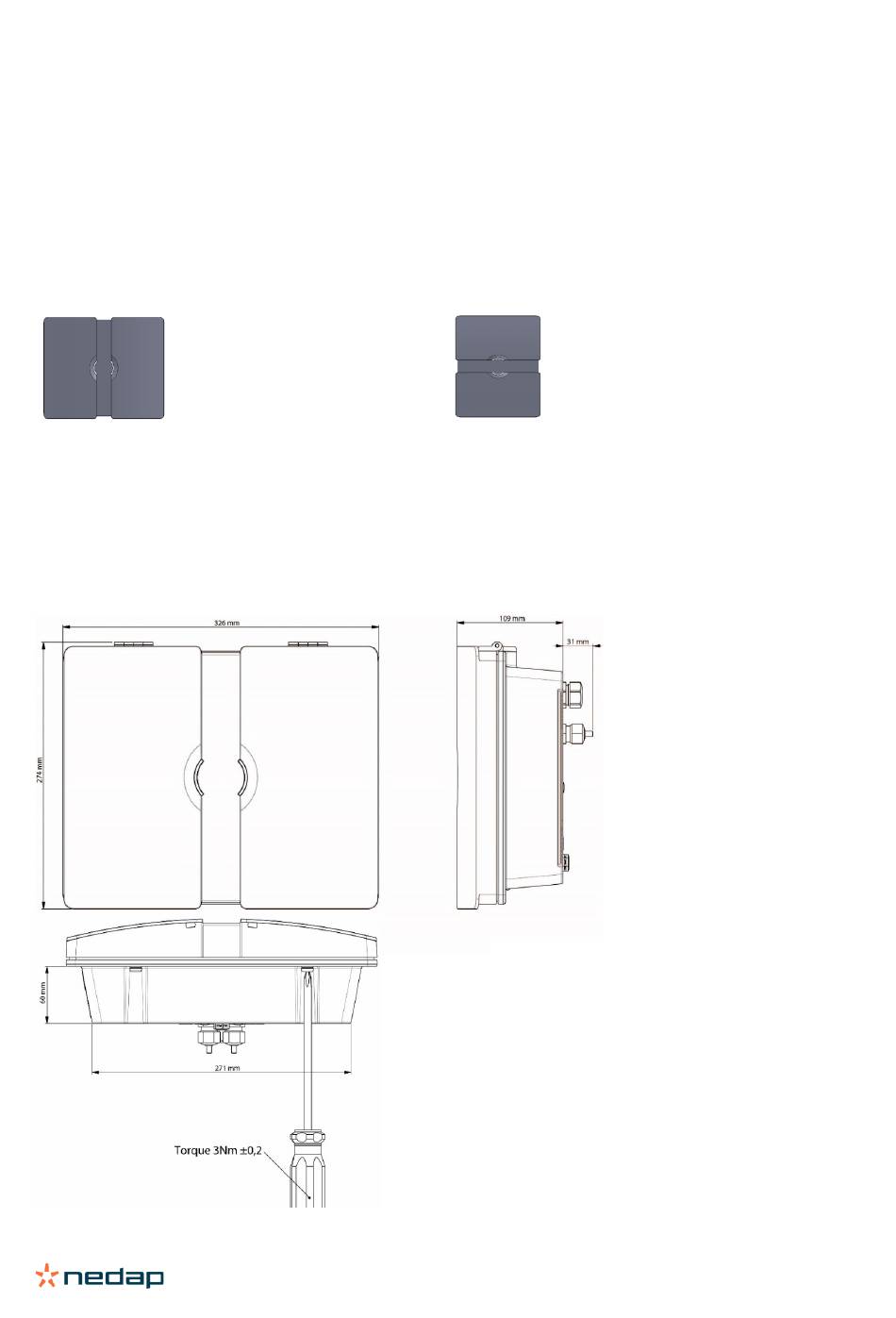

The picture below shows the dimensions of the TRANSIT Ultimate. All dimensions are in mm.
PORTRAIT
Vertical: beam width 40 degrees. Recommended for
multilane installations to avoid cross over reads.
Cover: ABS
Housing: Die-cast ADC12
Weight: 5 kg
To guarantee water tightness in all positions,
the cover screws and the cable glands have to
be tightened according our recommendations.
