TRANSIT Ultimate | quick reference guide

Frequency setting

The TRANSIT Ultimate reader operates in the 2.45GHz ISM frequency band.
When two or more readers are within a range of 15 meters (50 feet), these readers should be set on a different
operating frequency. It may also be required to select a different frequency to avoid disturbance between the TRANSIT
Ultimate and other 2.45GHz equipment, such as Wi-Fi access points.
DOWN DISPLAY

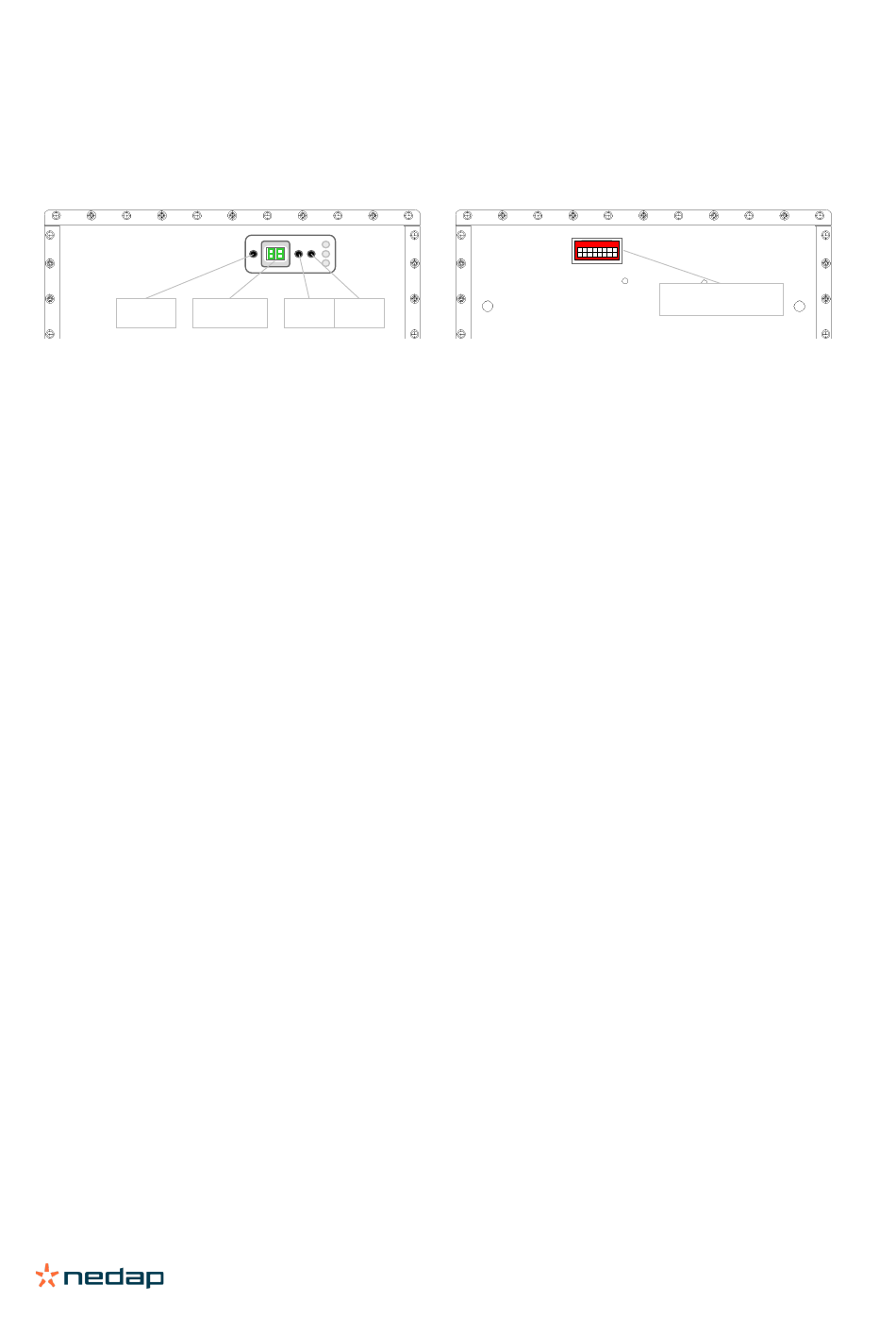

The frequency channel is selected on the transceiver board which is located in the front cover of the reader. Select the
frequency channel using a display & push-buttons or using dip-switches.
Display value Frequency (GHz)
4C 2.4360
4D 2.4366
4E 2.4372
4F 2.4378
50 2.4384
51 2.4390
52 2.4396
53 2.4402
54 2.4408
55 2.4414
56 2.4420
57 2.4426
58 2.4432
59 2.4438
5A 2.4444
5B 2.4450
5C 2.4456
5D 2.4462
5E 2.4468
5F 2.4474
60 2.4480
61 2.4486
62 2.4492
63 2.4498
64 2.4504
65 2.4510
66 2.4516
67 2.4522
68 2.4528
69 2.4534
6A 2.4540
6B 2.4546
6C 2.4552
6D 2.4558
6E 2.4564
6F 2.4570
70 2.4576
71 2.4582
72 2.4588
73 2.4594
UP RST
S1 S2 S3
- - -
- - -
- - -
- - -
ON ON ON
OFF ON ON
ON OFF ON
OFF OFF ON
ON ON OFF
OFF ON OFF
ON OFF OFF
OFF OFF OFF
ON ON ON
OFF ON ON
ON OFF ON
OFF OFF ON
ON ON OFF
OFF ON OFF
ON OFF OFF
OFF OFF OFF
ON ON ON
OFF ON ON
ON OFF ON
OFF OFF ON
ON ON OFF
OFF ON OFF
ON OFF OFF
OFF OFF OFF
ON ON ON
OFF ON ON
ON OFF ON
OFF OFF ON
ON ON OFF
OFF ON OFF
ON OFF OFF
OFF OFF OFF
- - -
- - -
- - -
- - -
1 2 3 4 5 6 7
DIP-SWITCHES
S4 S5 Wi-Fi
- -
- -
- - CH6
- -
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON CH7
ON ON
OFF ON
OFF ON
OFF ON
OFF ON
OFF ON
OFF ON
OFF ON
OFF ON CH8
ON OFF
ON OFF
ON OFF
ON OFF
ON OFF
ON OFF
ON OFF
ON OFF CH9
OFF OFF
OFF OFF
OFF OFF
OFF OFF
OFF OFF
OFF OFF
OFF OFF
OFF OFF CH10
- -
- -
- -
- -
ETSI FCC
-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

 
 
 
 
 
 
 
 
 
 
 
 
 
-

-

-

-

-

-

-

-

-

-

5/6
