TRANSIT Ultimate | quick reference guide
74
2.4600
75
2.4606
76
2.4612
77
2.4618
78
2.4624
79
2.4630
7A
2.4636
7B
2.4642
The selected frequency has to comply with local radio regulations.
ETSI frequency range from 2.446 to 2.454 GHz.
FCC frequency range from 2.435 to 2.465 GHz.

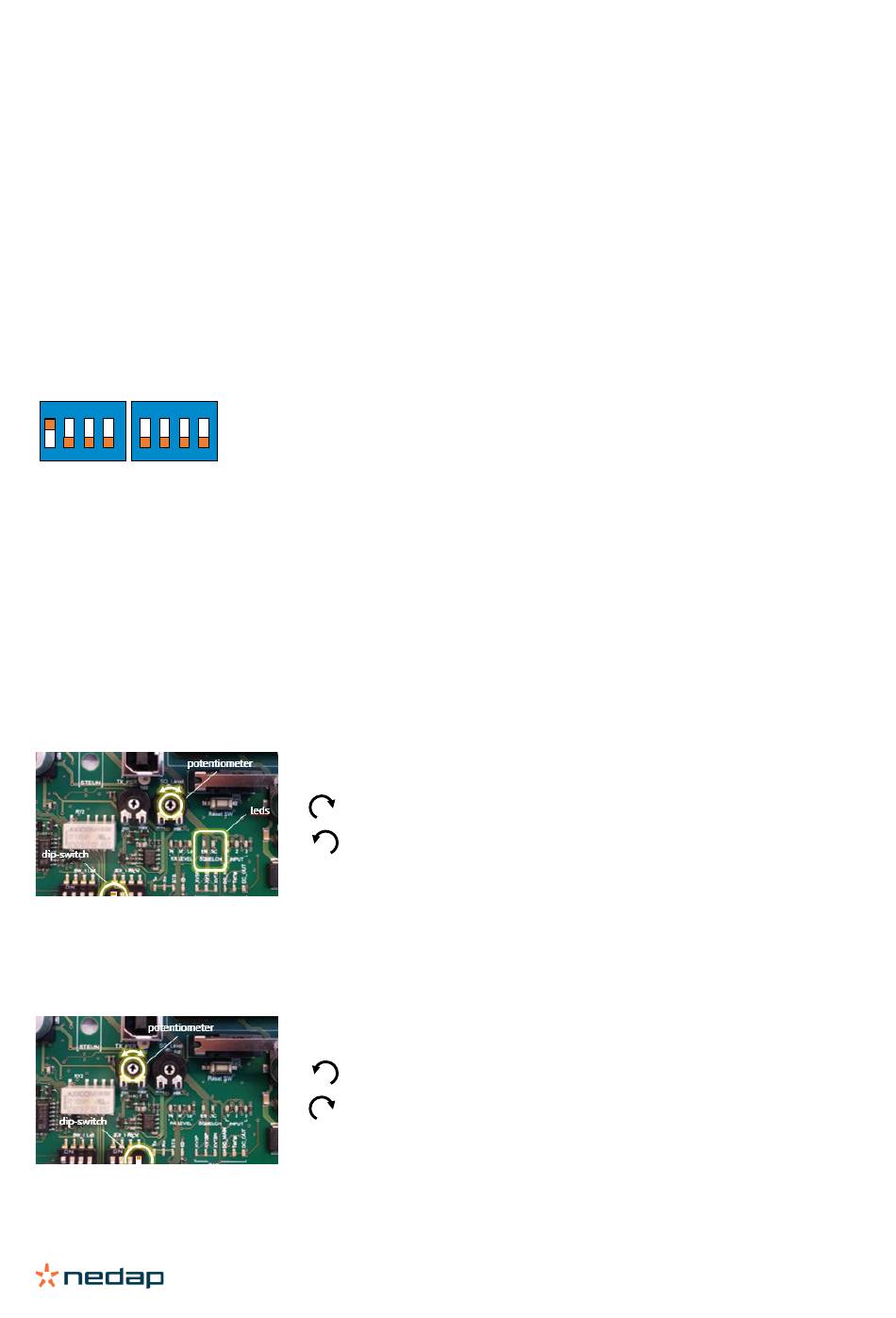

DIP-switches
SW2
SW3
ON
ON
1
2
3
4
1
2
3
4
SW2-1 ON = TRANSIT communication
SW2-1 OFF = Test communication (TAB)
SW2-2 ON = ULTIMATE-mode
SW2-2 OFF = NORMAL-mode (TAB bypass)
SW2-4 ON = Range beeper ON
SW2-4 OFF = Range beeper OFF
Read range control
SW3-1 ON = Squelch enable
SW3-1 OFF = Squelch disabled. Maximum read range.
Time sharing
SW3-4 ON = Microwave time-sharing (periodically on)
SW3-4 OFF = Microwave continuously-on
-
-
-
-
-
-
-
-
(*) default settings
SQ-Level potentiometer clockwise Long read range.
SQ-Level potentiometer counter clockwise Short read range.
TX-PER potentiometer counter-clockwise Short off (500 ms).
TX-PER potentiometer clockwise Long off (5 s).
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
CH11
-
-
-
-
-
-
-
-
-
6/6
