Grandstream Networks, Inc.

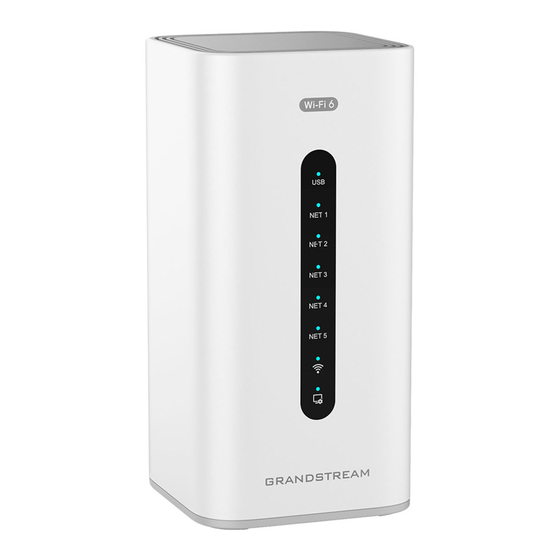

GCC6000 Series
GCC601x(W) – User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the GCC6000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Grandstream Networks GCC6000 Series

Summary of Contents for Grandstream Networks GCC6000 Series

  • Page 1 Grandstream Networks, Inc. GCC6000 Series GCC601x(W) – User Manual...

  • Page 2: Product Overview

    GCC601X(W) series are defined as mid-range all-in-one convergence devices. Integrates VPN Router, NGFW, Switch or Wi-Fi AP, and IP PBX, covering the collaborative office capabilities of data communication and UC audio and video service. Featuring GbE RJ-45 and SFP ports, it enables high-speed multi-WAN port connectivity for enterprises. This series is convenient and fast to deploy and manage through the local simple Web UI, GDMS, mobile APP, or console.
  • Page 3 Connection Type DHCP, Static IP, PPPoE, PPTP, L2TP IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE Network Protocols 802.3x,IEEE802.3ab VLAN, TOS Support multiple traffic classes, filter by port, IP address, DSCP, and policing App QoS: Application/protocol monitoring and traffic statistics VoIP Prioritization DDNS, Port Forwarding, DMZ, UPnP, DoS &...
  • Page 4 Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax 3 individual internal antennas ( 2 x dual band + 1 x Single band 5G) Antennas 2.4GHz: maximum gain 4.5dBi 5 GHz: maximum gain 5dBi IEEE 802.11ax: 7.3 Mbps to 3603 Mbps IEEE 802.11ac: 6.5 Mbps to 2600 Mbps IEEE 802.11n: 6.5 Mbps to 450 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G:...
  • Page 5 External Storage Router 3Gbps IPsec VPN Throughput 1Gbps NAT Sessions 160K IDS/IPS 900Mbps 12 users and 4 concurrent calls by default Upgrades available for purchase (See more for PBX capacity upgrade options) Mounting Desktop Material Plastic Mini-Tower LEDs 9 x LEDs for device tracking and status indication Connection Type DHCP, Static IP, PPPoE, PPTP, L2TP IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE...
  • Page 6 Operation: 0°C to 45°C Environmental Storage: -30°C to 60°C Humidity: 5% to 95% Non-condensing Unit Dimension: 95 x 95 x 193 mm Unit Weight: 565g Physical Entire Package Dimension: 186 x 127 x 105 mm Entire Package Weight: 920g Package Content GCC6010W, Universal Power Supply, Quick Installation Guide Compliance FCC, CE, RCM, IC...

  • Page 7: Installation

    • IPsec VPN Client-to-Site / Site-to-Site • IPSec Encryption: 3DES, AES • IPSec Authentication: MD5, SHA-1, SHA2-256 • IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14 • IPSec Protocols: ESP • IPSec NAT Traversal • PPTP VPN Server / Client •...
  • Page 8 Simplified Quick Installation Guide SSD Installation 2x screws & 1x nut (GCC6011 only). Ground Cable with GCC6011 only. Rubber footpads with GCC6010/GCC6011 only. GCC6010/GCC6011 Package Content GCC6010/GCC6011 Package Content GCC6010W Package Content GCC6010W Package Content Note: Check the package before installation. If you find anything missing, contact your system administrator.

  • Page 9: Warranty

    Connect Your GCC601X(W) Device Safety Compliances The GCC601X(W) complies with FCC/CE and various safety standards. The GCC601X(W) power adapter is compliant with the UL standard. Use the universal power adapter provided with the GCC601X(W) package only. The manufacturer’s warranty does not cover damages to the device caused by unsupported power adapters.
  • Page 10 LED Indicators NET Ports USB 3.0 Port Micro SD Sync APs Button DC12V RESET Button 1. GCC6010/GCC6011 can be powered on using the right PSU 48VDC 1A (48W) and GCC6010W can be powered by a 12VDC 1.5A power adapter. 2. Connect the WAN port to an optical fiber broadband modem, ADSL broadband modem. 3.
  • Page 11 GCC601x(W) login page HOME Overview In this section, the user can view general information about the GCC60XX device. The information displayed includes basic information like the device name, hardware version, firmware version, MAC address, IP address, part number, serial number, boot version, uptime, and system time.
  • Page 12 GCC601X Overview Page Topology In this section, the administrator can view the topology of the Grandstream networking device connected to the GCC device.
  • Page 13 Topology When clicking on the highlighted icon below, the user can view the device details and settings Icon View AP Settings...

  • Page 14: System Settings

    To filter the types of devices that are shown on the topology click on Topology Filter System Settings In this section, the user can configure settings related to the general operations of the device. Basic Settings Basic Settings In this configuration tab, the user can define certain information about the GCC device. This includes device name, country/region, time zone, NTP server, and language.

  • Page 15: Security Settings

    Manager Server Settings Manager Server Settings Security Settings In this section, the user will be able to configure different security-related settings. These settings are mainly related to securing user access to the device either locally or remotely. Account Settings This tab allows the user to configure his/her username, password, email, and mobile phone number. Account Settings Web Access On this page, the administrator can configure to allow or prevent web access through the WAN port.

  • Page 16: Ssh Access

    Web Access Parameter Description Enabling this option allows redirecting HTTP access from port 80 to the HTTPS Redirect from Port 80 port configured. If the redirection is disbabled, the user should enter the HTTPS port configured in the address bar to access the web UI of the GCC. HTTPS Port Enter the HTTPS port.

  • Page 17: User Management

    Schedule This feature allows the creation of schedules that can be applied as rules to various components of the GCC device. This includes the Wi-Fi-embedded controller. When the user creates a new schedule, this schedule can be used for, e.g., to determine when a Wi-Fi SSID is broadcasted and when it is not.
  • Page 18 Add User Enter the username. Username The username can consist of 4-64 characters, including letters, digits, and underscores. Enter the password. Password The password can consist of 8-32 characters, need to contain 2 types of numbers/letters/special characters Enter the email of the user. Email The email entered should be limited between 1-64 characters Enter the mobile number of the user.

  • Page 19: Email Settings

    Add role Email Settings Setting the email client on the GCC60XX device allows the device to send emails directly to users and administrators. For example, when an extension is created on the PBX module and the email is entered in the extension’s user information, the user will receive an email stating the information that he/she can use to log into his/her extension.
  • Page 20 Email Settings Toggle TLS On/Off ● HTML: The emails will be sent in HTML format. Email Template Sending Format ● Plain Text: The emails will be sent as plain text. Enter the address of the SMTP server. The address can be either an IP address or a SMTP Server FQDN.

  • Page 21: Email Template

    Email Template The user can customize the layout of the emails sent by the device to the various users. The device already provides a pre- configured layout that can be modified. Email Template The user can click on the edit button to edit a specific template.

  • Page 22: Email Send Log

    Email Footer Hyperlink The customize the links that are included in the footers, please navigate to System Settings > Email Settings > Email Footer Hyperlink On the page, you can edit the text and the URL of each footer. You can add 3 additional footers if needed. Email Footer Hyperlink Email Send Log Email send log is used to keep records of all the emails that have been sent from the GCC device.

  • Page 23: Alarm Notification

    Profile Code: Verification Code: Alarm Notification: SMS Settings SMS Settings Twilio: Enable SMS Toggle the slider to enable/disable SMS service. SMS Carrier Select Twilio as the SMS Carrier. Username Enter the username of the account of the carrier. Auth Token Enter the authentication token generated on the carrier's site.
  • Page 24 ● EU (Ireland) ● EU (London) ● EU (Paris) ● EU (Frankfurt) ● EU (Stockholm) ● EU (Milan) ● Asia Pacific (Hong Kong) ● Asia Pacific (Mumbai) ● Asia Pacific (Singapore) ● Asia Pacific (Sydney) ● Asia Pacific (Jakarta) ● Asia Pacific (Tokyo) ●...

  • Page 25: Maintenance

    SMS Delivery Log PBX Upgrades On this page, the user can manage the license for upgrading the PBX capabilities of the GCC. When the license file is acquired, the user can upload the license file in this section. PBX Upgrades Note Please note that only the .dat and .lic files are supported.
  • Page 26 There are three methods of upgrading the firmware which are listed below. Official Online Upgrade: This method allows upgrading directly from the Grandstream firmware server. The administrator can click “Detect New Version” to check for any new firmware releases. When a new firmware version is available, the administrator can proceed with upgrading the device.

  • Page 27: Backup And Restore

    ● Official Online Upgrade: Use Grandstream servers to upgrade the device. Mode ● Upgrade via Network: Use a specific protocol and server to upgrade the device. If enabled, DHCP options 66 and 43 will override the upgrade and provisioning settings. If disabled, use the configured server path to request firmware information by Allow DHCP Option 43 and 66 to Override Server default.

  • Page 28: Notification Center

    Factory Reset Warning Resetting the device to the factory settings will delete all the data and configuration which are stored on the device. Please proceed with caution as this data cannot be recovered after the factory reset. Note Please note that the attached storage such as USB flash drive or M.2 SSD are not affected when factory-resetting the device. Notification Center The Notification Center allows the user to view and configure notifications of the events that occur on the GCC device.

  • Page 29: Network Nodes

    To use the email notification feature, please ensure that the Email Settings on the GCC are configured successfully. Notification Settings NETWORKING The Networking module of GCC601X(W) includes network-related configuration mainly VPN, Multi-WAN, and traffic management. It also allows users to configure all the standard routing configurations such as VLAN, port forwarding, etc. Click on the icon to access.

  • Page 30: Change Log

    Click on the icon to access. The integrated IPPBX module in the all-in-one convergence device the GCC601X(W) provides a communication and collaboration solution for enterprises that do not require expanded telephony capabilities. It offers the same features that are provided by Grandstream IPPBX solution, the UCM6300, to ensure cost-effective and efficient collaboration among professionals.

  • Page 31: Alerts & Notifications]

    Added alarm Notification Settings and Email Notification Settings for takeover/un-takover, switch online and offline alarm [Alerts & Notifications] Firewall Module: Updated the firewall package information link [Overview] Added ARP Protection – Static ARP List [Static ARP List] Added exception IP under content control [IP Exception –...
