Page 1 Grandstream Networks, Inc. GCC601X User Manual...
Page 2: Product Overview

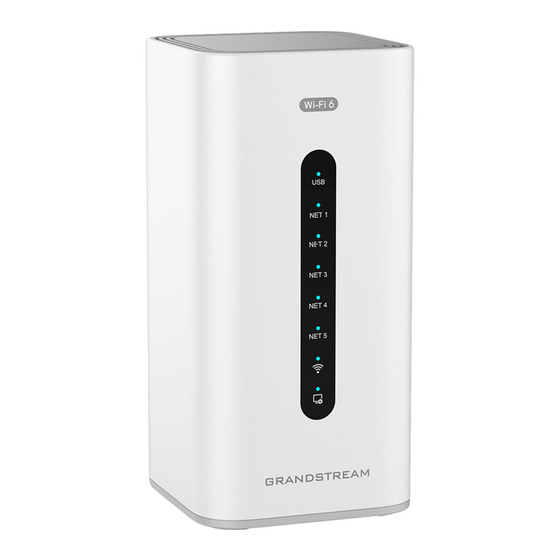

GCC601X - User Manual GCC601X(W) series are defined as mid-range all-in-one convergence devices. Integrates VPN Router, NGFW, Switch or Wi-Fi AP, and IP PBX, covering the collaborative office capabilities of data communication and UC audio and video service. Featuring GbE RJ-45 and SFP ports, it enables high-speed multi-WAN port connectivity for enterprises. This series is convenient and fast to deploy and manage through the local simple Web UI, GDMS, mobile APP, or console.
Page 3 LEDs 7 x single LEDs and 1 x RGB LED for device tracking and status indication Connection Type DHCP, Static IP, PPPoE, PPTP, L2TP IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE Network Protocols 802.3x,IEEE802.3ab VLAN, TOS Support multiple tra c classes, lter by port, IP address, DSCP, and policing App QoS: Application/protocol monitoring and tra c statistics VoIP Prioritization DDNS, Port Forwarding, DMZ, UPnP, DoS &...
Page 4 Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax 3 individual internal antennas ( 2 x dual band + 1 x Single band 5G) Antennas 2.4GHz: maximum gain 4.5dBi 5 GHz: maximum gain 5dBi IEEE 802.11ax: 7.3 Mbps to 3603 Mbps IEEE 802.11ac: 6.5 Mbps to 2600 Mbps IEEE 802.11n: 6.5 Mbps to 450 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G:...
Page 5 Memory 2GB RAM, 32GB eMMC Flash External Storage Router 3Gbps IPsec VPN Throughput 1Gbps NAT Sessions 160K IDS/IPS 900Mbps Up to 100 users/25 concurrent calls (default 10/4) Mounting Desktop Material Plastic Mini-Tower LEDs 9 x LEDs for device tracking and status indication Connection Type DHCP, Static IP, PPPoE, PPTP, L2TP IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE...
Page 6 PoE: N/A Operation: 0°C to 45°C Environmental Storage: -30°C to 60°C Humidity: 5% to 95% Non-condensing Unit Dimension: 95 x 95 x 193 mm Unit Weight: 565g Physical Entire Package Dimension: 186 x 127 x 105 mm Entire Package Weight: 920g Package Content GCC6010W, Universal Power Supply, Quick Installation Guide Compliance...
Page 7: Installation
Content Control: DNS Filtering, Web url/class/content ltering, Application identi cation and control • IPsec VPN Client-to-Site / Site-to-Site • IPSec Encryption: 3DES, AES • IPSec Authentication: MD5, SHA-1, SHA2-256 • IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14 •...
Page 8 Simpli ed Quick Installation Guide GCC6010/GCC6011 Package Content GCC6010/GCC6011 Package Content GCC6010W Package Content GCC6010W Package Content Note: Check the package before installation. If you find anything missing, contact your system administrator. Connect Your GCC601X(W) Device Safety Compliances...
Page 9 The GCC601X(W) complies with FCC/CE and various safety standards. The GCC601X(W) power adapter is compliant with the UL standard. Use the universal power adapter provided with the GCC601X(W) package only. The manufacturer’s warranty does not cover damages to the device caused by unsupported power adapters. Warranty If the GCC601X(W) device was purchased from a reseller, please contact the company where the device was purchased for replacement, repair, or refund.
Page 10 LED Indicators NET Ports USB 3.0 Port Micro SD Sync APs Button DC12V RESET Button HOME Overview In this section, the user can view general information about the GCC60XX device. The information displayed includes basic information like the device name, hardware version, firmware version, MAC address, IP address, part number, serial number, boot version, uptime, and system time.
Page 11 GCC601X Overview Page Topology In this section, the administrator can view the topology of the Grandstream networking device connected to the GCC device. Topology When clicking on the highlighted icon below, the user can view the device details and settings...
Page 12 Icon View AP Settings To filter the types of devices that are shown on the topology click on...
Page 13: System Settings
Topology Filter System Settings In this section, the user can configure settings related to the general operations of the device. Basic Settings Basic Settings In this configuration tab, the user can define certain information about the GCC device. This includes device name, country/region, time zone, NTP server, and language.
Page 14: Security Settings
Manager Server Settings Security Settings In this section, the user will be able to configure different security-related settings. These settings are mainly related to securing user access to the device either locally or remotely. Account Settings This tab allows the user to configure his/her username, password, email, and mobile phone number. Account Settings Web Access On this page, the administrator can configure to allow or prevent web access through the WAN port.
Page 15: Ssh Access
Web Access SSH Access In this section, the user can enable SSH remote access to the device, this includes SSH remote access as well. SSH Access Remote Access without Password Enabling passwordless remote access allows you to access the device through the GDMS management platform without having to provide a username and password for authentication.
Page 16: User Management
Schedule User Management User Management allows the user to create users with various roles and privileges. User Information In this section, the user can create new users by clicking on the button. User Information...
Page 17 Add User Enter the username. Username The username can consist of 4-64 characters, including letters, digits, and underscores. Enter the password. Password The password can consist of 8-32 characters, need to contain 2 types of numbers/letters/special characters Enter the email of the user. Email The email entered should be limited between 1-64 characters Enter the mobile number of the user.
Page 18: Email Settings
Role Add role Email Settings Setting the email client on the GCC60XX device allows the device to send emails directly to users and administrators. For example, when an extension is created on the PBX module and the email is entered in the extension’s user information, the user will receive an email stating the information that he/she can use to log into his/her extension.
Page 19 Email Settings Toggle TLS On/Off ● HTML: The emails will be sent in HTML format. Email Template Sending Format ● Plain Text: The emails will be sent as plain text. Enter the address of the SMTP server. The address can be either an IP SMTP Server address or a FQDN.
Page 20: Email Template
Display Name Specify the display name in the FROM header in the Email. Specify the sender’s Email address. Sender For example: pbx@example.mycompany.com. Email Template The user can customize the layout of the emails sent by the device to the various users. The device already provides a pre- configured layout that can be modified.
Page 21 Edit Email Template The user can use the text editor to change the layout, once that is done, the user can view the new layout by clicking on Email Footer Hyperlink The customize the links that are included in the footers, please navigate to System Settings > Email Settings > Email Footer Hyperlink On the page, you can edit the text and the URL of each footer.
Page 22: Email Send Log
Email Send Log Email send log is used to keep records of all the emails that have been sent from the GCC device. Email Send Log SMS Settings The SMS feature allows the user to send information over SMS to mobile numbers. Currently, the information which can be sent over SMS are the following: Profile Code: Verification Code:...
Page 23 SMS Settings Twilio: Enable SMS Toggle the slider to enable/disable SMS service. SMS Carrier Select Twilio as the SMS Carrier. Username Enter the username of the account of the carrier. Auth Token Enter the authentication token generated on the carrier's site. Message Server ID Enter the ID of the message server of the carrier.
Page 24 ● Asia Paci c (Singapore) ● Asia Paci c (Sydney) ● Asia Paci c (Jakarta) ● Asia Paci c (Tokyo) ● Asia Paci c (Seoul) ● Asia Paci c (Osaka) ● South America (Sao Paulo) ● China (Beijing) ● China (Ningxia) ●...
Page 25: Maintenance
SMS Delivery Log PBX Upgrades On this page, the user can manage the various licenses which can be uploaded to the GCC device. PBX Upgrades Maintenance Upgrade When a new firmware is released for the GCC device, the user can use the “Upgrade” page to update the firmware of the GCC device using different methods of updating the firmware.
Page 26: Backup And Restore
Upgrade via Network: Using this method, the user can choose a specific upgrade method and configure a server address that hosts the firmware files. Upgrade via Manual Upload: Using this method, the user can upload the firmware file directly on the web UI of the device.
Page 27: Notification Center
Factory Reset Notification Center The Notification Center allows the user to view and configure notifications of the events that occur on the GCC device. To access the notification center, please access the main page of the GCC web UI and then click on the Notification Center tab. Notification Center Notification Settings To set the notifications of the GCC device, click on...
Page 28: Network Nodes
Notification Settings NETWORKING The Networking module of GCC601X(W) includes network-related configuration mainly VPN, Multi-WAN, and traffic management. It also allows users to configure all the standard routing configurations such as VLAN, port forwarding, etc. Click on the icon to access. FIREWALL The firewall module of GCC601X(W) is a Next-Generation Firewall (NGFW) that secures users’...
Page 29: Change Log
The integrated IPPBX module in the all-in-one convergence device the GCC601X(W) provides a communication and collaboration solution for enterprises that do not require expanded telephony capabilities. It offers the same features that are provided by Grandstream IPPBX solution, the UCM6300, to ensure cost-effective and efficient collaboration among professionals.
