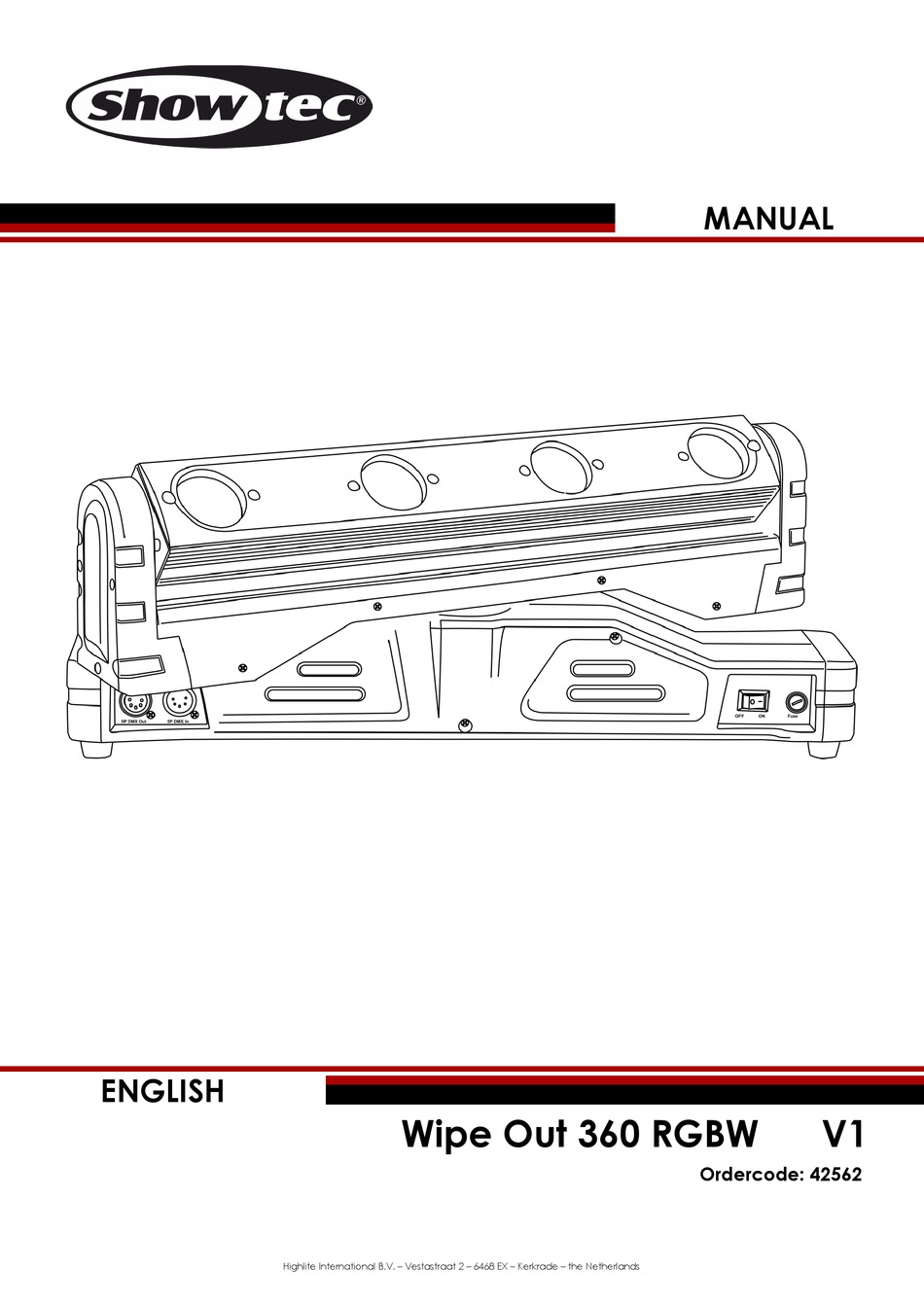

- Page 1 MANUAL ENGLISH Wipe Out 360 RGBW Ordercode: 42562 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Wipe Out 360 RGBW Table of contents Warning ....................................2 Unpacking Instructions ..............................2 LED Expected Lifespan ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device .............................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec Wipe Out 360 RGBW • PowerCon to Schuko (1,5 m) •... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Wipe Out 360 RGBW • The user is responsible for correct positioning and operating of the Wipe Out. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 6: Connection With The Mains
Wipe Out 360 RGBW The Wipe Out can be placed on a flat stage floor or mounted to any kind of truss with a clamp and quick-locks. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
Wipe Out 360 RGBW Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device
Wipe Out 360 RGBW Description of the device Features The Wipe Out 360 RGBW is an innovative concept and brings continuous rotating to LED Bars in a compact housing but still with a surprisingly high light output. • Very fast movement •... -
Page 9: Frontside
Wipe Out 360 RGBW Frontside Fig. 02 01) Moving head with 4 x 10W RGBW lenses 02) LCD Display + control buttons 03) 5-pin DMX signal connector OUT 04) 5-pin DMX signal connector IN 05) Power switch ON/OFF 06) Fuse 5S3A/250V Backside Fig. -
Page 10: Installation
Wipe Out 360 RGBW Installation Remove all packing materials from the Wipe Out 360 RGBW. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 11: Multiple Wipe Outs (Dmx Control)
Wipe Out 360 RGBW Multiple Wipe Outs (Master/Slave control) Fig. 04 Multiple Wipe Outs (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). -
Page 12: Fixture Linking
Wipe Out 360 RGBW Multiple Wipe Outs DMX Set Up Fig. 05 Note : Link all cables before connecting electric power Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. -
Page 13: Control Panel
Wipe Out 360 RGBW The Wipe Out 360 RGBW can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LCD display MODE button C) SETUP button D) UP button DOWN button Fig. -
Page 14: Menu Overview
Wipe Out 360 RGBW Menu Overview See next page for the remaining menu functions. Ordercode: 42562... - Page 15 Wipe Out 360 RGBW Ordercode: 42562...
-
Page 16: Main Menu Options
Wipe Out 360 RGBW Main Menu Options Manual Mode Auto Mode Sound-controlled Mode DMX-512 Mode Master/Slave Mode Settings 1. Manual Mode 01) While in the main menu, press the MODE button until the display shows 02) Press the SETUP button to enter the menu. -
Page 17: Manual Mode - Pan
Wipe Out 360 RGBW Cyan Yellow White Blue Green Black (Blackout) 15) Press the MODE button to return to step 12 and press the UP and DOWN buttons until the display shows 16) Press the SETUP button to enter the menu. -
Page 18: Manual Mode - Tilt
Wipe Out 360 RGBW 10) When the display shows , press the SETUP button to enter the menu. 11) Press the UP and DOWN buttons to manually adjust the speed of clockwise pan movement. The adjustment range is between 1.3 Manual Mode - Tilt... -
Page 19: Settings
Wipe Out 360 RGBW 6. Settings 01) While in the main menu, press the UP and DOWN buttons until the display shows 02) Press the UP and DOWN buttons to toggle between the following options: 6.1 BL time ... -
Page 20: Settings - Sensor
Wipe Out 360 RGBW 6.8 Settings – Sensor 01) When the display shows , press the SETUP button to enter the sensor settings. 02) Press the UP and DOWN buttons to toggle between the following 4 options: p-hall ... -
Page 21: Dmx Channels
Wipe Out 360 RGBW DMX Channels 1 channel Channel 1 – Functions 0-29 LEDs OFF 30-44 Built-in show 1 45-59 Built-in show 2 60-74 Built-in show 3 75-89 Built-in show 4 90-104 Built-in show 5 105-119 Built-in show 6 120-134... -
Page 22: Channels
Wipe Out 360 RGBW Channel 11 – LED 2 Red intensity 0-255 Gradual adjustment Red from 0 – 100% Channel 12 – LED 2 Green intensity 0-255 Gradual adjustment Green from 0 – 100% Channel 13 – LED 2 Blue intensity 0-255 Gradual adjustment Blue from 0 –... - Page 23 Wipe Out 360 RGBW Channel 6 – Continuous Pan Push the slider up, in order to move head horizontally (PAN). Not functional, between 0-129. Clockwise rotation from fast slow, between 130-192. Counterclockwise rotation from slow to fast, between 193-255. Channel 7 – Dimmer...
- Page 24 Wipe Out 360 RGBW Channel 22 – LED 4 Blue intensity Dimmer must be open 0-255 Gradual adjustment Blue from 0 – 100% Channel 23 – LED 4 White intensity Dimmer must be open 0-255 Gradual adjustment White from 0 – 100% Channel 24 –...
-
Page 25: Maintenance
01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LED. Return the Wipe Out 360 RGBW to your Showtec dealer. 03) The fuse. Replace the fuse. See page 25 for replacing the fuse. -
Page 26: No Response To Dmx
● Check that power is switched on and fixtures are cables are plugged in. completely dead. Internal fuse blown. ● Return the device to your Showtec dealer Fixtures reset The controller is not connected. ● Connect controller. correctly, but all 3-pin XLR Out of the controller does ●... -
Page 27: Product Specifications
Wipe Out 360 RGBW Product Specifications Model: Showtec Wipe Out 360 RGBW Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 60W (full output) DMX linking: 30pcs Fuse: 5S3A/250V Dimensions: 555 x 94 x 220 mm (LxWxH) Weight: 6,9 kg Operating and Programming:... -
Page 28: Dimensions
Wipe Out 360 RGBW Dimensions Ordercode: 42562... -
Page 29: Notes
Wipe Out 360 RGBW Notes Ordercode: 42562... - Page 30 Wipe Out 360 RGBW Ordercode: 42562...
- Page 31 Wipe Out 360 RGBW Ordercode: 42562...
- Page 32 ©2015 Showtec...
