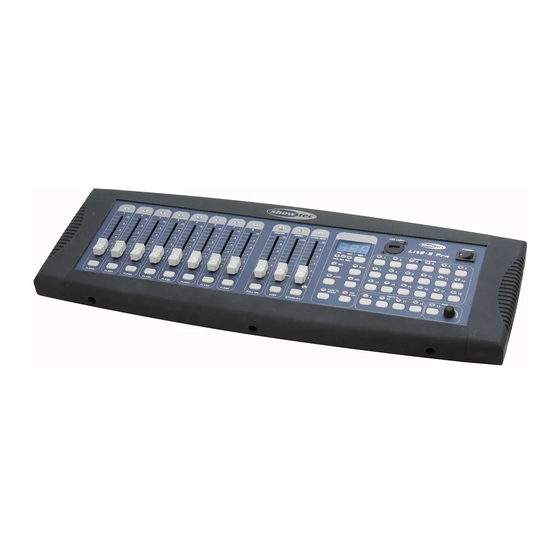

  • Page 2 Welcome Thanks for your purchasing this "Lite-8 Pro" lighting control equipment. This product has the following listed main features: 8 Ch. dimming console with 8 dimming faders, 8 flash buttons and 1 master-fader. Ch9~13 output switches, Ch13 output switch + adjusting knob.

  • Page 3: General Instruction

    General Instruction This is a professional lighting controller with 13 output channels (8 channels with faders & 5 channel-output switches) and 18 preset programs. Each program is editable with up to 99 steps. Lighting effect can be triggered in Manul, Auto, or Audio control mode as your desire.

  • Page 4: Control And Functions

    Control and Functions Control Panel View Master Audio sense Speed ONE/MIX/SEQ fader fader fader button Display select button socket button USB LIGHT Indicating POWER Power MASTER SPEED AUDIO SENS 0.05s switch SCENES / CHASES MIDI ONE MIX SEQ Channel Scene/Chase fader AUDIO MIDI...

  • Page 5: Rear Panel View

    Control and Functions STEP button: press this button to manually trigger the programmed chase step by step. Stand-by button: this will allow the operator to instantly stop all channels' output (press this button again to reactivate the output). LED-display: to show you relevant information depending on your operation. ONE/MIX/SEQ select button: press this button to select ONE, MIX or SEQ running mode as your desire.

  • Page 6: Operation

    Operation Scene/Chase Editing To enter or exit the editing mode Editing entrance: Press and hold down the REC button for about 3 seconds till the REC LED is lit, that means you have already entered the editing mode. Editing exit: After your operation, you can press the RUN button to exit (REC LED goes out).
  • Page 7 Operation To see over a programmed Scene/Chase Please do as below to see over a programmed scene/chase Firstly, you should press and hold down the REC button for about 3 seconds (till its LED lights up) to enter the editing mode. When in the editing mode, you should firstly select a programmed scene/chase and press its button, its LED will light up.
  • Page 8 Operation FULL ON Setting To reset the "FULL ON" function as your desire Firstly, you should press and hold down the REC button for about 3 seconds (till its LED lights up) to enter the editing mode. Pressing the "FULL ON" button, LED-display will flickeringly show you .
  • Page 9 Operation To resume the original preset "STAND-BY" function Firstly, you should press and hold down the REC button for about 3 seconds (till its LED lights up) to enter the editing mode. Pressing the "STAND-BY" button, LED-display will flickeringly show you .
  • Page 10 Operation Scene/Chase Running ONE/MIX/SEQ chasing mode(s) You can press the ONE/MIX/SEQ button to select ONE, MIX or SEQ chasing mode to run the chase(s) as your desire.: ONE: to run the chase singly --- that means you can only run one chase at a time. MIX: to run the chases intermixably --- that means all chases can be respectively run at the same time.

  • Page 11: Notice Information

    Notice Information Maintenance Turn off the power before any cleaning. Keep the unit dry, do not spill water or other liquids into or onto it. There are no user serviceable parts inside, do not dismantle the unit. If your unit fails to work or is somehow damaged, please do not attempt to repair it by yourself.

  • Page 12: Technical Specifications

    Technical Specifications Power Input ................DC9~15V, 500mA Internal Fuse..............500mA 250V, 5x20mm MIDI IN................5Pin MIDI connector DMX OUT.............5Pin/3Pin(female) DMX connector SOUND INPUT................RCA connector EXT STEP CONTROL...............DB-9 connector Dimensions ................483x135x82mm Weight(approx.) ..................2.2 kg No. 24-004-1601 Rev 1.0 All Rights Reserved...
