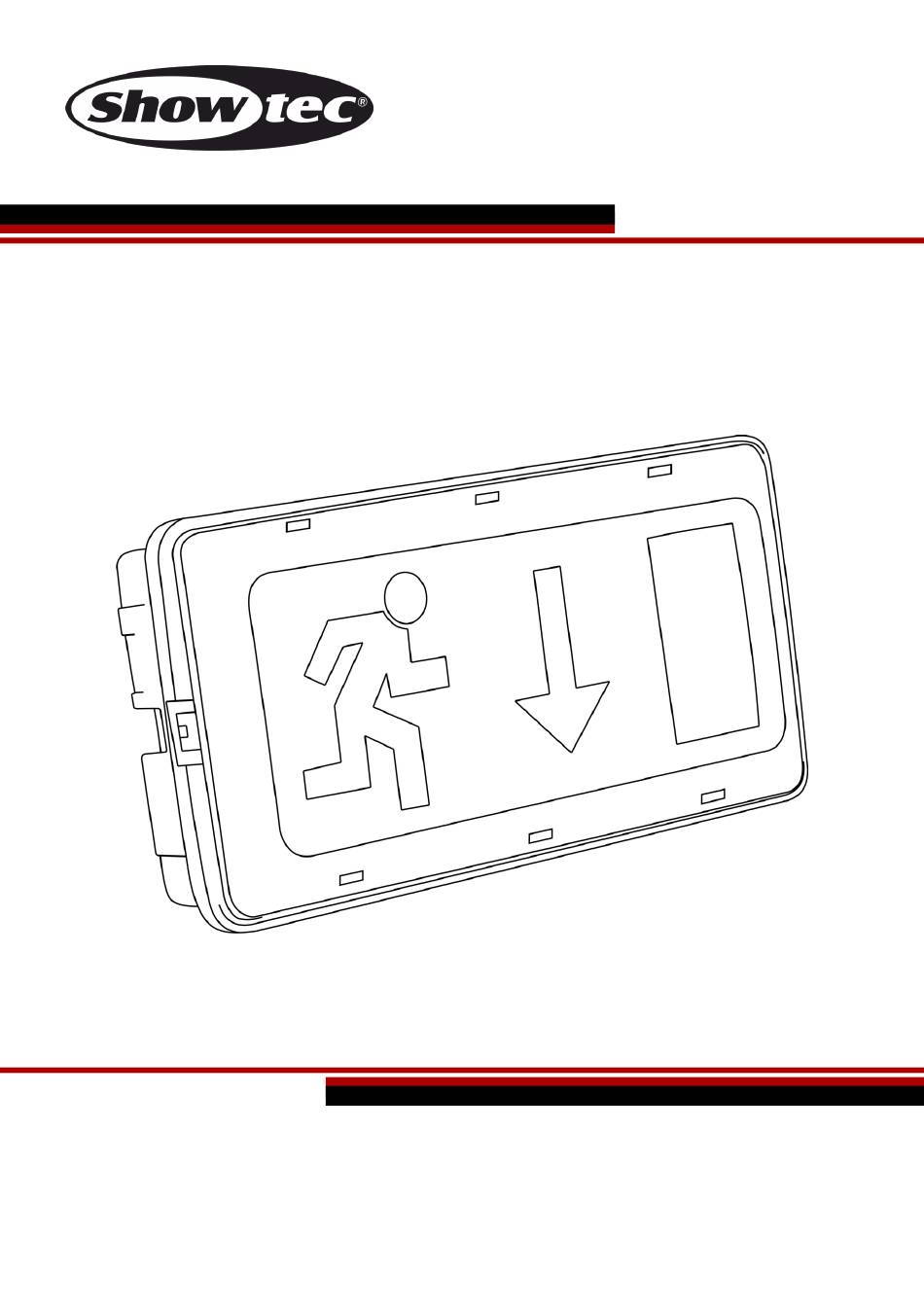

MANUAL
ENGLISH
Safeled Emergencylight
V1
Ordercode: 34000
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Safeled Emergencylight and is the answer not in the manual?

Questions and answers

Summary of Contents for SHOWTEC Safeled Emergencylight

  • Page 1 MANUAL ENGLISH Safeled Emergencylight Ordercode: 34000 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
  • Page 2: Table Of Contents

    Safeled Emergencylight Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Connection with the mains............................4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Overview ..................................6 Installation ................................... 7 Set Up and Operation ...............................
  • Page 3: Warning

    Safeled Emergencylight Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling.
  • Page 4: Operating Determinations

    • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
  • Page 5: Connection With The Mains

    Safeled Emergencylight The Safeled Emergencylight can be attached to a wall or ceiling by means of two screws and dubels. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug.
  • Page 6: Return Procedure

    Safeled Emergencylight Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
  • Page 7: Description Of The Device

    Safeled Emergencylight Description of the device Features The Safeled Emergencylight is an emergency light. It is equipped with 3 different emergency labels.  Input voltage: 220-240V, 50Hz  Power consumption: 10W  Light source: 30 x 5050 SMD LED ...
  • Page 8: Installation

    Safeled Emergencylight Installation Remove all packing materials from the Safeled Emergencylight. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing.
  • Page 9: Cable Connection

    Safeled Emergencylight 03) Pull the power cord through the gasket and connect properly to the terminal. Fig. 04 04) Press the light panel back into the housing. 05) Replace the diffuser. Cable connection Fig. 05 Ordercode: 34000...
  • Page 10: Emergency Test

    Safeled Emergencylight Emergency test 01) Test emergency function after completing installation. Fig. 06 Replacing batteries 01) Disconnect the power supply. 02) Disconnect the battery plug. 03) Remove the tie-wraps. 04) Remove the old batteries. 05) Insert the new batteries. 06) Reconnect the battery plug.
  • Page 11: Maintenance

    04) The electric power supply cables must not show any damages or material fatigue. The Safeled Emergencylight requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth.
  • Page 12: Product Specifications

    Safeled Emergencylight Product Specifications Model: Showtec Safeled Emergencylight Input Voltage: 220-240 VAC, 50Hz Power consumption: Dimensions: 300 x 150 x 60 mm (LxWxH) Weight: 1 kg Electro-mechanical effects: Light source: 30 x 5050 SMD LED Light output: 400 lumen (131 lumen, when the emergency label is...
  • Page 13: Notes

    Safeled Emergencylight Notes Ordercode: 34000...
  • Page 14 Safeled Emergencylight Ordercode: 34000...
  • Page 15 Safeled Emergencylight Ordercode: 34000...
  • Page 16 ©2017 Showtec...
