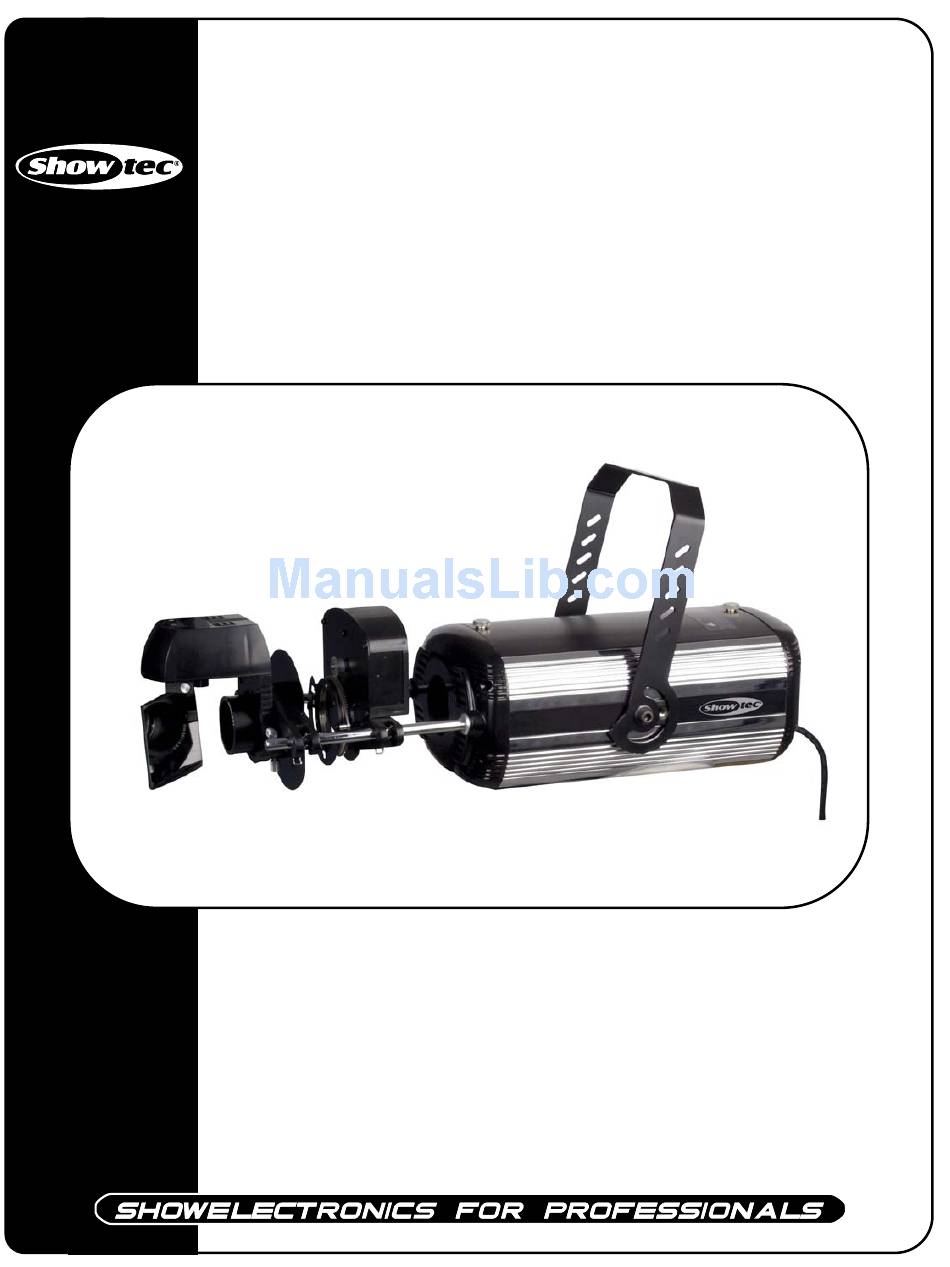

- Page 1 ImageSpot 300 ORDERCODE 40707...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec ImageSpot 300 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec ImageSpot 300 Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………… Features and Overview ………………………………...….……………….………….………………….…. Installation................…...…………………………………….….. Installing the Lamp ............………………………………………..………… Set Up and Operation..............……..……………………………….… Lens Focusing.................…………………………………………… Maintenance...................………..………….…….……………… Changing the Lamp................…………………….………………… Replacing the Fuse................…………………….………………… Replacing a Gobo…...............…………………….………………… Troubleshooting................………………….………………….….. No Light..…………………………………..........………………….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the projector is lowered from the ceiling or high joists, professional trussing systems have to be •... -
Page 7: Description
Installation Installing the Lamp The Showtec ImageSpot 300 uses the HTI 300 (ordercode 80917) reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 8: Set Up And Operation
Put in the new lamp securely into the socket. Please note the protuberance of bulb shall be upward orientation to obtain equal intensity distribution (see figure2). Fig. 2 6. Fasten the 2 thumb screws and reassemble the device in reverse order. Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. -
Page 9: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec ImageSpot 300 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 10: Replacing A Gobo
Replacing a Gobo 1. Disconnect mains power supply and set the switch to OFF. 2. Make sure that the gobo you want to insert has the same size. Gobo diameter (metal or glass) 65 mm Maximum image diameter 36 mm Fig. -
Page 11: Accessories
Accessories The Image Spot 300 is designed for a wide variety of applications including exhibitions, retail environments, leisure, promotions and entertainment venues. The ISP-2 can use a single rotating gobo or the combination of rotating gobo with static gobo for different effects. -
Page 12: Product Specifications
Product Specification Model: Showtec ImageSpot 300 Voltage: 240V-50Hz (CE) Power: 450W Fuse: F6,3A / 250V 5x20mm Lens: Standard 1 : 2,4 / 100mm Dimensions: 555x240x262mm (LxWxH) Weight: 8,6kg Lamp Allowed lamp models*: Osram HTI 300 (750 hr; 6500K) ordercode 80917...
