Henkel Loctite EQ SD20 Operating Manual

Digital syringe dispenser

Advertisement

Quick Links

EQ SD20 Digital Syringe Dispenser
IDH 2974792
Operating Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Loctite EQ SD20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Henkel Loctite EQ SD20

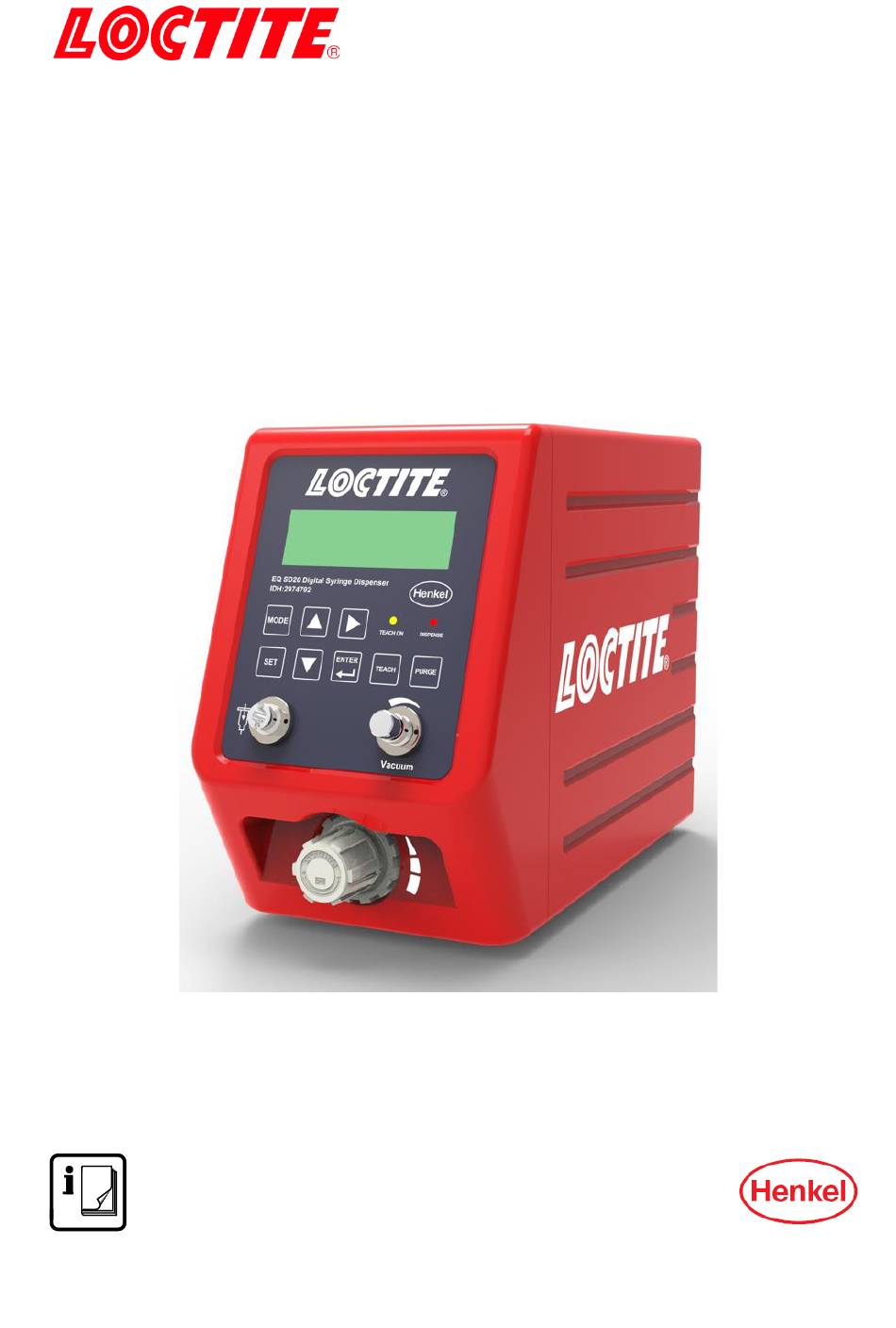

  • Page 1 EQ SD20 Digital Syringe Dispenser IDH 2974792 Operating Manual...
  • Page 3: Table Of Contents

    Table of Contents Please Observe the Following ..................5 Emphasized Sections ....................5 For Your Safety ......................5 Unpacking and Inspection ..................6 Packing List ........................6 Features ........................7 Field of Application (Intended use) ................7 Technical Data ......................7 Description ........................
  • Page 4 Dispensing best practices ..................14 Operation ........................15 Continuous Mode ....................... 15 Timer Mode ......................... 15 6.2.1 Teaching – Timer Mode .................... 15 Cycle Mode ......................... 16 6.3.1 Teaching – Cycle Mode ..................... 16 Program Mode ......................17 Troubleshooting ......................17 Care and Maintenance ....................
  • Page 5: Please Observe The Following

    Technical Data Sheet and the Safety Data Sheet (in accordance with REACH Regulation (EC) No. 1907/2006) from your Henkel Technical Service. For safe and successful operation of the unit, read these instructions completely. If the instructions are not observed, the manufacturer can assume no responsibility.
  • Page 6: Unpacking And Inspection

    Use only original equipment replacement parts. Always disconnect the power supply before servicing the unit. Damage to the power cord or the housing can result in contact with live electrical parts. Check the power cord and the unit before each use. If the power cord or the unit is damaged, do not operate! Observe general safety regulations for the handling of chemicals such as ®...
  • Page 7: Features

    Features - Precise air pressure regulator. - Vacuum regulator. - Keypad with LCD display. - Teaching function. - Four working modes: Timer, Continuous, Cycle and Program. - Pressure and Vacuum digital display. - Stores up to 40 dispensing programs. Field of Application (Intended use) ®...
  • Page 8: Overview

    regulates the dispensing pressure and time to dispense a repeatable volume of product. The built-in vacuum regulator prevents dripping of the product during pauses in dispensing. Overview 1 – LCD Display 6 – Power In 2 – Operating Elements 7 – Power Switch 3 –...
  • Page 9: Operating Elements

    3.2.2 Operating Elements 1 – Browse working modes 6 – “Teaching” mode status (LED lights up when Teach mode is activated) 2 – Enables edit parameter/ change 7 – Enables “Teach” mode cursor to next editable field 3 – Increase/decrease value 8 –...
  • Page 10: Placement

    Placement Caution! When the syringe piston is missing and the syringe is handled in an improper manner, the product can enter and contaminate the dispenser. Please, follow the instructions below to avoid contamination. Place the control unit in an elevated position above the syringe. Do not hold the syringe in an elevated position above the dispenser or with the tip pointing upward! In work pauses, switch main air supply off and place the syringe on the syringe...
  • Page 11: Pressure And Vacuum Calibration

    2 – Press to enable changing Pressure unit. 3 – Use to select Pressure unit. 4 – Press to switch to Vacuum unit selector. 5 – Use to change Vacuum unit. 6 – Press to save. 7 – Press together to exit Pressure and Vacuum selecting unit screen.
  • Page 12: Vacuum Calibration

    7 – Use to give the offset needed. 8 – Press to switch between “+” and “-“ offset fields. 9 – Press to save. 10 – Press together to exit Pressure Calibration screen. 4.5.2 Vacuum Calibration 1 – Press together, it leads to Vacuum Calibration screen. 2 –...
  • Page 13: Shutting Down

    Shutting down For periods of non-use, it is recommended to shut down the unit. Please, follow the instructions below: 1 – Switch the unit off. 2 – Switch main pneumatic air supply off. 3 – Disconnect Syringe from Syringe Adapter. 4 –...
  • Page 14: Selecting Dispensing Needle

    Press Purge button until no air bubbles are coming out from syringe. Notice: If the product drips out of the dispense needle. Slowly increase the vacuum value until the dripping stops. (section 5.3) Selecting dispensing needle Straight Stainless-Steel needles are recommended for Low to Medium viscosity products.
  • Page 15: Operation

    Operation Continuous Mode This mode of operation is used for the application of beads. The dispensing time is controlled by the duration of the external start signal. Dispensing time Duration of external start signal Timer Mode This mode of operation is used for dot or drop dispensing. Operator can setup the internal timer from 0 to 99.99s.
  • Page 16: Cycle Mode

    4 – Stop external start signal as soon as desired amount of adhesive is achieved. (e.g. using a foot switch connected to XS1, release the foot switch after amount of adhesive is reached) 5 – Press to save the value and exit “Teach mode”. Cycle Mode This mode of operation is used for repeatable dispensing.
  • Page 17: Program Mode

    Power adapter is defective. Replace power adapter. Power switch is not Switch on the power switch. switched on. Unit is defective. Contact Henkel Equipment Service. Not possible to set Main pneumatic air supply is Verify main pneumatic air pressure or no pressure is not connected or switched supply and its connections.
  • Page 18 Increase the vacuum turning minimum. vacuum regulator’s knob counterclockwise. Silencer is clogged. Clean or replace silencer. Vacuum regulator defective. Contact Henkel Equipment Service. Not possible to dispense. XS1 cable connection is not Switch the unit OFF. Tighten secure. the screws of the plug.
  • Page 19: Care And Maintenance

    Care and Maintenance Care Occasionally the O-ring at the syringe adapter should be greased. This will prolong the life of the O-ring. Notice: Clean your hands after application of grease to ensure no surface contamination. Clean the adhesive residue from the syringe holder or replace it with a new one as required.
  • Page 20: Accessories And Spare Parts

    Accessories and Spare Parts Description Order# 10ml Air Line Adapter (2 pcs) 88657 10ml Clear Syringe barrel kit (40 pcs) 88656 10ml Black Syringe barrel kit (40 pcs) 218287 30ml Air Line Adapter (2 pcs) 88678 30ml Clear Syringe barrel kit (20 pcs) 88677 30ml Black Syringe barrel kit (20 pcs) 218286...
  • Page 21: Diagrams

    XS1 Start via Foot switch, or external control. Warning! Never connect external voltage on pin1 or pin9! Warranty Henkel expressly warrants that all products referred to in this Instruction Manual for ® Loctite EQ SD20 Digital Syringe Dispenser (hereafter called “Products”) shall be free from defects in materials and workmanship.
  • Page 22 In the event of unauthorized modification of the Products including, where products, parts or attachments for use in connection with the Products are available from Henkel, the use of products, parts or attachments which are not manufactured by Henkel, no claim shall be allowed.
  • Page 23: Declaration Of Conformity

    EN IEC 62368-1:2020+A11:2020 standards EN 55032:2015+A11:2020+A1:2020 EN IEC 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 55035:2017+A11:2020 EN IEC 63000:2018 Place and date of issue: Signed for and on behalf of Henkel AG & Co. KGaA: Düsseldorf, DATE ______________________________________________ Michael Brunner Business Development Manager Equipment...
  • Page 24 JAPAN Deutchland www.equipment.loctite.com ® and ™ designate trademarks of Henkel Corporation or its affiliates. ® = registered in the U.S. and elsewhere. © Henkel Corporation. All rights reserved. Data in this operation manual is subject to change without notice. Manual P/N:9058323, Rev A, Date: 05/10/2024...
