User's Guide for software version 7.2 and higher
(refer to tracking label on product)

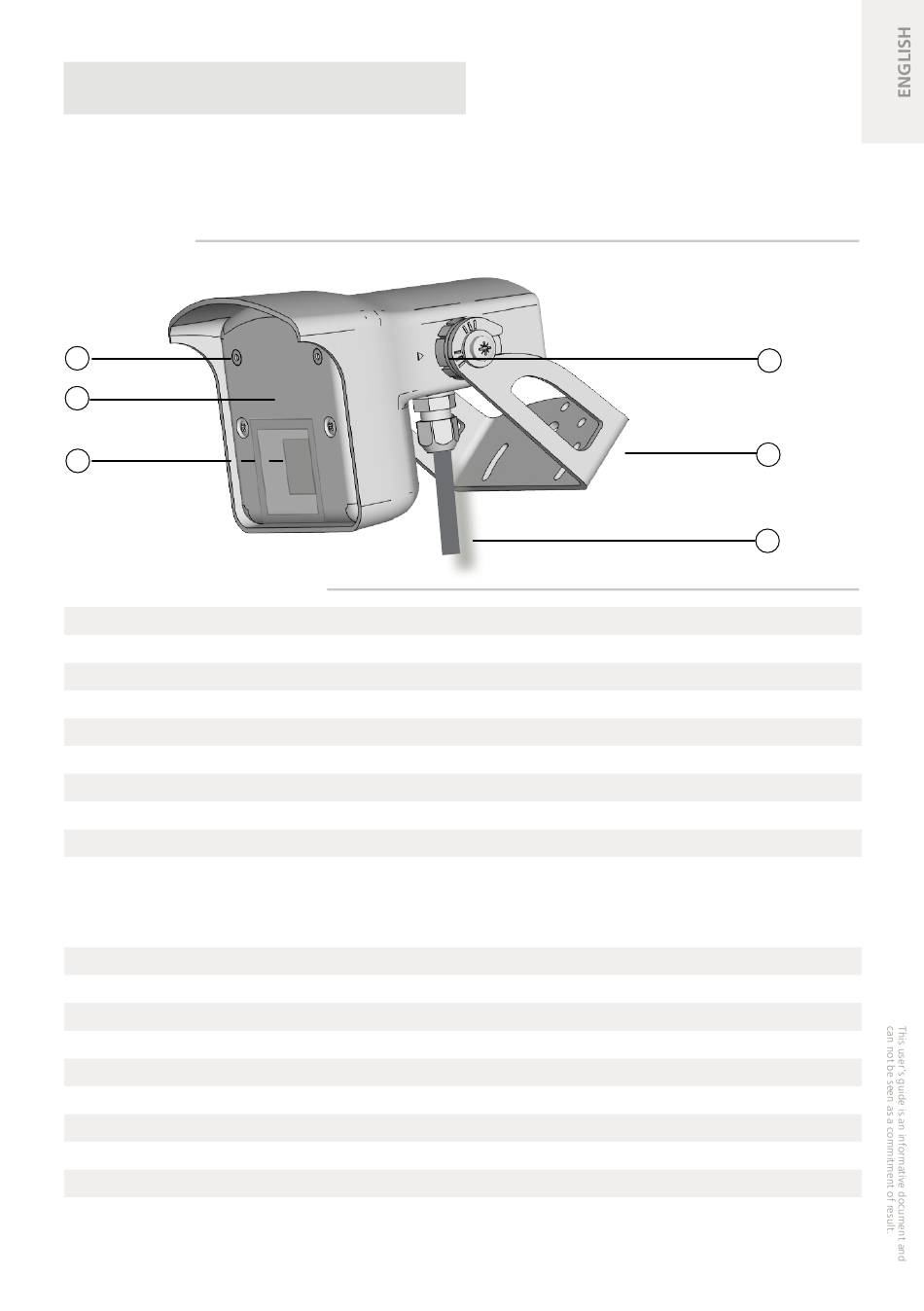

DESCRIPTION
1
2
3
TECHNICAL SPECIFICATIONS
Technology:
Transmitter frequency:
Transmitter radiated power:
Transmitter power density:
Detection mode:
Detection zone:
Min. detection speed:
Supply voltage**:
Max power consumption:
Output**:
Max. contact voltage:
Max. contact current:
Max. switching power:
LED-signal:
Mounting height:
Degree of protection:
Temperature range:
Dimensions:
Tilt angles:
Materials:
Weight:
Cable length:
Specifications are subject to changes without prior notice.
* Measured in optimal conditions
** External electrical sources must be within specified voltages, max 100W and ensure double insulation from primary voltages.
FALCON
OPENING SENSOR
FOR AUTOMATIC INDUSTRIAL DOORS
FALCON: for normal to high mounting (3.5 - 7 m)
microwave doppler radar
24.150 GHz
< 20 dBm EIRP
< 5 mW/cm²
motion
FALCON: 4 x 5 m
5 cm/s*
12 V to 24 V AC ±10 % (50 - 60 Hz); 12 V to 24 V DC +30 % / -10%
< 2 W
relay (free of potential change-over contact)
30V AC/42V DC
1A (resistive)
30 W
red: detection state, parameter indication; green: value indication
FALCON: 3.5 m - 7m
IP65 (IEC/EN 60529)
from -30 °C to + 60 °C
127 mm (L) x 102 mm (H) x 96 mm (W)
0° to 180° vertical
ABS and polycarbonate
400 g
10 or 15 m
1.
push buttons
4.
2.
front face
5.
3.
radar antenna
6.
angle indication
bracket
cable
4
5
6
Advertisement
Related Manuals for Halma BMP FALCON
Summary of Contents for Halma BMP FALCON
- Page 1 FALCON OPENING SENSOR User’s Guide for software version 7.2 and higher (refer to tracking label on product) FOR AUTOMATIC INDUSTRIAL DOORS FALCON: for normal to high mounting (3.5 - 7 m) DESCRIPTION push buttons angle indication front face bracket radar antenna cable TECHNICAL SPECIFICATIONS Technology:...
- Page 2 MOUNTING & WIRING DOOR CONTROLLER 12-24 V AC-DC Position the sensor on the Remove the bracket Connect the wires to the door bracket and fasten the screws from the sensor. Drill 2 holes controller. Choose between NO and firmly. accordingly. Fix the bracket firmly. NC contact.
- Page 3 MOUNTING TIPS Avoid vibrations. Do not cover the sensor. Avoid proximity to neon Only open the sensor lamps or moving objects. when the cable needs to be replaced. • The sensor cannot be used for purposes other than its intended use. •...
- Page 4 ACCESS CODE The access code (1 to 4 digits) is recommended to set sensors installed close to each other. SAVING AN ACCESS CODE: DELETING AN ACCESS CODE: Once you have saved an access code, you always need to enter this code to unlock the sensor. If you do not know the access code, cut and restore the power supply.
