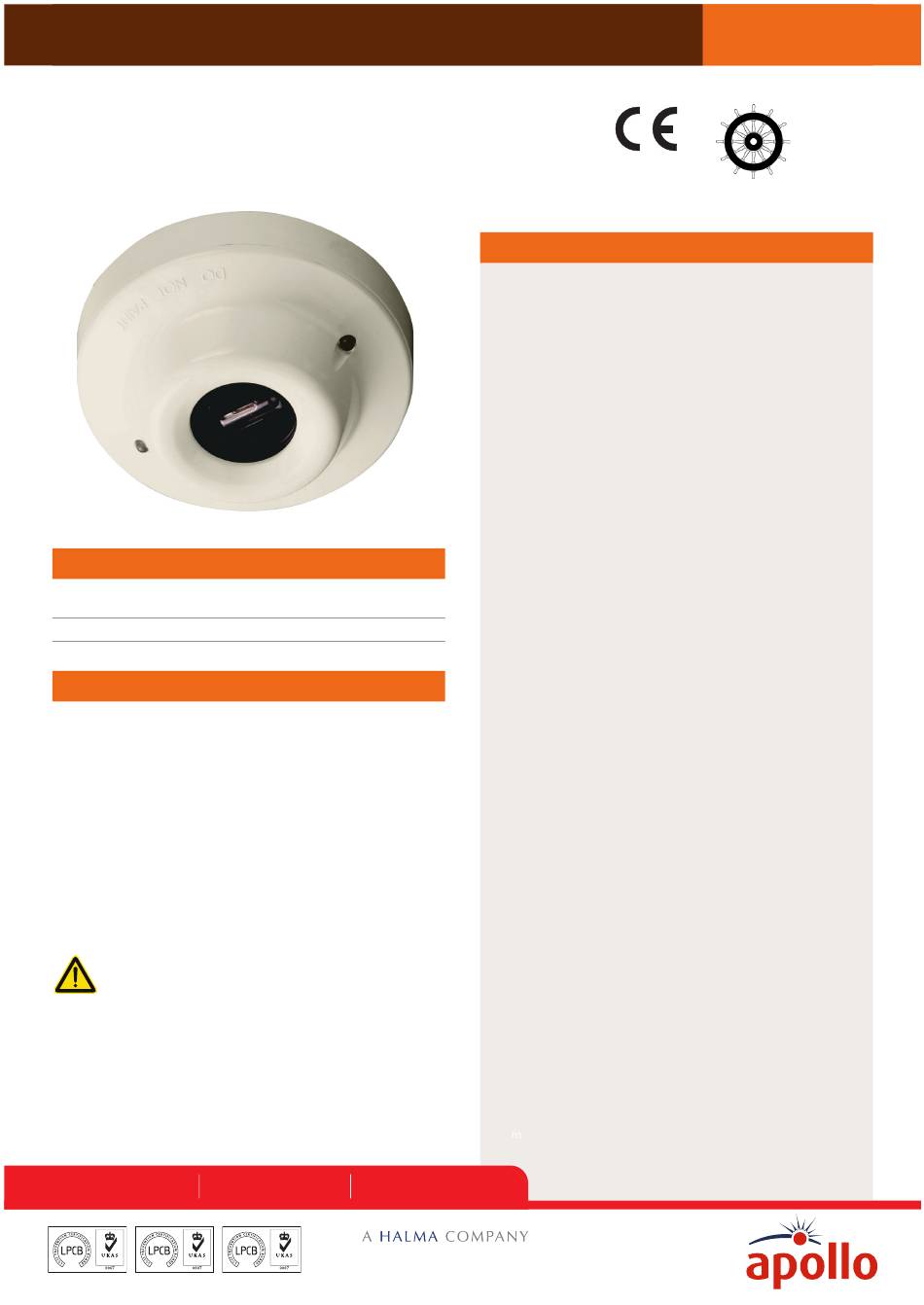

Marine Series 65 Base Mounted Flame Detectors
Marine Series 65
Base Mounted Flame Detector
Product overview
Product
Part No.
Product information

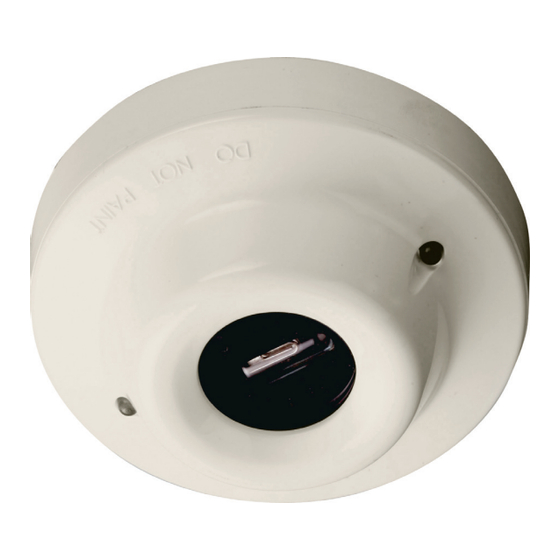

The Marine Series 65 Base Mounted Ultraviolet (UV) Flame Detector
is designed to protect areas where flaming fires may be expected.
The detector is sensitive to UV radiation emitted by flames during
combustion. Since it requires only UV radiation the flame detector
responds even to stationary flames with no flicker like cigarette
lighters and blue gas flames.
The detector is set to respond to UV radiation (185 to 260 nm)
emitted by almost all flames including those invisible to the naked
eye, e.g. hydrogen fires.
The detector has a single UV sensor with a narrow spectral
response in order to discriminate between flames and most
spurious sources of radiation and is designed for use in internal,
fully enclosed areas.
CAUTION: The detector will also detect electrical discharges
from lightning or arc welding.
36 Brookside Road, Havant Tel: +44 (0)23 9249 2412
Hampshire, PO9 1JR, UK. Fax: +44 (0)23 9249 2754
MANAGEMENT MANAGEMENT
SYSTEMS SYSTEMS
Assessed to ISO 9001:2008 Assessed to ISO 14001:2004
Cert/LPCB ref. 010 Cert/LPCB ref. 010 EMS
Marine Series Base Mounted UV
Flame Detector
55000-026MAR
Email: sales@apollo-fire.com
Web: www.apollo-fire.co.uk
© Apollo Fire Detectors Limited 2017
PRODUCT
CERTIFICATION
Cert/LPCB ref. 010
0832
Technical Data
All data is supplied subject to change without notice. Specifications are
typical at 24V, 73°F and 50% RH unless otherwise stated.
Supply voltage
Quiescent current
Alarm voltage
Alarm current
Terminal functions
Remote output characteristics
Alarm indicator
Design alarm load
Holding voltage
Holding current
Minimum voltage required to
illuminate indicators
Alarm reset voltage
Alarm reset time
Range of view
Sensitivity
Field of view
Spectral response
Operating temperature
(no condensing or icing)
Storage temperature
Relative humidity
IP rating
Dimensions
Weight
Materials: Housing White polycarbonate, V-0 rated to UL94
Terminals Nickel plated stainless steel
PP2400/2017/Issue 2
17 - 28 V dc
550 �A
6 to 33 V dc
61 mA at 28 V
54 mA at 24 V
20 mA at 10 V
L1 In and Out Supply positive
L2 Supply negative
–R Remote indicator
negative
connection
Remote is a current sink to the negative
line limited to 17 mA
Red light emitting diode
420 � in series with a 2 V drop
6 V min
10 mA min
12 V
< 1 V
1 second
0.1 m² n-heptane at 25 m
Class 1, EN 54-10
90º cone
UV 180 to 260 nm
-40ºC to +70ºC
-40ºC to +85ºC
95% non-condensing
IP66
100 mm x 40 mm detector only
100 mm x 48 mm detector and base
150 g - detector only
210 g - detector and base
