IXIO-ST: safety for pedestrian doors
IXIO-ST INDUSTRIAL: safety for industrial doors
IXIO-DT1 V: IXIO-DT1 + camera cover accessory
1.
2.
3.
4.
5.
6.
ACCESSORIES
All IXIOs
10IMB
Bracket accessory
All IXIOs
10CDA
Curved door accessory
75.5960.07 IXIO FAMILY 20230823
3
5
7
8
9

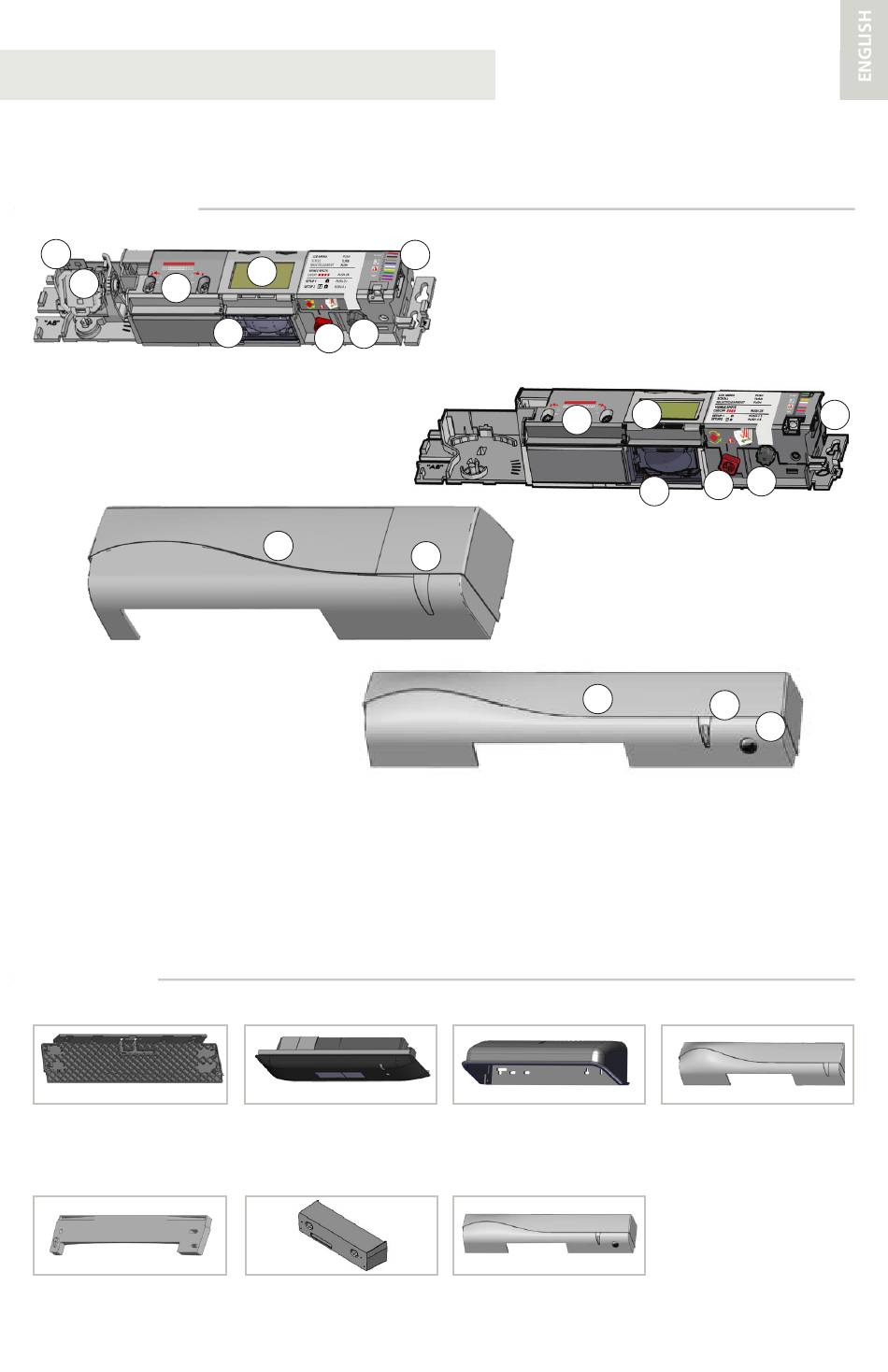

radar antenna (wide field)
radar antenna (narrow field)
LCD
AIR curtain width adjustment
AIR lenses
main connector
All IXIOs (except DT1 V)
10ICA
Ceiling accessory
All IXIOs
10IXIOSPACER
Spacer
MOTION AND PRESENCE SENSOR FOR
6
IXIO-DT1: activation and safety for pedestrian doors
IXIO-DT1 INDUSTRIAL: activation and safety for
4
11
7.
main adjustment knob
8.
AIR curtain angle adjustment knob
9.
IXIO-DT1 / IXIO ST cover
10. IXIO-DT1 V cover
11. LED
12. camera
All IXIOs (except DT1 V)
10URA
Universal rain accessory
All IXIOs
10.1279
Camera cover accessory
IXIO FAMILY
AUTOMATIC SLIDING DOORS
industrial doors
3
8
5
10
11
All IXIOs (except DT1 V)
35.1286: black cover
35.1302: white cover
35.1303: silver cover
6
7
12
Page 1 of 12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Halma BEA IXIO Series
Summary of Contents for Halma BEA IXIO Series
- Page 1 IXIO FAMILY MOTION AND PRESENCE SENSOR FOR AUTOMATIC SLIDING DOORS PRODUCT FAMILY IXIO-DT1: activation and safety for pedestrian doors IXIO-DT1 INDUSTRIAL: activation and safety for industrial doors IXIO-ST: safety for pedestrian doors IXIO-ST INDUSTRIAL: safety for industrial doors IXIO-DT1 V: IXIO-DT1 + camera cover accessory radar antenna (wide field) main adjustment knob radar antenna (narrow field)
-
Page 2: Led Signals
READ BEFORE BEGINNING INSTALLATION/PROGRAMMING/SETUP LED SIGNALS COLORS BEHAVIORS (green) LED flashes LED flashes red-green Motion detection (DT1 sensors) AUX (ST sensors) LED flashes quickly (red) LED is off Presence detection LED flashes x times INSTALLATION The sensor should be Do not cover the sensor. Avoid moving objects and Avoid highly reflective mounted securely to avoid... -
Page 3: Navigating In Menus
READ BEFORE BEGINNING INSTALLATION/PROGRAMMING/SET-UP HOW TO USE THE LCD DISPLAY DURING NORMAL FUNCTION Activation Safety Negative display = active output To adjust contrast, push and turn impulse the grey button simultaneously. During normal function only. FACTORY VALUE VS. SAVED VALUE displayed value displayed value factory value... -
Page 4: Mounting And Wiring
MOUNTING & WIRING MOUNTING Using the provided mounting template, mount the sensor, ensuring that the bottom of the sensor is within 2 inches of the bottom of the door header. Refer to Application Note 76.0035 if an IXIO Spacer is required for the given application. Route the harness using the harness clip as shown in the exploded view of the mounting illustration. - Page 5 RADAR OPENING IMPULSE FIELD (DT1 SENSORS ONLY) The size of the detection field varies according to the mounting height of the sensor. The following graphics are representations – not default settings. ANGLE 7.2 ft field size: 9 immunity: 2 from 15° to 45°, default 30 ° 7.2 ft field size: 9 immunity: 2...
- Page 6 INFRARED SAFETY FIELD ANGLE Activate the visible spots to verify the position of the AIR curtain. Visibility depends on external conditions. When spots are not visible, use the Spotfinder to locate the curtains. The distance between the inner curtain of the inside door sensor and the inner curtain of the outside door sensor should always be smaller than 8 in.
- Page 7 SETUP Set up the sensor using either push-buttons or the remote control. STEP OUT OF THE INFRARED FIELD! SETUP 1 (QUICK) either hold the knob for 2 seconds, or use the remote control buttons as specified SETUP 2 (ASSISTED) test of full door cycle + reference picture either hold the knob for 4 seconds, or use the remote control buttons as specified TEST THE PROPER OPERATION OF THE INSTALLATION BEFORE LEAVING THE PREMISES!
-
Page 8: Overview Of Settings
OVERVIEW OF SETTINGS highlighted blue = DT sensors only factory value Download the BEA DECODER app highlighted red = ST sensors only for a quick overview of settings RC BUTTONS Back More RAD: FIELDSIZE small > > > > > >... - Page 9 OVERVIEW OF SETTINGS (cont.) NOTES Note 1 Always use a screwdriver when making further AIR adjustments to the arrow position on the sensor. Note 2 DeEner = de-energized relay NO = normally open Energ = energized relay NC = normally closed Note 3 The sensor LED will briefly flash RED during monitoring communication with door control.
-
Page 10: Troubleshooting
TROUBLESHOOTING ORANGE LED flashes The sensor signals an Replace sensor. internal fault. ORANGE LED flashes The power supply voltage Check power supply voltage in diagnotistics is too low/high. menu (menu 3) of the LCD. Check wiring. ORANGE LED flashes The sensor does not receive Decrease the angle of the AIR curtains. -
Page 11: Technical Specifications
TROUBLESHOOTING (cont.) The LED and the LCD No power to sensor. Check wiring. displays are off Check for correct power supply. The reaction of Incorrect output Check output configuration setting. the door does not configuration / wiring. correspond with the Check wiring. - Page 12 TECHNICAL SPECIFICATIONS (cont.) Detection mode: DT1 SENSORS: DT1 & ST SENSORS: MOTION PRESENCE minimum detection speed: 2 in/s typical response time: < 200 ms (max: 500 ms) Technology: DT1 SENSORS: DT1 & ST SENSORS: Microwave doppler radar Active infrared with background analysis Transmitter frequency: 24.150 GHz Spot: 2"...
