JOIN OUR
COMMUNITY!
Download the BEA DECODER app
for a quick overview of settings

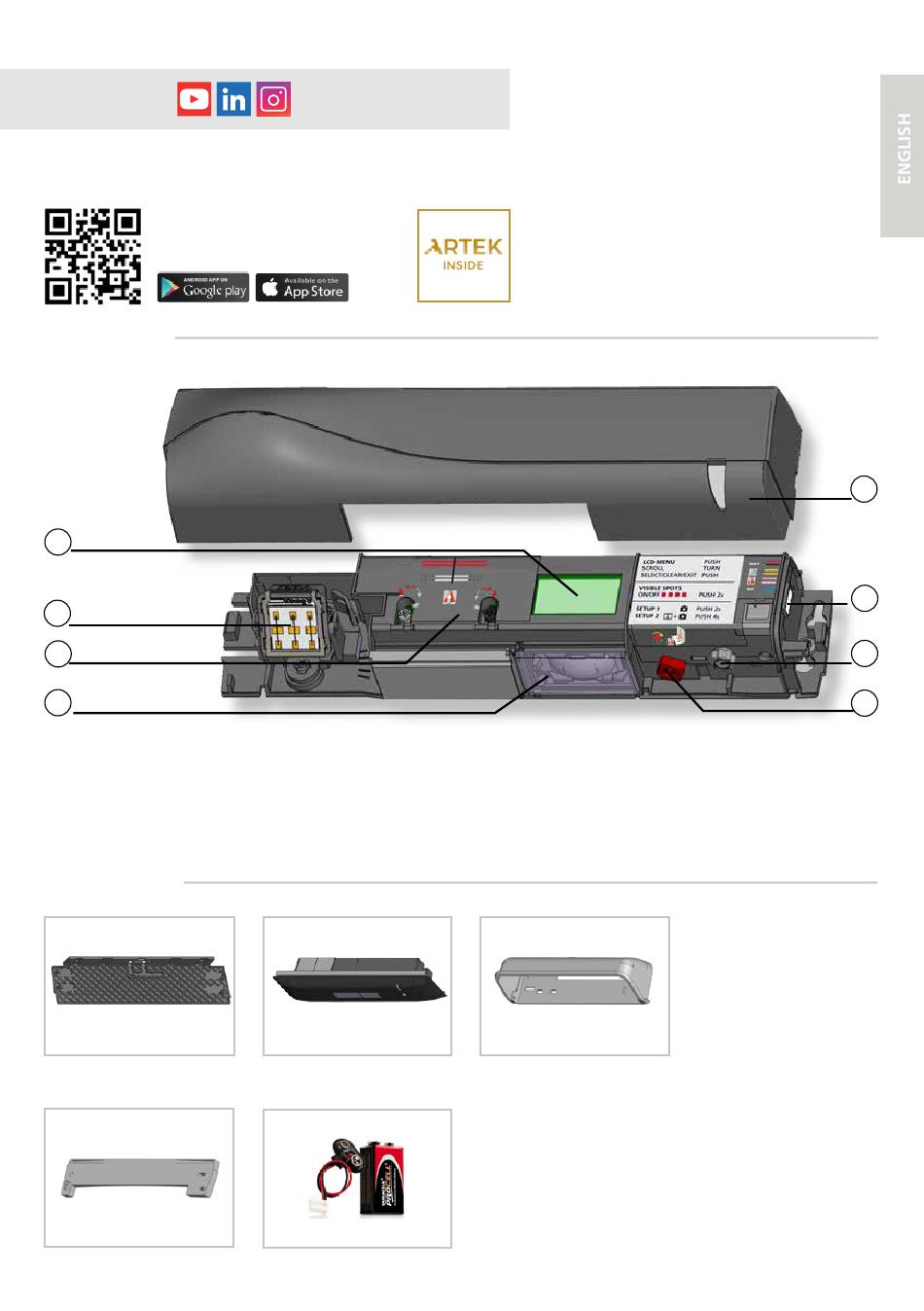

DESCRIPTION
1
2
3
4
ACCESSORIES
BA: Bracket accessory
CDA: Curved door accessory
1.
LCD
2.
radar antenna
3.
IR-curtain width adjustment
4.
IR-lenses
5.
cover
CA: Ceiling accessory
9 V battery

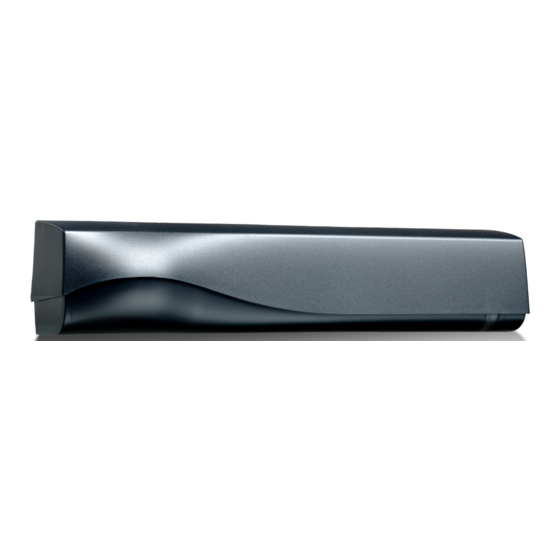

IXIO-DO1 I
OPENING & PRESENCE SENSOR
FOR AUTOMATIC INDUSTRIAL DOORS
User's Guide for software version 0600 and higher
(refer to tracking label on product)
6.
main connector
7.
main adjustment knob
8.
IR-curtain angle adjustment knob
RA: Rain accessory
5
6
7
8
Advertisement
Table of Contents
Related Manuals for Halma BEA IXIO-DO1 I
Summary of Contents for Halma BEA IXIO-DO1 I
- Page 1 JOIN OUR IXIO-DO1 I COMMUNITY! OPENING & PRESENCE SENSOR FOR AUTOMATIC INDUSTRIAL DOORS Download the BEA DECODER app User’s Guide for software version 0600 and higher for a quick overview of settings (refer to tracking label on product) DESCRIPTION main connector radar antenna main adjustment knob IR-curtain width adjustment...
- Page 2 HOW TO USE THE LCD? DISPLAY DURING NORMAL FUNCTIONING To adjust contrast, push and turn Negative display = active output Opening Presence the grey button simultaneously. impulse During normal function only. FACTORY VALUE VS. SAVED VALUE displayed value = saved value displayed value = factory value NAVIGATING IN MENUS Push to enter...
- Page 3 IXIO-DO1 I: INSTALLATION GUIDE MOUNTING & WIRING DOOR CONTROLLER POWER SUPPLY BLACK YELLOW OPENING YELLOW PINK PINK PRESENCE BLUE NOT USED BLUE * Depending on OUTPUT CONFIGURATION settings Fixation is compatible with the ACTIV8. Mount the sensor securely. RADAR OPENING IMPULSE FIELD field size: 9 field size: 9 immunity: 2...
- Page 4 INFRARED PRESENCE FIELD DOOR CLOSER CLOSER max. 9 cm AWAY AWAY If necessary, adjust the IR-curtain Activate the visible* spots to verify angle (from -7° to 4°, default 0°). the position of the IR-curtain. * Visibility depends on external conditions. When spots are not visible, use the Spotfinder to locate the curtains. Additional adjustments are possible by...
- Page 5 OVERVIEW OF SETTINGS BASIC Back More factory values for radar immunity, IR immunity, IR number and redirection shopping critical increased immunities, 1 curtain PRESETTINGS standard street env. increased immunities, redirection = motion and presence RAD: FIELDSIZE small > > > >...
- Page 6 TROUBLESHOOTING The sensor signals ORANGE LED flashes 1 x. Replace sensor. an internal fault. The power supply is too Check power supply ORANGE LED flashes 2 x. (in the diagnostics menu of the LCD). low or too high. Check wiring. Decrease the angle of the IR-curtains.
- Page 7 LED-SIGNAL Presence Motion detection detection LED flashes LED flashes LED flashes LED flashes LED is off red-green quickly x times INSTALLATION The sensor should be Do not cover the sensor. Avoid highly Avoid moving objects fixed firmly to avoid reflective objects in and light sources in extreme vibrations.
- Page 8 TECHNICAL SPECIFICATIONS Supply voltage*: 12 V - 24 V AC +/-10% (50 - 60 Hz) ; 12 V - 30 V DC +/-10% Power consumption: < 2.5 W Mounting height: 2 m to 4 m Temperature range: -25°C to +55°C; 0-95% relative humidity, non condensing IP54 (IEC/EN 60529) Degree of protection: Noise:...
