Halma BMP CONDOR Manual

Please keep for further use
Designed for colour printing
Other use of the device is outside the permitted purpose and
can not be guaranteed by the manufacturer.
The manufacturer cannot be held responsible for incorrect
installations or inappropriate adjustments of the sensor.

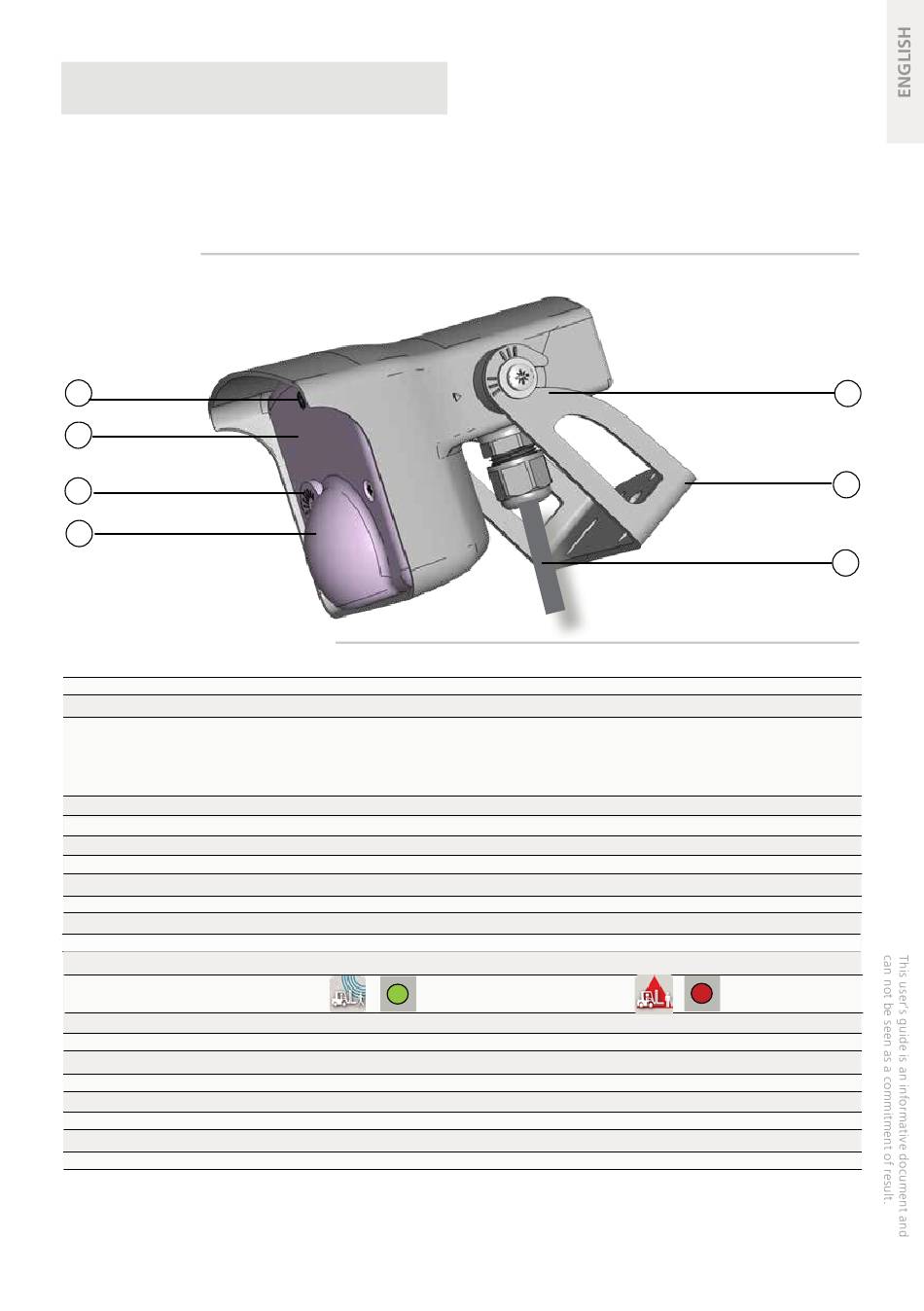

DESCRIPTION
1
2
3
4
TECHNICAL SPECIFICATIONS
Supply voltage*:
Power consumption:
Output*:
Max. contact voltage:
Max. contact current:
Max. switching power:
Output holdtime:
Mounting height:
Temperature range:
Humidity:
Degree of protection:
Dimensions:
Materials:
Weight:
Cable length:
Technology:
Transmitter frequency/wavelength:
Transmitter power density:
Detection mode:
Detection field:
Min. detection speed:
Reaction time:
Tilt angle:
Specifications are subject to changes without prior notice. Measured in specific conditions
* External electrical sources must be within specified voltages, max 15W and ensure double insulation from primary voltages.
** measured at 30°, field size 9, mounting height: 5 m
*** zone detected by spotfinder, slightly bigger than actual detection field
CONDOR
MOTION AND PRESENCE SENSOR
FOR AUTOMATIC INDUSTRIAL DOORS
CONDOR: for normal to high mounting (3.5 - 6 m)
12V to 24V AC ±10% (50 - 60 Hz); 12V to 24V DC +10% / -3%
< 3.5 W / VA
2 relays (free of potential change-over contact)
42V DC/AC peak
1 A (resistive)
15 W
0.5 s
CONDOR: 3.5 m - 6 m
depending on size and nature of target
from -30 °C to + 60 °C (except for cold storage)
0 - 95% non condensing
IP65
127 mm (L) x 102 mm (H) x 96 mm (W)
ABS and polycarbonate
400 g
10 m
microwave doppler radar
24.150 GHz
< 5 mW/cm²
motion
CONDOR: 4 x 5 m**
5 cm/s
100 ms
-8° - 22° (relative to sensor front face)
1. push buttons
2. infrared detection
3. radar angle
4. radar detection
5. sensor angle
6. bracket
7. cable
active infrared
875 nm
< 250 mW/m²
motion & presence
4 m x 4 m (emitting spots***)
5 cm/s to activate detection
250 ms
15° - 45°
5
6
7
1
