Summary of Contents for Vermeiren Eagle 620

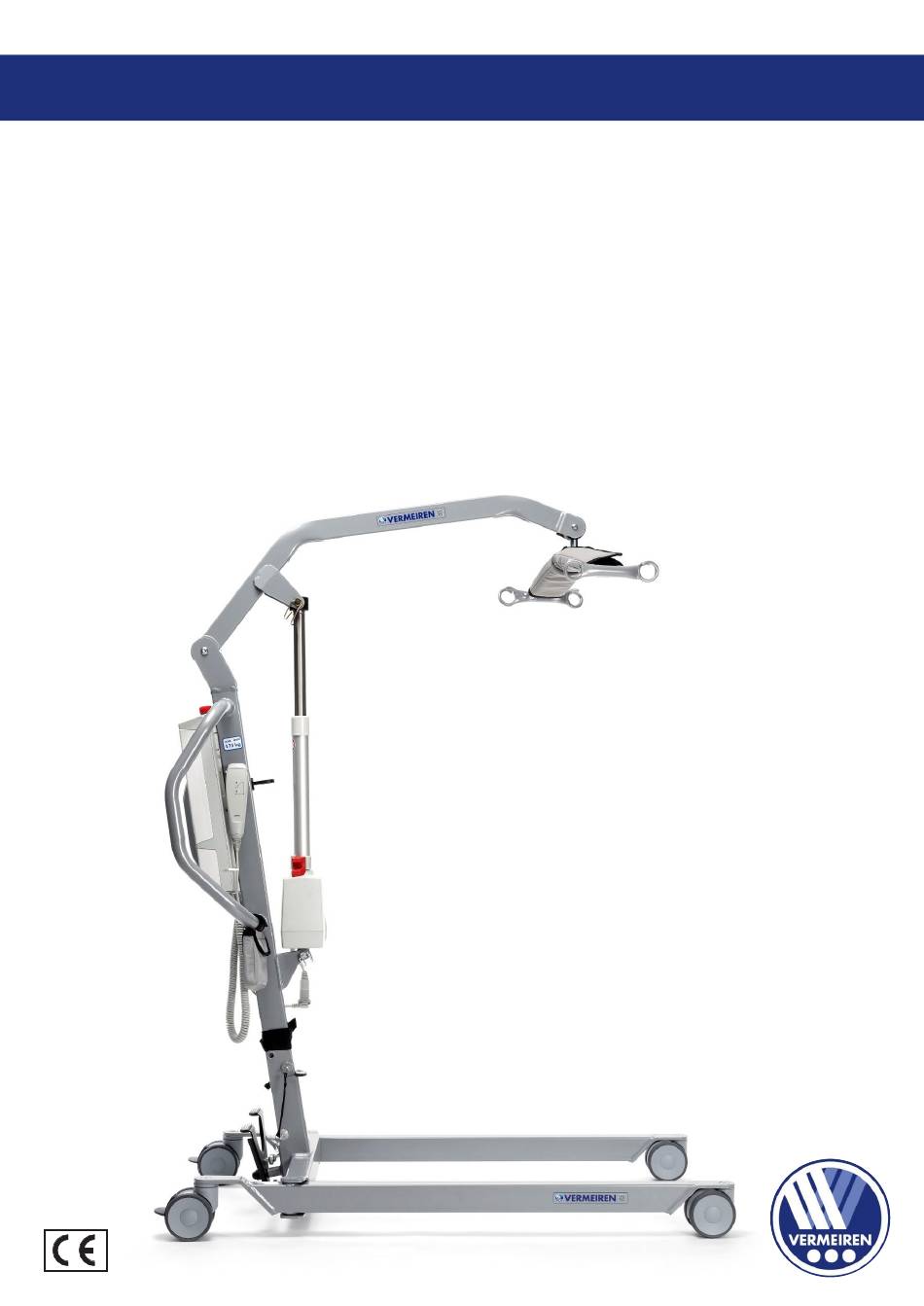

- Page 1 I N S T R U C C I O N E S I N S T R U K C J A O B S Ł U G I N Á V O D O B S L U Z E Eagle 620 Eagle 625...
-
Page 3: Table Of Contents
General safety instructions ................4 Using the patient hoist ................. 5 Operating the lift .................... 5 Slings ......................7 Eagle 620: Battery and charging ..............9 Eagle 625: battery and charging ..............10 Emergency ....................11 Installation and adjustment................ 13 Delivery ....................... -
Page 4: Preface
Vermeiren. Thank you for your trust in the products of Vermeiren. To support you on the use of this patient hoist and its operating options, this manual is offered. Please read it carefully; it will help you to get familiar with the operation, capabilities and limitations of your product. -
Page 5: Your Product

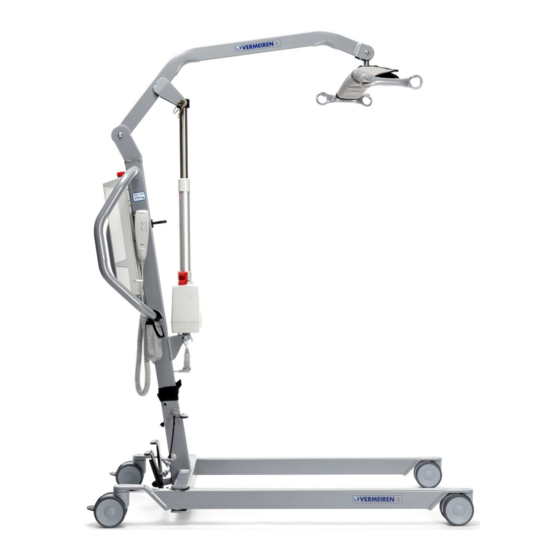

Eagle 620, Eagle 625 2022-04 Your product Your product 1. Cantilever arm 2. Spreader bar 3. Motor 4. Transport holder for spreader bar (Eagle 620) 5. Foldaway lock 6. Chassis 7. Roller 8. Control box 9. Handle for pushing 10. Manual operation Eagle 620 11. -
Page 6: Before Use
• Be careful with sources of ignition such as lit cigarettes as they may set the sling alight. In case a serious incident has occurred involving your product, notify Vermeiren or your specialist dealer as well as the competent authority in your country. -
Page 7: Using The Patient Hoist
Eagle 620, Eagle 625 2022-04 Using the patient hoist Using the patient hoist Operating the lift CAUTION Risk of injuries and/or damage • When using the lift, make sure that there is sufficient room around and above it, as the adjustment movements could otherwise lead to damage or injury. - Page 8 Eagle 620, Eagle 625 2022-04 Using the patient hoist 3.1.4 Moving the patient hoist CAUTION Risk of injuries • Be careful passing through restricted passages (e.g. doors). 1. Stand behind the patient hoist and grasp the handles (left and right, next to the control box) with both hands.
-
Page 9: Slings
• Read the full slings manual first. • Only use compatible slings approved by Vermeiren. The Eagle patient hoist must only be used with slings designed for the Vermeiren Eagle patient hoists (for 4-point speader bar). The applicability and instructions for use for the specific slings should be followed, see the separate manual. - Page 10 Eagle 620, Eagle 625 2022-04 Using the patient hoist Shoulders Legs Head (only by comfort sling) Green Green Green Yellow Yellow Yellow Black Black Black The legrests can be attached on the patient hoist according different methods. • Crossed legrests This is the most used method to attach the sling.
-
Page 11: Eagle 620: Battery And Charging
3.2.2 Position of spreader bar The spreader bar must always be perpendicular to the body of the patient. The left figure is the good method. The right figure is the wrong way. Eagle 620: Battery and charging 3.3.1 Battery charger Primary voltage... -
Page 12: Eagle 625: Battery And Charging
Eagle 620, Eagle 625 2022-04 Using the patient hoist First use First, insert the recharge cable into the appropriate connector on the control box. Then insert the mains adapter into the socket. The loading time is about 4 hours. The charger will stop the recharging process automatically when the device is fully loaded. -
Page 13: Emergency
Eagle 620, Eagle 625 2022-04 Using the patient hoist 3.4.3 External charger (OPTIONAL) The external charger shall be mounted on the wall. It is possible to charge the spare battery (optional) with this external charger and you have no waiting time to use the patient hoist when charging the batteries. - Page 14 Eagle 620, Eagle 625 2022-04 Using the patient hoist 3.5.1 Emergency stop Eagle 620 In emergencies, and during assembly and disassembly, the emergency stop is activated by pressing the red button on the right of the control box. Push on the button and turn in the direction of the arrows. If the button is fully pressed to the back turn back in the opposite direction of the arrows.
-
Page 15: Installation And Adjustment
The patient hoist is delivered fully assembled by your specialist dealer. The instructions in this chapter are for the specialist dealer. To find a service facility or specialist dealer near you, contact the nearest Vermeiren facility. WARNING: Risk of unsafe limitations - Use only the limitations described in this manual. - Page 16 Eagle 620, Eagle 625 2022-04 Installation and adjustment 2. Before assembly, put on the caster brakes to make sure that the lift cannot be moved unintentionally. Push the caster brake plate down gently to its end stop with the front of your foot.
- Page 17 Eagle 620, Eagle 625 2022-04 Installation and adjustment 4. Undo the transport strap (Velcro) of the spreader bar. This can now be moved freely to the end of the pole. 4.2.3 Dismantling WARNING: Risk of clamping - Take care that no body parts and wires get trapped, crushed or cut during dismantling.
-
Page 18: Swapping The Battery
Eagle 620, Eagle 625 2022-04 Installation and adjustment WARNING: Risk of injury - Make sure that the safety spindle is correctly inserted. Fix the pole in place by pushing the safety spindle at the end of the pole in with the pushbutton depressed until its other end clearly protrudes. -
Page 19: Maintenance
Repairs and replacements may only be undertaken by trained persons and only genuine replacement parts of Vermeiren should be used (see the maintenance manual). The last page of this manual contains a registration form for the specialist dealer to record each service. -
Page 20: Shipping And Storage
• Prevent cables from being crushed or bent with kinks. • Disconnect the power plug of the battery charger (Eagle 620). • Disconnect the patient hoist from the socket (Eagle 625). • Provide sufficient covering or packaging to protect the patient hoist against rust and foreign bodies. -
Page 21: Inspection
• Verify the amount of grease on the metal joints of movable parts • Visually check all plastic parts for cracks and brittle spots • Review the charger (Eagle 620), control box + included charger (Eagle 625) residual discharge current (A) based on VDE 0702 •... -
Page 22: Troubleshooting
Eagle 620, Eagle 625 2022-04 Troubleshooting Troubleshooting Table 1: Troubleshooting Problem Cause of problem Problem solving Noisy sound of the moving Lubrication is necessary. Lubricate the moving parts. parts (example: cantilever (Do not lubricate the actuator!) arm). Actuator makes an unusual The actuator is damaged. -
Page 23: Technical Specifications
Eagle 620, Eagle 625 2022-04 Technical specifications Technical specifications Forward direction... - Page 24 Eagle 620, Eagle 625 2022-04 Technical specifications Table 2: Technical specifications Brand Vermeiren Type Patient hoist Model Eagle 620, Eagle 625 Measurement Dimensions Description in drawing Eagle 620 Eagle 625 Lowest CAP position* 728 mm 766 mm Highest CAP position*...
- Page 25 Eagle 620, Eagle 625 2022-04 Technical specifications Brand Vermeiren Type Patient hoist Model Eagle 620, Eagle 625 Measurement Dimensions Description in drawing Eagle 620 Eagle 625 Control box Linak CBJ Home Linak CBJ2 Battery Not applicable Linak BAJ1 Manual control Linak HB7X (<...
- Page 27 Service registration form Service registration form This product (name): …………………………………….. was inspected (I), serviced (S), repaired (R) or disinfected (D): By (stamp): By (stamp): By (stamp): Kind of work: I / S / R / D Kind of work: I / S / R / D Kind of work: I / S / R / D Date: Date:...
- Page 28 Vermeiren GROUP Vermeirenplein 1 / 15 2920 Kalmthout website: www.vermeiren.com Instructions for specialist dealer This instruction manual is part and parcel of the product and must accompany every product sold. Version: C, 2022-04 Basic UDI: 5415174 123603Eagle 620 TN 5415174 123603Eagle 625 TY...
