Installation
WARNING: Before connecting any device at the installation site, verify input voltage using a multimeter. Many power supplies and low voltage
transformers operate at higher levels than listed. Any input voltage exceeding 10% of the solenoid rating may cause severe damage to the unit.
Installation wiring for the product and wiring methods shall be in accordance with the National Electrical Code, ANSI/NFPA 70.
Preparing the Strike
For 12 VAC, 12 VDC, or 16 VAC, the Plug
In Connector (pigtail) marked "12 VDC"
should be used; for 24VAC or 24 VDC, the
pigtail marked "24 VDC" should be used.
1
SELECT the appropriate plug in
connector that matches system
power and electrically CONNECT
as shown in Diagram 1, "12 VDC
to 24 VDC Conversion."
2
IF using a Latchbolt Monitor (LBM) or
Latchbolt Strike Monitor (LBSM), THEN
COMPLETE wiring in accordance with
Diagram 2, "Latchbolt Monitor" and
Diagram 3, "Strike Monitor" (see page 3).
3
VERIFY that the strike is in the
correct mode of operation.
4
IF the 4500C Series Electric Strike must
be converted to Fail Safe mode, THEN
CONVERT in accordance with Diagram 4,
"Fail Safe Conversion" (see page 3).
Preparing the Frame
Schlage L9000 and ASSA ABLOY ACCENTRA
8700 (formerly Yale Commercial) locksets
must use the template labeled "Schlage
L9000 & ASSA ABLOY ACCENTRA
Locks Only." All other locksets should
use the template labeled "Cylindrical
Lockset" or Mortise Lockset."
1
PREPARE the frame for lockset
using appropriate cutout template,
as shown (see page 4).
2
Finishing the Installation
1
CHOOSE the appropriate faceplate
for the strike as shown in Diagram 5,
"Faceplate Options" (see page 3).
2
CONNECT wires from the
power source to the strike.
3
INSTALL the electric strike unit in
jamb cutout, using #12-24 x 1/2"
Mounting Screws provided.
4
IF horizontal adjustment is needed,
THEN GO TO "Adjusting the
Horizonal" section (see page 3).
™

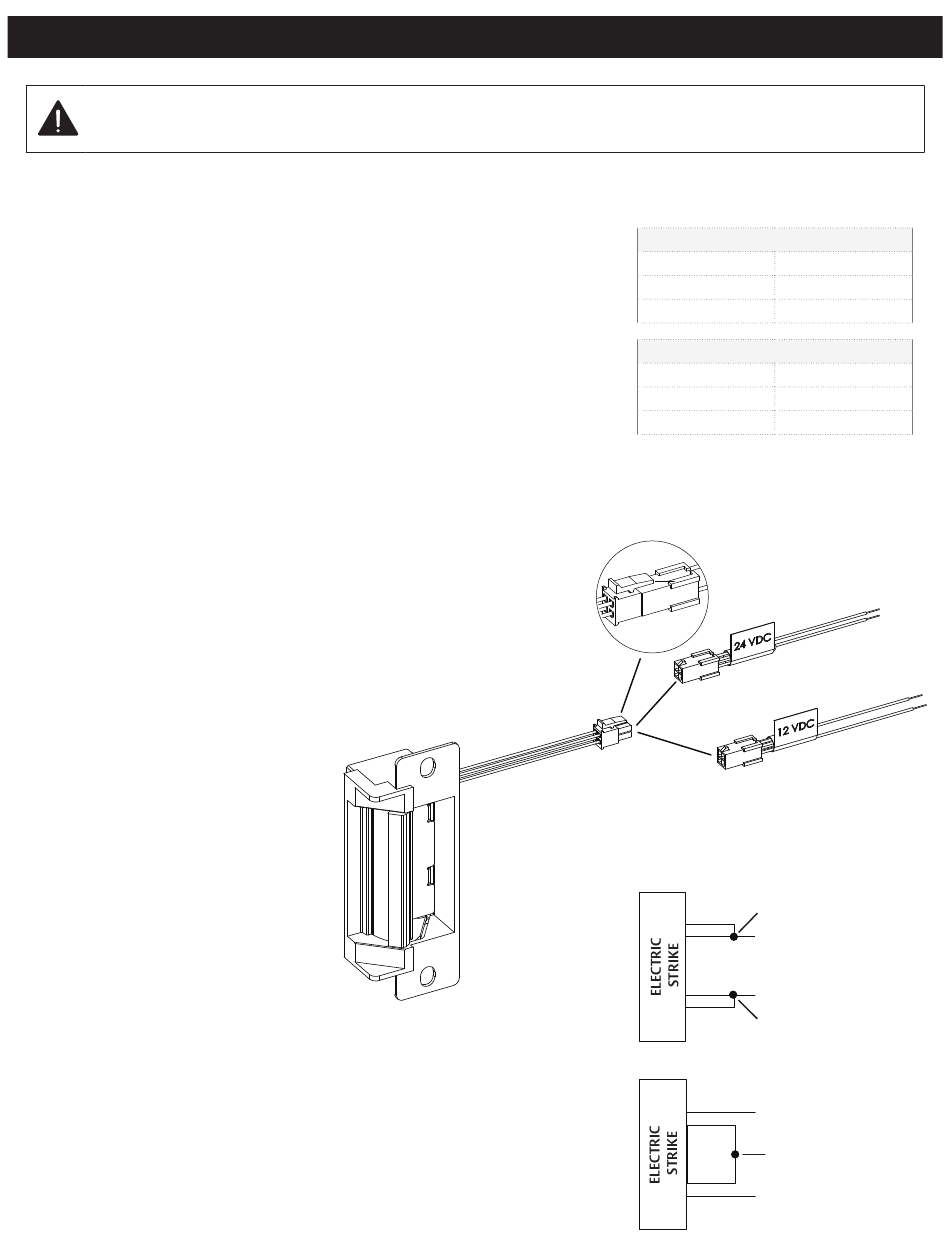

Diagram 1:
12 VDC to 24 VDC Conversion
8700
™
Wiring
Diagram 2: Latchbolt Monitor (LBM)
White Common
Orange Normally Open
Green Normally Closed
Diagram 3: Latchbolt Strike Monitor (LBSM)
Brown Common
Blue Normally Open
Yellow Normally Closed
NOTE: The state of switch is listed
for an unpowered strike and LBM in
unactuated (door open) position.
Diagram 1a:
If Connector is Missing
CONNECT
TOGETHER
RED
(+ 12 VDC)
VIOLET
BLACK (-NEG)
RED/GREEN
CONNECT
TOGETHER
RED (+ 24 VDC)
VIOLET
CONNECT
TOGETHER
BLACK
(-NEG)
RED/GREEN
