Assa Abloy SARGENT 460 Series Installation Instructions

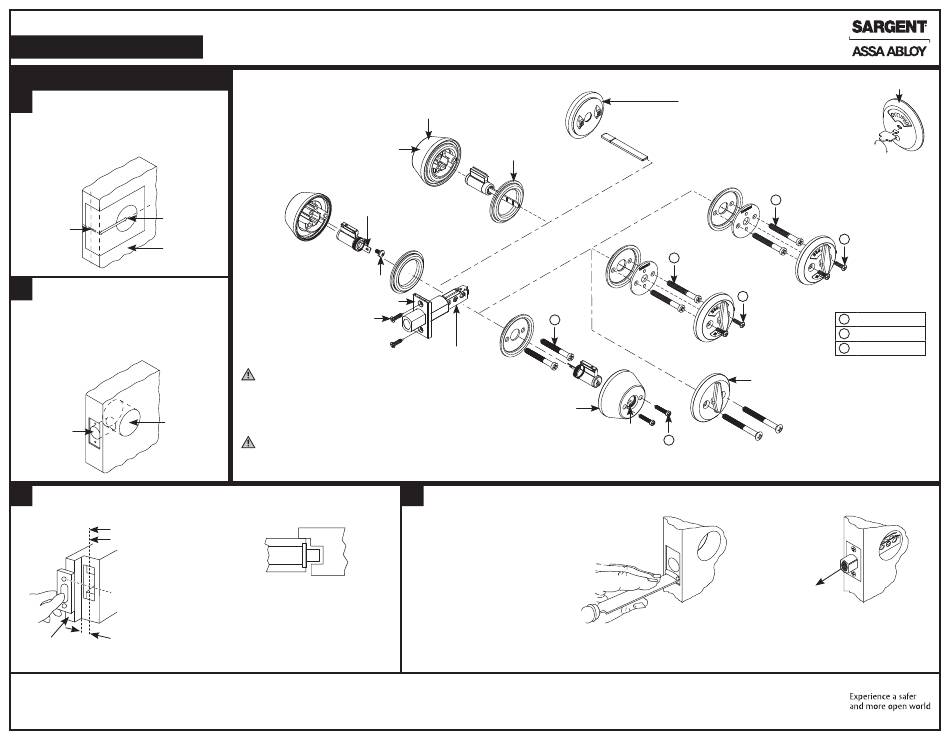

INSTALLATION INSTRUCTIONS FOR 460 SERIES CYLINDRICAL DEADBOLTS
SINGLE / DOUBLE/ INDICATOR
WOOD DOOR PREPARATION
1
MARK HOLES
Using enclosed template, mark
door as illustrated at desired lock
height and correct backset.
C L
Mark
center for
Mark center
2-1/8" hole
for 1" hole
High side of
door bevel
2
BORE TWO HOLES
Drill 2-1/8" hole through both sides
of the door as shown and 1" dia
hole into front face of the door. Be
certain holes are perpendicular.
Bore 2-1/8"
Bore 1" dia.
hole first
hole second
3
MORTISE FRAME FOR STRIKE
Centerline of strike screws
Centerline of front screws
Centerline of strike
and latch hole
Locate strike screws at
1/2 the door thickness
Stop
measured from stop
1-800-727-5477 • www.sargentlock.com
Copyright © 2022, 2024, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express
written permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
DEADBOLT NEEDS TO BE
EXTENDED AT ALL TIMES
COLLAR ORIENTATION
DURING INSTALLATION
FOR 2-1/8" HOLE
Outside Cylinder
Housing Assembly
Cylinder Tailpiece
Cylinder Screw
Deadbolt Front
Deadbolt Screw
Deadbolt Assembly
WARNING
This product can expose you to lead which is known to
the state of California to cause cancer and birth defects
or other reproductive harm. For more information go
to www.P65warnings.ca.gov.
WARNING
Attention Installer: Improper installation may result in
damage to the product and void the factory warranty.
4
LOCK
Even if strike box is not
used, recess in jamb
must be deep enough
to allow bolt to extend
its full length.
FLIP OVER
COLLAR ORIENTATION
FOR 1-1/2" HOLE
*
2
Inside Cylinder
Housing Assembly
INSTALL DEADBOLT
Insert deadbolt in hole,
keeping it parallel to face
of the door and scribe
line around face plate.
Remove deadbolt and
chisel out scribed area
to depth of 5/32" or until
face is flush with door
edge. Insert deadbolt and
fasten with two screws.
EMERGENCY KEY ATTACHED
1. Insert emergency Key into slot
2. Turn Key 90° to retract latchbolt
3. Project latchbolt to remove Key.
*
2
*
2
1 *
Thumbturn Assembly
Tab
*
3
Install 2 3/4" backset deadbolt
(with fixed bevel) to suit door
bevel Deadbolt needs to be
extended at all times during
installation.
252006071 05/24 Rev 2
Indicator
1 *
*Mounting Screws
1 * #8-32 x 7/8"
*
2
1/4" -20 x 2"
*
3 #8-32 x 1 1/8"
