Assa Abloy Yale 440F Series Installation Instructions

Assa Abloy Yale 440F Series Installation Instructions

Exit device trim, for use with exit device wood and metal doors

Advertisement

®
For use with Yale Exit Devices (Wood and Metal Doors)
441F & 446F
Non-Handed

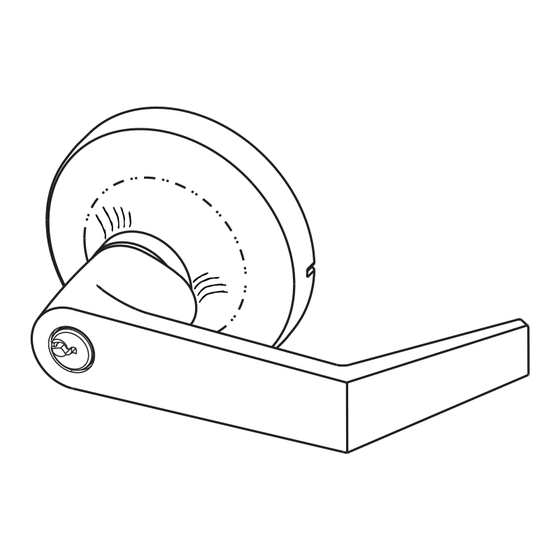

LEVER TYPE
Key In
Lever
Plain
Lever
*Field Prep: Cut tailpiece off, not to engage the device.
Attention Installer
Any retrofit or other field modification to a fire rated opening can
potentially impact the fire rating of the opening, and Yale Locks &
Hardware makes no representations or warranties concerning what
such impact may be in any specific situation. When retrofitting any
portion of an existing fire rated opening, or specifying and installing
a new fire-rated opening, please consult with a code specialist or
local code official (Authority Having Jurisdiction) to ensure
compliance with all applicable codes and ratings.
All dimensions are in inches (mm) unless otherwise noted.
An ASSA ABLOY Group brand
440F Series
Exit Device Trim
Sectional Lever Trim
TRIM
FUNCTION
441F
F03 (NL)
Key retract bolt(s)
446F
F08
Key locks/unlocks lever
Passage
Lever retracts bolt(s)
448F
F02
449F
F02
ABBREVIATION
448F & 449F
Non-Handed
DESCRIPTION
REMARKS
Free wheeling lever
Free wheeling lever
Lever always active
Dummy trim*
Free wheeling lever
Dummy trim
Rigid lever
FASTENER DESCRIPTION
PPHMS
PHILLIPS PAN HEAD MACHINE SCREW
PTHMS
PHILLIPS TRUSS HEAD MACHINE SCREW
80-8470-0441-000 (11-18)
