Exploded View - Furniture of America CM7227Q Assembly Instructions Manual

#E 16pcs
Flat Washer
Ø5/16" x 22mm
#I 1pc
Wrench 12mm
#9
#3
#2
#F 1pc
Allen Wrench 5mm
#J 2pcs
Wood tenon
Ø10 x 40mm

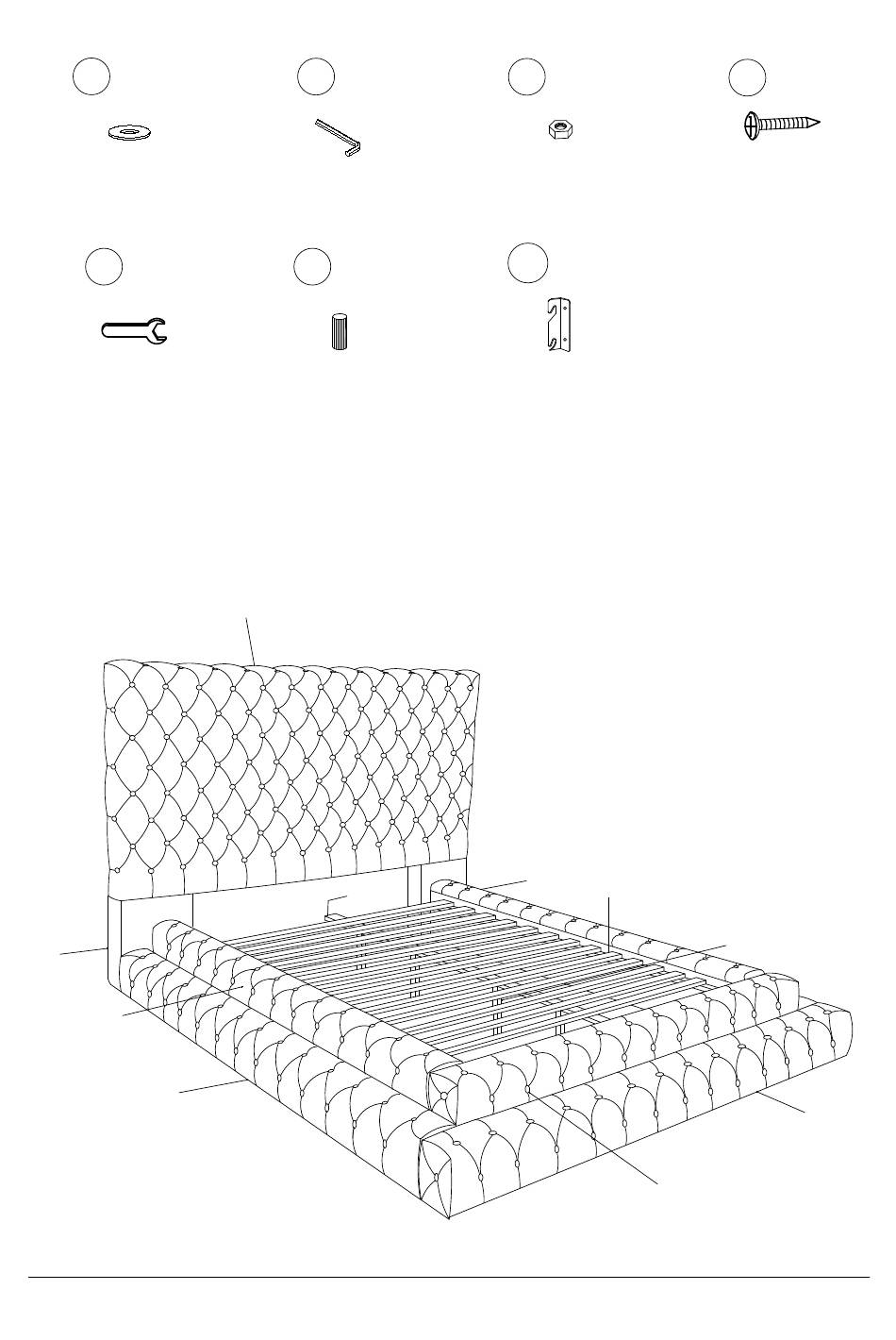

Exploded View

#1
#8
#G 16pcs
Hex Nut Ø5/16"
#K 2sets
Connection Strap (L/R)
#3
#7
6 / 11
#H 44pcs
Screw #8 x 38mm
#6
#4
#5
