VERSION
# 21-12-28
1 / 11
MODEL #
CM7227Q
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7227Q
Summary of Contents for Furniture of America CM7227Q

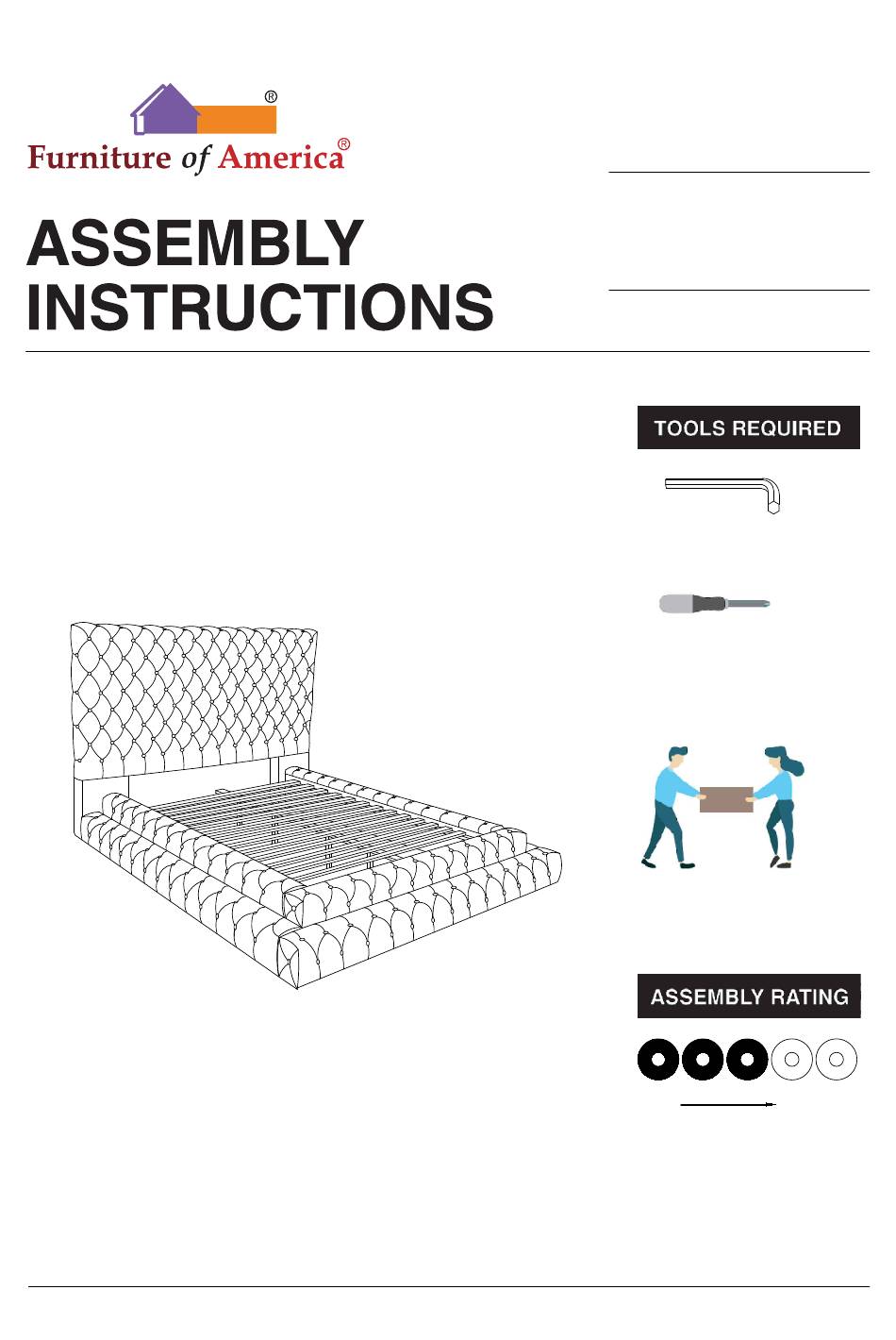

- Page 1 MODEL # CM7227Q Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 11...
- Page 5 CM7227Q #2 2pcs #3 2pcs #4 1pc #1 1pc Headboard Low Side Rail Low Footboard High Side Rail #5 1pc #6 4pcs #8 1pc #7 1set High Footboard Support leg Slat(13pcs) Support Rail #9 2pcs #10 18pcs HB Leg (L/R)
-
Page 6: Exploded View
#E 16pcs #G 16pcs #H 44pcs #F 1pc Flat Washer Screw #8 x 38mm Allen Wrench 5mm Hex Nut Ø5/16" Ø5/16" x 22mm #K 2sets #I 1pc #J 2pcs Wrench 12mm Wood tenon Connection Strap (L/R) Ø10 x 40mm Exploded View 6 / 11... - Page 7 Part #A x 16pcs Headboard #B x 16pcs #C x 32pcs #D x 16pcs #E x 16pcs Support leg(4pcs) CM7227Q-1 #F x 1pcs #G x 16pcs #H x 44pcs Slat #I x 1pc #J x 2pcs #K x 2sets Leg (18pcs)
- Page 8 ASSEMBLY INSTRUCTIONS Part #1 x1pc Part #9 x2pcs Hardware #A x8pcs Hardware #C x8pcs Hardware #E x8pcs Hardware #G x8pcs Hardware #J x2pcs Part #2 x2pcs Part #4 x1pc Part #10 x9pcs Hardware #H x9pcs 8 / 11...
- Page 9 ASSEMBLY INSTRUCTIONS Part #3 x2pcs Part #5 x1pc Part #10 x9pcs Hardware #H x9pcs Hardware #A x8pcs Hardware #C x8pcs Hardware #E x8pcs Hardware #G x8pcs 9 / 11...
- Page 10 ASSEMBLY INSTRUCTIONS Part #3 x2pcs Part #5 x1pc Hardware #B x16pcs Hardware #C x16pcs Hardware #D x16pcs Hardware #K x2sets Part #6 x4pcs Part #7 x1set Part #8 x1pc 10 / 11...
- Page 11 ASSEMBLY INSTRUCTIONS Hardware #H x26pcs 11 / 11...
