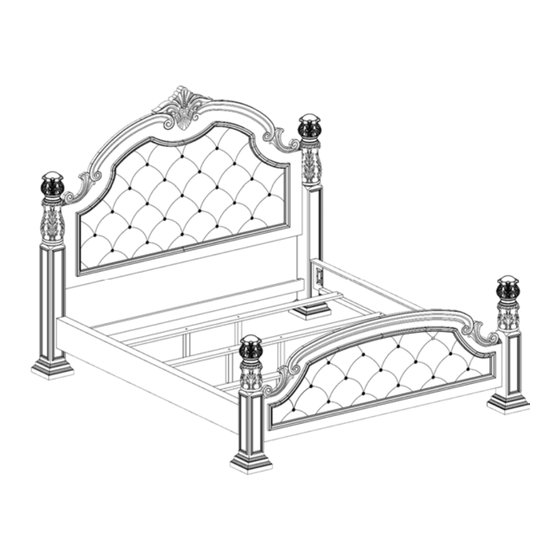

Assembly Instructions
CM-7296LA-Q/CK/EK
CM-7296DA-Q/CK/EK
Instructions Include Scrollwork Canopy (Sold and Packed Separately)
ASSEMBLY RATING
Tools Required for Assembly:
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
Wrench
assembling a specific product (with 1 being
(Included)
easy and 5 being difficult). For some
products, two persons are recommended.
Phillips Screwdriver
(Not Included)
DIFFICULT
EASY
Page 1 of 9
Rev.14-04-17
Advertisement
Related Manuals for Furniture of America Monte Vista II CM-7296LA-Q
Summary of Contents for Furniture of America Monte Vista II CM-7296LA-Q
- Page 1 Assembly Instructions CM-7296LA-Q/CK/EK CM-7296DA-Q/CK/EK Instructions Include Scrollwork Canopy (Sold and Packed Separately) ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Wrench assembling a specific product (with 1 being (Included) easy and 5 being difficult).
- Page 2 Page 2 of 9...
- Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Parts List Hardware List #1 x 1 pc #A x 8 pcs Headboard Threaded Stud #2 x 1 pc #B x 8 pcs Footboard Hex Nut...
- Page 4 Due to the size and/or weight of this product, it is highly recommended that the assembly should be done near the area of its intended location. Make sure you have enough space to move around during the assembly. ALWAYS have at least two people to help with transporting and assembling of the product to avoid any potential injury and/or damage.
- Page 5 Align the threaded end of the slat support leg (#6) with the pre-drilled holes of the slat (#5) and tighten by hand until secured. Repeat the process for attaching the remaining 6 slat support legs (#6) into the 3 slats (#5). Turn right (clockwise) to tighten Align the ends of the 4 assembled slat (#5) with the pre- drilled holes on each side of the side rails (#4).
- Page 6 Align the threaded end of the finials (#3) with the pre-drilled holes on top of the headboard (#1) AND on top of the footboard (#2) and tighten by hand until secured. Turn right (clockwise) to tighten Adjust the leveler according to the ground level. To lower or to raise the slat support leg, you need to turn the leveler clockwise or counterclockwise, respectively.
- Page 7 These instructions are for the assembly of scrollwork canopy (sold and packed separately) onto the fully assembled CM7296 bed. Parts List Hardware List #7 x 2 pcs #E x 4 pcs Headboard Post Bolt 1/4”x1/2” #8 x 2 pcs #F x 4 pcs Footboard Post Flat Washer #9 x 4 pcs...
- Page 8 If the finals (#3) are already assembled on the headboard (#1) and footboard (#2), then remove them by unscrewing the finials (#3). Align the threaded end of the two headboard posts (#7) and the two footboard posts (#8) with the pre-drilled holes on the headboard (#1) and footboard (#2) and tighten by hands until secured.
- Page 9 Align the scrollwork frame (#9) with the pre-drilled hole on top of the headboard post (#7) and hold it in place by screwing the finial (#3) through the scrollwork frame (#9) and the headboard post (#7). Do not tighten yet. Repeat the process for the remaining 3 scrollwork frames (#9) onto the other headboard post (#7) and the two footboard posts (#8).
