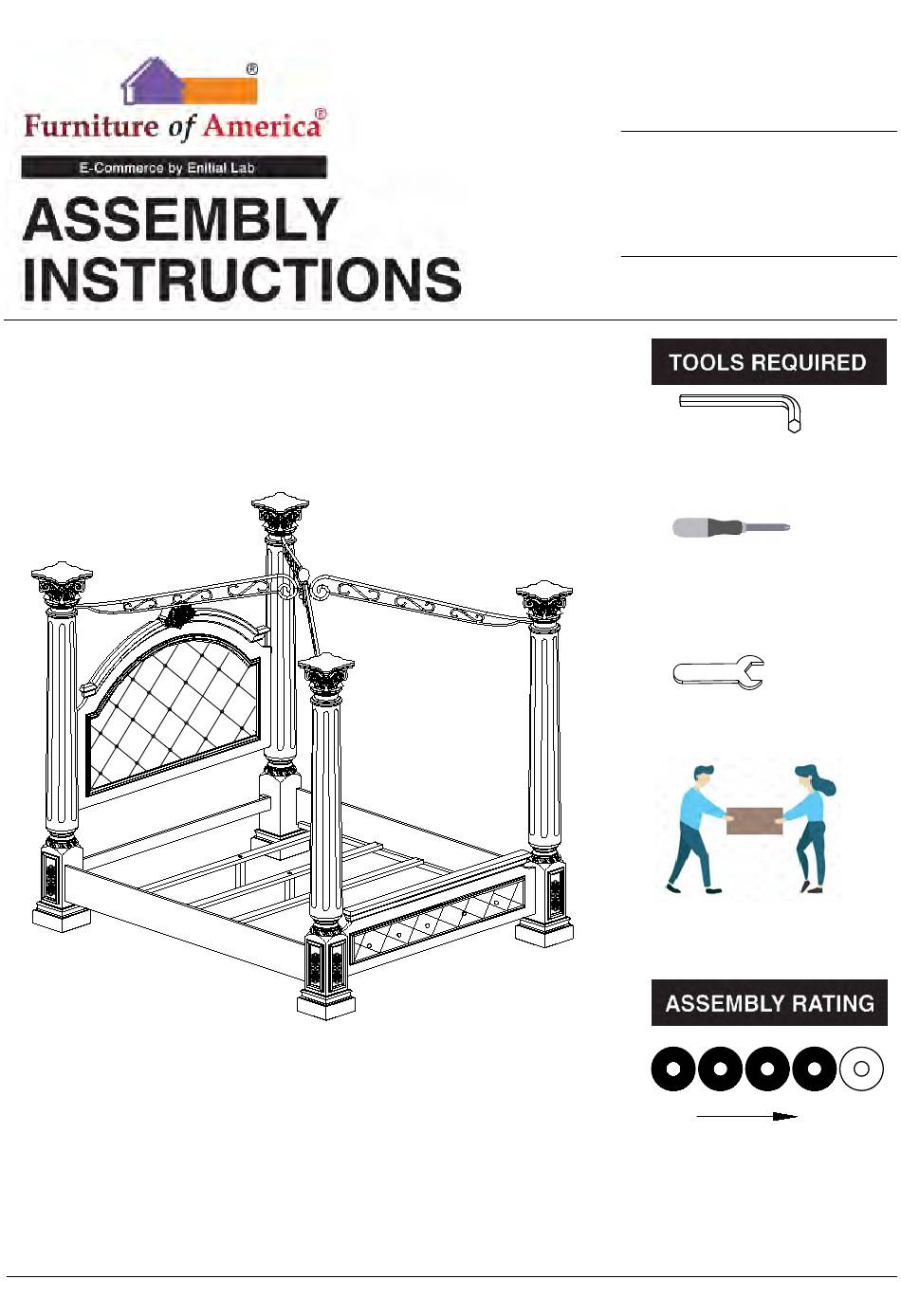

VERSION # 20- 11-11
1 / 11
MODEL #
CM7271Q
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
Wrench
(Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7271Q
Summary of Contents for Furniture of America CM7271Q
- Page 1 MODEL # CM7271Q Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) Wrench (Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 11...
- Page 5 QUEEN BED CM7271Q #A 2pcs #B 1pc #C 1pc #D 2pcs #E 1pc Headboard Pots Footboard Pots Headboard Panel Bottom Rail Footboard Panel (R&L) (R&L) #F 2pcs #G 3pcs #H 3pcs #I 4pcs #J 4pcs Bed Slats Support Matel Frame...
- Page 6 CM7271Q is packed in 6 cases Disignation Carton Part Hardware #1 1 4 pcs Headboard Panel CM7271Q- 1 #3 1 4 pcs Bottom Rail #4 1pc #2 4pcs #9 1pc Footboard Panel Matel Frame CM7271Q- 2 Mounting Plate Finial Bracket...
-
Page 7: Exploded View
Exploded View 7 / 11... - Page 8 ASSEMBLY INSTRUCTIONS Align HB posts (#A) to the HB panel (#B) and bottom rail (#C), then secure by using bolts (#A) with washers (#3). Part #A x 2pcs Part #B x 1pc Part #C x 1pc Hardware #1 x10pcs Hardware #3 x10pcs Part #D x 2pcs...
- Page 9 ASSEMBLY INSTRUCTIONS Attach threaded bolts (#6) to the posts, then align the side rails (#F) to the posts. Secure by using hex nuts (#7). Part #F x2pcs Hardware #6 x8pcs Hardware #7 x8pcs Part #G x 1pc Part #H x 1pc Attach support legs (#H) to the slats (#G).
- Page 10 ASSEMBLY INSTRUCTIONS Align slats to the side rails, then secure by using screws (#5). Hardware #5 x 6pcs Align metal frame to the posts, then secure by using finial (#I). Part #I x4pcs Part #J x4pcs 10 / 11...
- Page 11 ASSEMBLY INSTRUCTIONS Align metal frame (#J) to each other, then secure by using finial (#L) to bracket (#M). Secure holes by using bolts (#2). Part #K x1pc Part #L x1pc Part #M x1pc Hardware #2 x4pcs 11 / 11...
