Unit Installation Unit Installation; Single Din Opening Installation - Boss Audio Systems ELITE BE12ACP.WX User Manual

Unit Installation
Dash Mounting
( &
WARNING
J
See the section "Installation Warnings". (P.4)

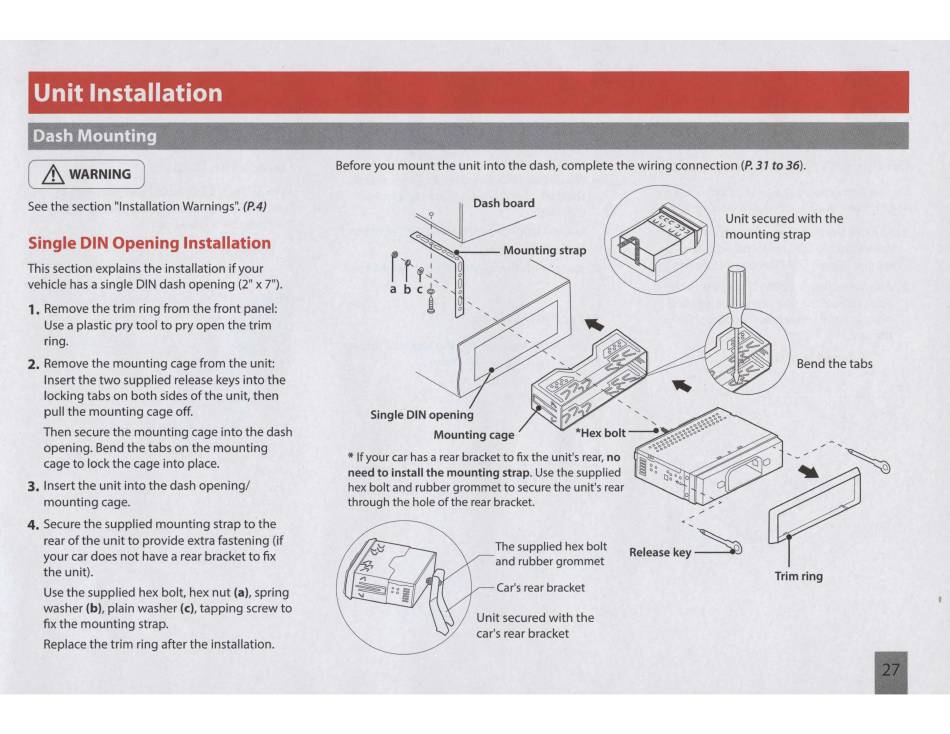

Single DIN Opening Installation
This section explains the installation if your
vehicle has a single DIN dash opening (2" x 7").
1.
Remove the trim ring from the front panel:
Use a plastic pry tool to pry open the trim
ring.
2.
Remove the mounting cage from the unit:
Insert the two supplied release keys into the
locking tabs on both sides of the unit, then
pull the mounting cage off.
Then secure the mounting cage into the dash
opening. Bend the tabs on the mounting
cage to lock the cage into place.
3.
Insert the unit into the dash opening/
mounting cage.
4.
Secure the supplied mounting strap to the
rear of the unit to provide extra fastening (if
your car does not have a rear bracket to fix
the unit).
Use the supplied hex bolt, hex nut (a), spring
washer
(b),
plain washer
(c),
tapping screw to
fix the mounting strap.
Replace the trim ring after the installation.
Before you mount the unit into the dash, complete the wiring connection (P. 31 to 36).
~
I I
Dashbo~
~
r
'
I <::S 0
c:::s !
Mounting strap
,._ I
Q
I
f
,1, o
a b c
1 '
~
I
O --- ,
'
1
Single DIN opening
Mounting cage
ex bolt
*
If your car has a rear bracket to fix the unit's rear, no
need to install the mounting strap. Use the supplied
hex bolt and rubber grommet to secure the unit's rear
through the hole of the rear bracket.
The supplied hex bolt
and rubber grommet
Car's rear bracket
Unit secured with the
car's rear bracket
Unit secured with the
mounting strap
Bend the tabs
Release key
~
Trim ring
