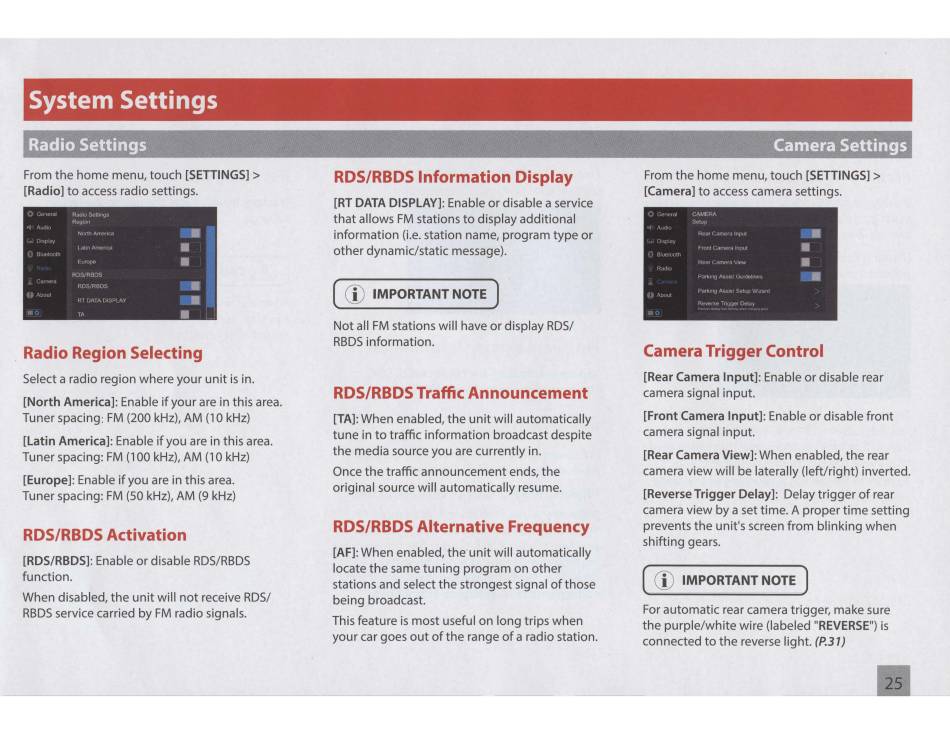

System Settings
Radio Settings Camera Settings
From the home menu, touch [SETTINGS] >
[Radio] to access radio settings.
. Radio Region Selecting
Select a radio region where your unit is in.
[North America]: Enable if your are in this area.
Tuner spacing: FM (200 kHz), AM (10 kHz)
[Latin America]: Enable if you are in this area.
Tuner spacing: FM (100 kHz), AM (10 kHz)
[Europe]: Enable if you are in this area.
Tuner spacing: FM (50 kHz), AM (9 kHz)
RDS/RBDS Activation
[RDS/RBDS]: Enable or disable RDS/RBDS
function.
When disabled, the unit will not receive RDS/
RBDS service carried by FM radio signals.
RDS/RBDS Information Display
[RT DATA DISPLAY]: Enable or disable a service
that allows FM stations to display additional
information (i.e. station name, program type or
other dynamic/static message).
( CD
IMPORTANT NOTE )
Not all FM stations will have or display RDS/
RBDS information.
RDS/RBDS Traffic Announcement
[TA]: When enabled, the unit will automatically
tune in to traffic information broadcast despite
the media source you are currently in.
Once the traffic announcement ends, the
original source will automatically resume.
RDS/RBDS Alternative Frequency
[AF]: When enabled, the unit will automatically
locate the same tuning program on other
stations and select the strongest signal of those
being broadcast.
This feature is most useful on long trips when
your car goes out of the range of a radio station.
From the home menu, touch [SETTINGS]
>
[Camera] to access camera settings.
Camera Trigger Control
[Rear Camera Input]: Enable or disable rear
camera signal input.
[Front Camera Input]: Enable or disable front
camera signal input.
[Rear Camera View]: When enabled, the rear
camera view will be laterally (left/right) inverted.
[Reverse Trigger Delay]: Delay trigger of rear
camera view by a set time. A proper time setting
prevents the unit's screen from blinking when
shifting gears.
( CD
IMPORTANT NOTE )
For automatic rear camera trigger, make sure
the purple/white wire (labeled "REVERSE") is
connected to the reverse light. (P.31)
System Settings
Radio Settings Camera Settings
From the home menu, touch [SETTINGS] >
[Radio] to access radio settings.
. Radio Region Selecting
Select a radio region where your unit is in.
[North America]: Enable if your are in this area.
Tuner spacing: FM (200 kHz), AM (10 kHz)
[Latin America]: Enable if you are in this area.
Tuner spacing: FM (100 kHz), AM (10 kHz)
[Europe]: Enable if you are in this area.
Tuner spacing: FM (50 kHz), AM (9 kHz)
RDS/RBDS Activation
[RDS/RBDS]: Enable or disable RDS/RBDS
function.
When disabled, the unit will not receive RDS/
RBDS service carried by FM radio signals.
RDS/RBDS Information Display
[RT DATA DISPLAY]: Enable or disable a service
that allows FM stations to display additional
information (i.e. station name, program type or
other dynamic/static message).
( CD
IMPORTANT NOTE )
Not all FM stations will have or display RDS/
RBDS information.
RDS/RBDS Traffic Announcement
[TA]: When enabled, the unit will automatically
tune in to traffic information broadcast despite
the media source you are currently in.
Once the traffic announcement ends, the
original source will automatically resume.
RDS/RBDS Alternative Frequency
[AF]: When enabled, the unit will automatically
locate the same tuning program on other
stations and select the strongest signal of those
being broadcast.
This feature is most useful on long trips when
your car goes out of the range of a radio station.
From the home menu, touch [SETTINGS]
>
[Camera] to access camera settings.
Camera Trigger Control
[Rear Camera Input]: Enable or disable rear
camera signal input.
[Front Camera Input]: Enable or disable front
camera signal input.
[Rear Camera View]: When enabled, the rear
camera view will be laterally (left/right) inverted.
[Reverse Trigger Delay]: Delay trigger of rear
camera view by a set time. A proper time setting
prevents the unit's screen from blinking when
shifting gears.
( CD
IMPORTANT NOTE )
For automatic rear camera trigger, make sure
the purple/white wire (labeled "REVERSE") is
connected to the reverse light. (P.31)
System Settings
�
Radio Settings
Camera Settings
From the home menu, touch
[SETTINGS]
>
[Radio]
to access radio settings.
Radio Region Selecting
Select a radio region where you r u n it is in.
[North America]:
Enable if your are in this area.
Tuner spacing: FM (200 kHz), AM ( 1 0 kHz)
[Latin America]:
Enable if you are i n this a rea.
Tuner spacing: FM ( 1 00 kHz), AM ( 1 0 kHz)
[Europe]:
Enable if you are i n this area.
Tuner spacing: FM (50 kHz), AM (9 kHz)
RDS/RBDS Activation
[RDS/RBDS]:
Enable or disable RDS/RBDS
function.
When d isabled, the u n it will not receive RDS/
RBDS service carried by FM radio signals.
RDS/RBDS Information Display
[RT DATA DISPLAY]:
Enable or d isable a service
that al lows FM stations to d isplay additional
i nformation (i.e. station na me, program type or
other dynamic/static message).
(
CD
IMPORTANT NOTE )
Not a l l FM stations will have or display RDS/
RBDS information.
RDS/RBDS Traffic Announcement
[TA]:
When enabled, the u n it will automatical ly
tune i n to traffic information broadcast despite
the media source you are currently in.
Once the traffic announcement ends, the
original source will a utomatica l ly resu me.
RDS/RBDS Alternative Frequency
[AF]:
When enabled, the u n it will a utomatically
locate the same tuning program on other
stations and select the strongest signal of those
being broadcast.
This featu re is most useful on long trips when
you r car goes out of the range of a radio station.
From the home menu, touch
[SETTINGS]
>
[Camera]
to access camera settings.
Camera Trigger Control
[Rear Camera Input]:
Enable or d isable rear
camera signal input.
[Front Camera Input]:
Enable or disable front
camera signal i nput.
[Rear Camera View]:
When enabled, the rear
camera view will be laterally (left/right) inverted.
[Reverse Trigger Delay]:
Delay trigger of rear
camera view by a set time. A proper time setting
prevents the u n it's screen from blinking when
shifting gears.
(
CD
IMPORTANT NOTE )
For automatic rear camera trigger, m a ke sure
the purple/wh ite wire (labeled
"REVERSE")
is
connected to the reverse light. (P.3 1)
