Unit Installation
Double DIN Opening Installation
This section explains the installation if your
vehicle has a double DIN dash opening (4" x 7").
1.
Remove the trim plate and the mounting
cage from the unit, as described in the
section "Single DIN Opening Installation".
2.
Attach the two supplied L-brackets to the
both sides of the unit, using the supplied
bolts and the screw holes on both sides of
the unit.
3.
Slide the unit into the dash opening. Then fix
the unit by fastening the L-brackets around
the dash opening with proper screws (not
included).
Consult a professional installer on whether
screw hole drilling is required.
4.
Replace the trim plate after the installation.
Attach the Display
As illustrated below, insert the supplied display
into the head unit until it clicks.
Detach the Display
As illustrated below, hold down two release
buttons simultaneously to unlock the display
then pull the display out.
Release buttons
Unit Installation
Double DIN Opening Installation
This section explains the installation if your
vehicle has a double DIN dash opening (4" x 7").
1.
Remove the trim plate and the mounting
cage from the unit, as described in the
section "Single DIN Opening Installation".
2.
Attach the two supplied L-brackets to the
both sides of the unit, using the supplied
bolts and the screw holes on both sides of
the unit.
3.
Slide the unit into the dash opening. Then fix
the unit by fastening the L-brackets around
the dash opening with proper screws (not
included).
Consult a professional installer on whether
screw hole drilling is required.
4.
Replace the trim plate after the installation.
Attach the Display
As illustrated below, insert the supplied display
into the head unit until it clicks.
Detach the Display
As illustrated below, hold down two release
buttons simultaneously to unlock the display
then pull the display out.
Release buttons
Unit Installation
Double DIN Opening Installation
This section explains the installation if your
vehicle has a double DIN dash opening (4" x 7").
1.
Remove the trim plate and the mounting
cage from the unit, as described in the
section "Single DIN Opening Installation".
2.
Attach the two supplied L-brackets to the
both sides of the unit, using the supplied
bolts and the screw holes on both sides of
the unit.
3.
Slide the unit into the dash opening. Then fix
the unit by fastening the L-brackets around
the dash opening with proper screws (not
included).
Consult a professional installer on whether
screw hole drilling is required.
4.
Replace the trim plate after the installation.
Attach the Display
As illustrated below, insert the supplied display
into the head unit until it clicks.
Detach the Display
As illustrated below, hold down two release
buttons simultaneously to unlock the display
then pull the display out.
Release buttons

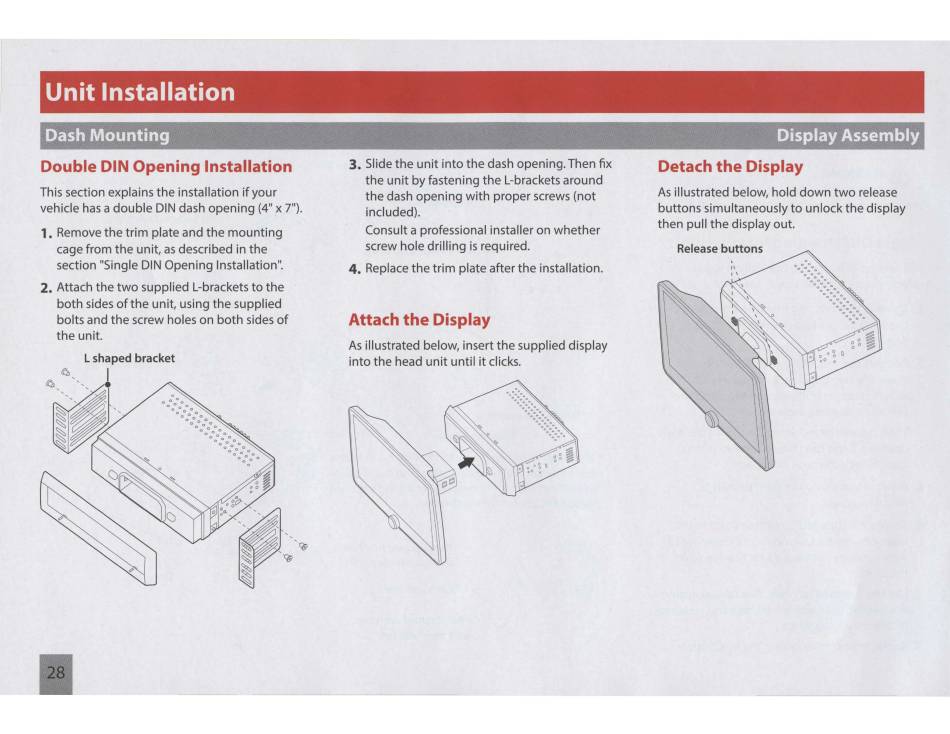

Unit I nstal lation
Dash Mounting
Double DIN Opening Installation
This section explains the installation if your
vehicle has a double DIN dash opening (4" x 7").
1 . Remove the trim plate and the mounting
cage from the u n it, as described in the
section "Single DIN Opening Instal lation".
2. Attach the two supplied L-brackets to the
both sides of the unit, using the supplied
bolts and the screw holes on both sides of
the u n it.
L shaped bracket
(Q,
'
(Q,
!
'
'
��
3. Slide the u nit i nto the dash opening. Then fix
the unit by fastening the L-brackets around
the dash opening with proper screws (not
included).
Consult a professional i nstaller on whether
screw hole dri l l i ng is required.
4. Replace the trim plate after the installation.
Attach the Display
As illustrated below, insert the supplied display
into the head u nit u ntil it clicks.
Display Assembly
Detach the Display
As i l l ustrated below, hold down two release
buttons simulta neously to un lock the display
then pull the display out.
Release buttons
