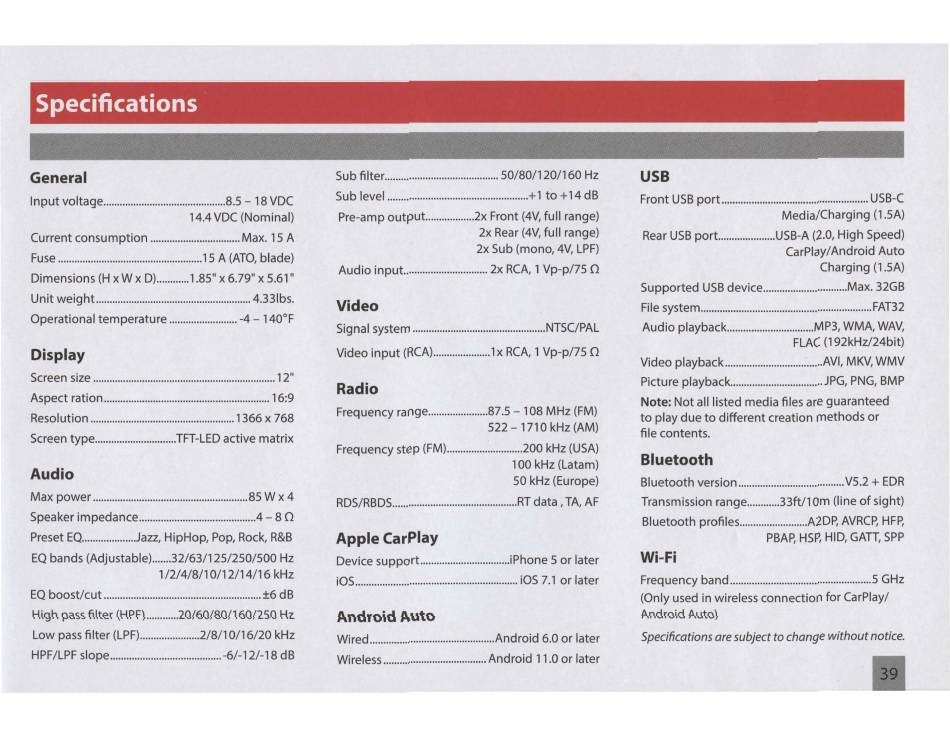

Specifications
General
I nput voltage.............................................8.5 - 1 8 VDC
1 4.4 VDC (Nominal)
Current consum ption ................................. Max. 1 5 A
Fuse .....................................................1 5 A (ATO, blade)
Dimensions (H x W x D)............ 1 .85" x 6.79" x 5.61 "
Unit weight ......................................................... 4.33lbs.
Operational temperature ......................... -4 - 1 40°F
Display
Screen size ................................................................... 1 2"
Aspect ration ............................................................. 1 6:9
Resolution ..................................................... 1 366 x 768
Screen type .............................. TFT-LED active matrix
Audio
Max power .........................................................85 W x 4
Speaker impedance ...........................................4 - 8
n
Preset EQ .................... Jazz, HipHop, Pop, Rock, R&B
EQ bands (Adjustable) .......32/63/1 25/250/500 Hz
1 /2/4/8/1 0/1 2/1 4/1 6 kHz
EQ boost/cut .......................................................... ±6 dB
High pass filter (H PF)............20/60/80/1 60/250 Hz
Low pass fi lter (LPF) ......................2/8/1 0/1 6/20 kHz
HPF/LPF slope......................................... -6/-1 2/-1 8 dB
Sub fi lter.......................................... 50/80/1 20/1 60 Hz
Sub level ....................................................+1 to +1 4 dB
...
Pre-amp output ...............2x Front (4V, ful l range)
2x Rear (4V, fu l l range)
2x Sub (mono, 4V, LPF)
...
Audio input ............................ 2x RCA, 1 Vp-p/75
n
Video
Signal system ................................................. NTSC/PAL
Video in put (RCA) .....................l x RCA, 1 Vp-p/75 0
Radio
Frequency range......................87.5 - 1 08 MHz (FM)
522 - 1 7 1 0 kHz (AM)
Frequency step (FM)............................200 kHz (USA)
1 00 kHz (Latam)
50 kHz (Eu rope)
RDS/RBDS.............................................. RT data , TA, AF
Apple CarPlay
Device support.................................iPhone 5 or later
iOS............................................................ iOS 7.1 or later
Android Auto
Wired .............................................. Android 6.0 or later
Wireless ...................................... Android 1 1 .0 or later
USB
Front USB port ...................................................... USB-C
Media/Charging (1 .SA)
Rear USB port..................... USB-A (2.0, High Speed)
CarPlay/Android Auto
Charging (1 .SA)
Supported USB device ............................... Max. 32GB
File system............................................................... FAT32
Audio playback................................ MP3, WMA, WAV,
FLAC (1 92 kHz/24bit)
Video playback .................................... AVI, MKV, WMV
Picture playback.................................. JPG, PNG, BMP
Note:
Not all listed media fi les are guaranteed
to play due to different creation methods or
file contents.
Bluetooth
Bluetooth version ....................................... V5.2 + EDR
Transmission range............33ft/1 Om (line of sight)
Bluetooth profi les......................... A2DP, AVRCP, HFP,
PBAP, HSP, HID, GATT, SPP
Wi-Fi
Frequency band ....................................................5 GHz
(Only used in wireless connection for CarPlay/
Android Auto)
Specifications are subject to change without notice.
