Android Auto Android Auto; Android Auto Introduction; Wired Connection; Wireless Connection - Boss Audio Systems ELITE BE12ACP.WX User Manual

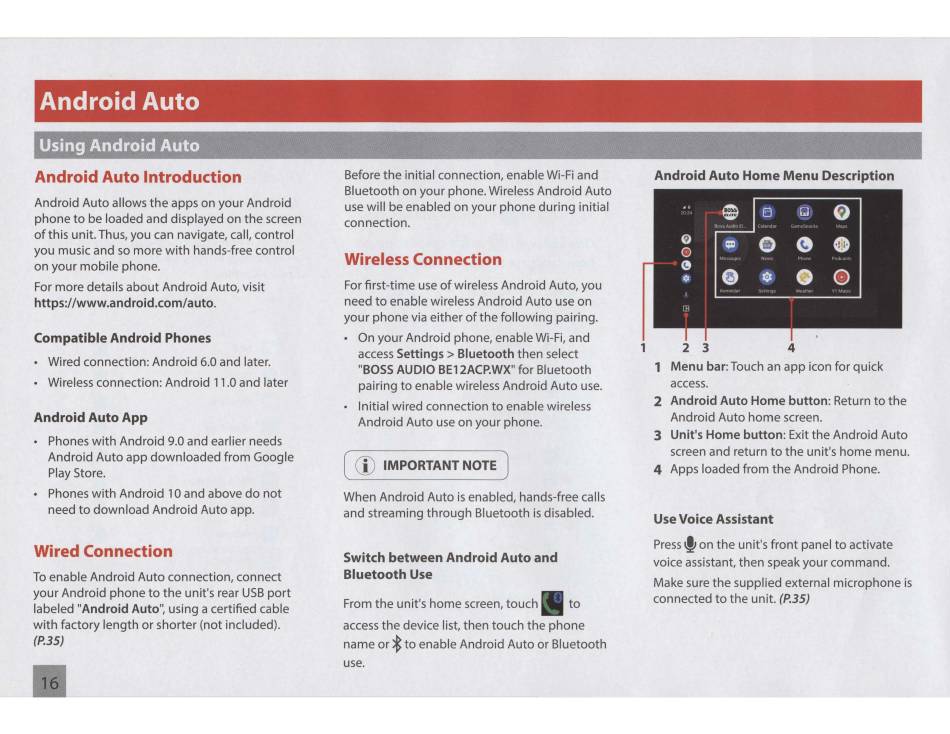

Android Auto
Android Auto Introduction
Android Auto allows the apps on your Android
phone to be loaded and displayed on the screen
of this unit. Thus, you can navigate, call, control
you music and so more with hands-free control
on your mobile phone.
For more details about Android Auto, visit
https://www.android.com/auto.
Compatible Android Phones
• Wired connection: Android 6.0 and later.
Wireless connection: Android 11.0 and later
Android Auto App
• Phones with Android 9.0 and earlier needs
Android Auto app downloaded from Google
Play Store.
• Phones with Android 10 and above do not
need to download Android Auto app.
Wired Connection
To enable Android Auto connection, connect
your Android phone to the unit's rear USB port
labeled "Android Auto'~ using a certified cable
with factory length or shorter (not included).
(P.35)
Before the initial connection, enable Wi-Fi and
Bluetooth on your phone. Wireless Android Auto
use will be enabled on your phone during initial
connection.
Wireless Connection
For first-time use of wireless Android Auto, you
need to enable wireless Android Auto use on
your phone via either of the following pairing.
On your Android phone, enable Wi-Fi, and
access Settings
>
Bluetooth then select
"BOSS AUDIO BE12ACP.WX" for Bluetooth
pairing to enable wireless Android Auto use.
• Initial wired connection to enable wireless
Android Auto use on your phone.
( CD
IMPORTANT NOTE
J
When Android Auto is enabled, hands-free calls
and streaming through Bluetooth is disabled.
Switch between Android Auto and
Bluetooth Use
From the unit's home screen, touch to
access the device list, then touch the phone
name or* to enable Android Auto or Bluetooth
use.
1
Android Auto Home Menu Description
~ e
[J
e
e
c;z,
G) '-'
-
0
,,
"'
@ @ @
I)
$
rn
2 3 4
1
Menu bar:
Touch an app icon for quick
access.
2
Android Auto Home button:
Return to the
Android Auto home screen.
3 Unit's Home button:
Exit the Android Auto
screen and return to the unit's home menu.
4
Apps loaded from the Android Phone.
Use Voice Assistant
Press
'9,
on the unit's front panel to activate
voice assistant, then speak your command.
Make sure the supplied external microphone is
connected to the unit. (P.35)
