Dvb-T2 - Jolly line multi spectrum Instruction Manual

English

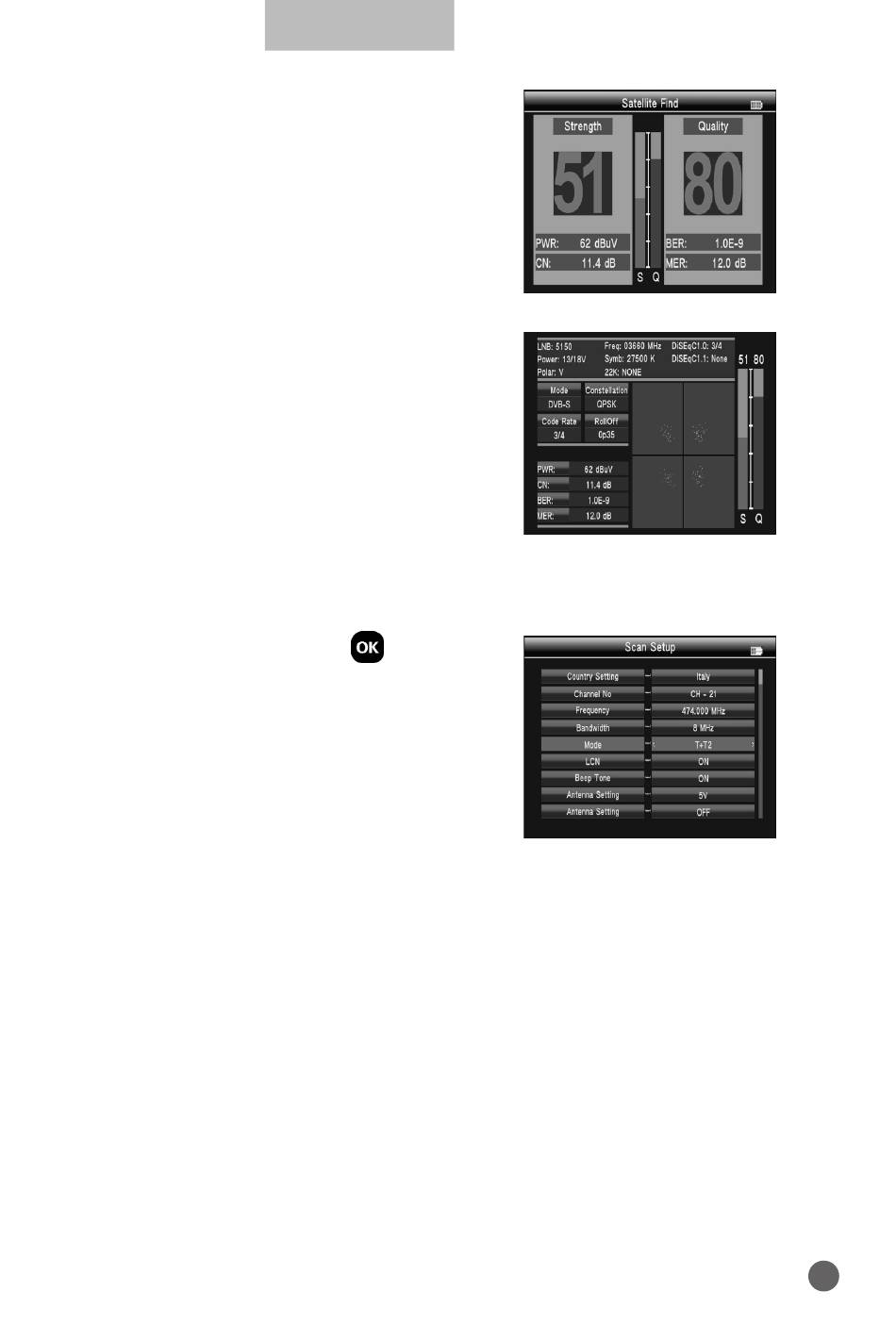

• S/Q: Press the orange key to enlarge
showing of the signal strength and quality.
• Constellation: Press the blue key into the
constellation.

3.2 DVB-T2

Select DVB-T2, then press OK into the Scan
Setup.
3.2.1 COUNTRY SETTING
Press AB key to change the default country.
3.2.2 CHANNEL NO
Press AB key to change the channel number.
3.2.3 FREQUENCY
Frequency of the current channel, input the value by using the number keys.
3.2.4 BANDWIDTH
Press AB key to change the bandwidth, we can select 5, 6, 7 or 8M.
9
