Product Overview& Illustration - Jolly line multi spectrum Instruction Manual

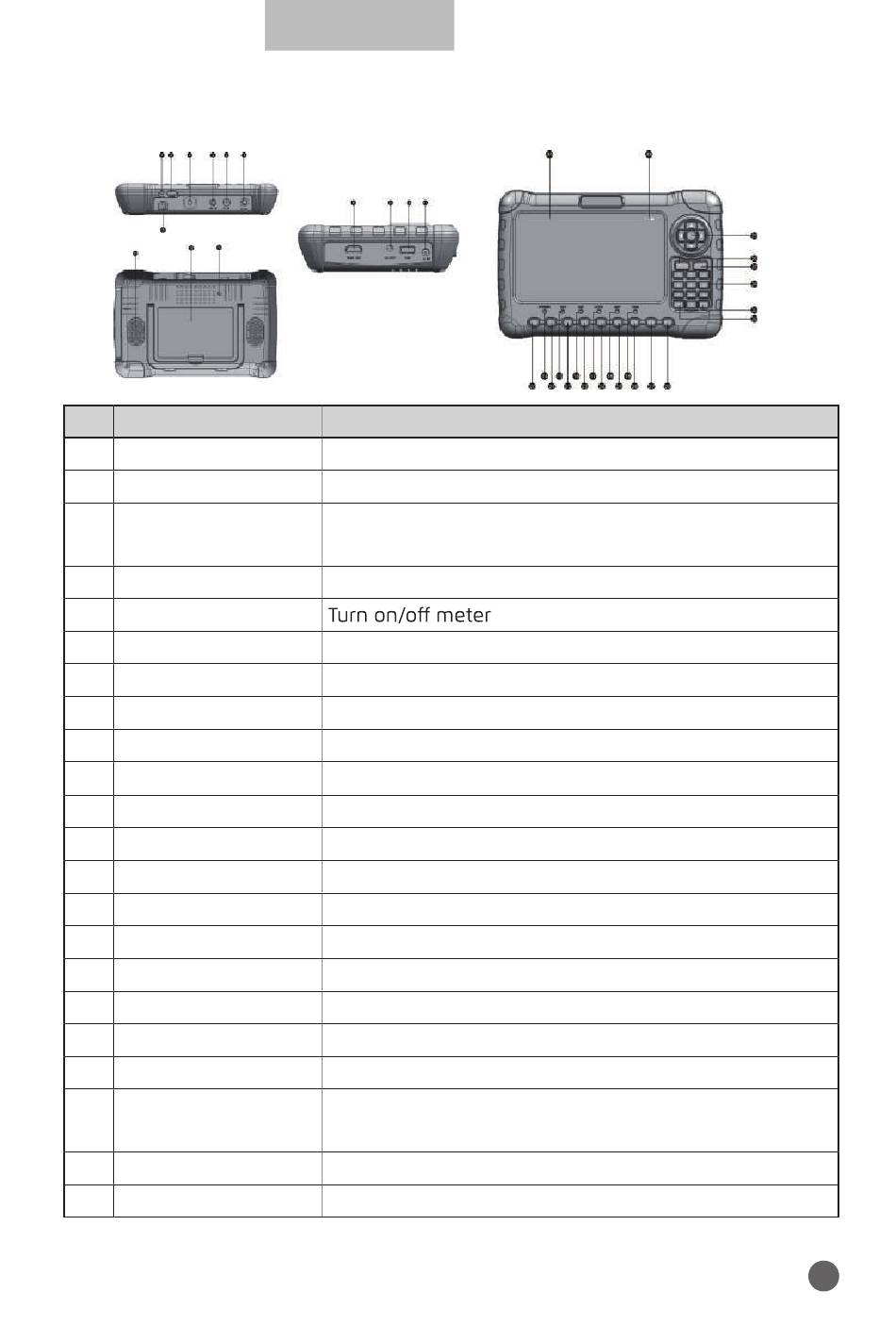

1.3 PRODUCT OVERVIEW& ILLUSTRATION
NO Description
1 LNB In
2 ANT IN
3 DC OUT
4 Optical fiber port
5 Power Switch
6 HD IN
7 AV IN
8 HD OUT
9 AV OUT
10 USB
11 DC IN
12 Torch LED
13 Speaker
14 Power
15 H/V
16 22kHz
17 LOCK
18 ANT
19 OHG (Note1)
20 AV-S
21 F1
22 F2
English
Connect to satellite antenna cable
Connect to antenna of DVB-T/T2 signal
DC 12V output for extern equipment(Please in kind
prevail)
Connect optical device
Use HD cable to connect for HD IN
Connect to AV port for meter
Use HD cable to connect for TV
Connect to AV port for TV
Connect to USB memory
Connect to adaptor input
Night lighting
Speaker integrated
Power indicator light
Vertical /Horizontal polarization voltage output light
22kHz indicator light
Signal lock indicator light
DC 12V OUT indicator light
Charger indicator light
If we connect AV IN; switch AV in/out for LCD and
speaker
Auxiliary function key
Auxiliary function key
FUNCTION
3
