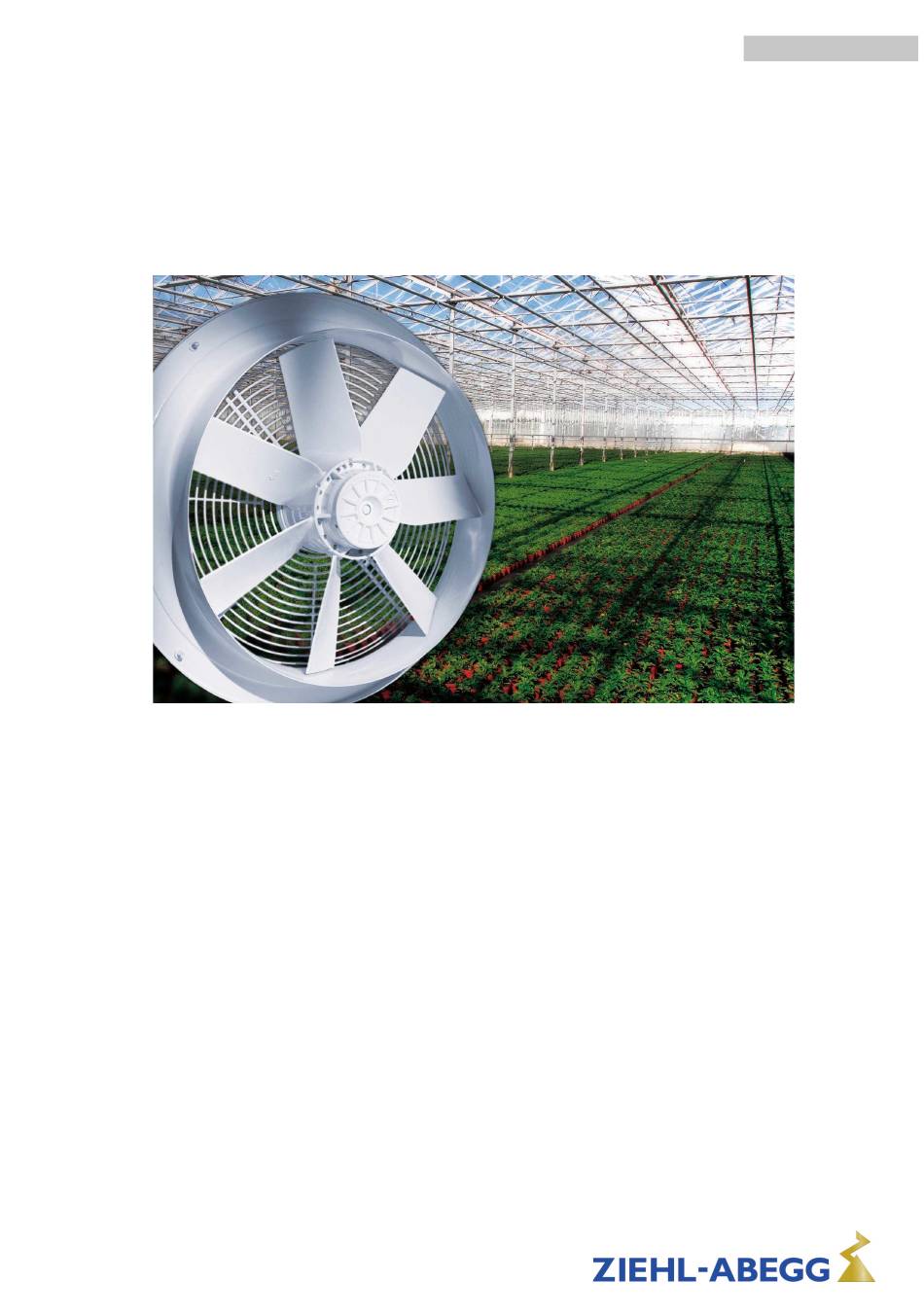

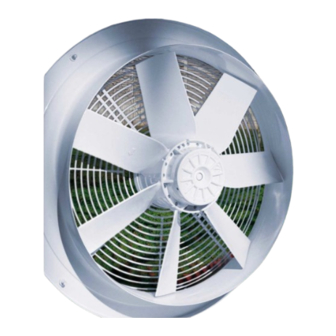

- Page 1 english Green house fans Translation of the original operating instructions Keep for reference! L-BAL-F039-GB 2023/19 Index 008 Part.-No. 00296810-GB...
-
Page 2: Table Of Contents
Translation of the original operating instructions Green house fans Content General notes ..........Meaning of the operating instructions . - Page 3 Translation of the original operating instructions Green house fans 5.4.1 Electronic voltage controllers (phase cutting) ... 5.4.2 Frequency inverter ......Commissioning .
-
Page 4: General Notes
These operating instructions contain copyright protected information. The operating instructions may be neither completely nor partially photocopied, reproduced, translated or put on data medium without previous explicit consent from ZIEHL-ABEGG SE. In- fringements are liable for damages. All rights reserved, including those that arise through patent issue or registration on a utility model. -
Page 5: Safety Instructions
Translation of the original operating instructions Green house fans Safety instructions 2 Safety instructions 2.1 Intended use Caution! • The fans are only intended for the conveyance of air or mixtures similar to air. • Any other use above and beyond this is considered not for the intended purpose unless agreed otherwise by contract. -
Page 6: Explanations Of Symbols
Translation of the original operating instructions Green house fans Safety instructions 2.3 Explanations of symbols Safety instructions are highlighted with warning triangles and are depicted according to the degree of hazard as follows. Caution! General hazardous area. Death or severe injury or significant property damage can occur if the corresponding precautions are not taken! Danger due to electric current Danger by dangerous, electric voltage! Death or severe injury can occur if the... -
Page 7: Work On The Device
ZIEHL-ABEGG.These parts were specifically designed for the device. There is no guarantee that parts from non-original sources are designed and manufactured in correspondence with load and safety requirements. Parts and optional equipment not supplied by ZIEHL-ABEGG are not approved by ZIEHL-ABEGG for use. L-BAL-F039-GB 2023/19 Index 008 Part.-No. -
Page 8: Operator's Obligation Of Diligence
3.2 Note on the ErP directive ZIEHL-ABEGG SE wishes to point out that, based on the directive (EU) no. 327/2011 of the Commission of 30th of March 2011 for enforcing directive 2009/125/EC (hereinafter L-BAL-F039-GB 2023/19 Index 008 Part.-No. -
Page 9: Transport, Storage
All ErP-relevant information comprises measurements which are determined using a standardised measurement set-up. More details can be obtained from the manufacturer. Further information about the ErP directive (Energy related Products-Directive) can be found on www.ziehl-abegg.de search key: "ErP". 3.3 Transport, storage Caution! •... -
Page 10: Mounting
Translation of the original operating instructions Green house fans Mounting 4 Mounting 4.1 General notes Caution! • Mounting is only to be undertaken by trained service personnel. The system manufacturer or the machine builder and/or the user is responsible that the inherent installation and security information are harmonized with the valid standard and guidelines (EN ISO12100 / 13857). -
Page 11: Zaplus Fans
For a version with a square rear wall (design Q), removal of this square plastic plate is prohibited. 4.4 Version with separate junction box For products supplied by ZIEHL-ABEGG with a separate junction box, note the following information. 1 Separate junction box made of plastic or metal Lid screws Tightening torque: Plastic box 1.3 Nm/12 Lb In, metal box... -
Page 12: Assembly In A Humid Atmosphere
Translation of the original operating instructions Green house fans Electrical installation 4.5 Assembly in a humid atmosphere Information If the device is not in use for longer periods in a humid atmosphere, it is recommended to operate the motor/fan for at least 2 hours every month at 80-100 % of maximum speed to remove any moisture that has penetrated inside. -
Page 13: Mains Connection For 1 ~ Types
Translation of the original operating instructions Green house fans Electrical installation " Lay connecting cable in the cable duct. 5.2.1 Mains connection for 1 ~ types Connection with mains plug – do not open the terminal box! 5.2.2 Mains connection for 1 ~ types Mains connection to: PE, L1, L2 and L3. -
Page 14: Speed Control
filter. 5.4.2 Frequency inverter • ZIEHL-ABEGG axial fans are suitable for operation with frequency inverters if the following points are complied with: – Between the inverter and the motor, sinusoidal filters should be incorporated which are effective for all phases (sinusoidal output voltage, phase against phase, phase against protective conductor)as offered by manufacturers. -
Page 15: Commissioning
3. Check the system for resonances. If they lead to unacceptably high vibrations on the fan, the system must not be started up. 4. Fans from ZIEHL-ABEGG SE are delivered balanced in accordance with DIN ISO 21940-11 for the appropriate fan category in accordance with ISO 14694. -
Page 16: Troubleshooting
Translation of the original operating instructions Green house fans Troubleshooting 7 Troubleshooting 7.1 Possible causes and remedial measures Type of error Possible cause Remedial measures Fan does not run Mains voltage failure Check linevoltage (anymore) Failure of a phase Earth fault Check the motor connection and mains voltage Coil closure Replacing the motor / fan... -
Page 17: Service Work
Check the blade(s) for damage, contamination or ice formation See “Impeller blocked or dirty” unusual noises ball bearing damaged/worn Replacement of ball bearings by ZIEHL-ABEGG re- quired Impeller / blade drags / When indicated clear foreign bodies / dirt from the fan scrapes See “Impeller blocked or dirty”... - Page 18 Check the impeller, in particular the weld-seams, for possible cracks. • Repair, e.g. by welding is prohibited! • Bolted-on wheels and/or wings may only be replaced by authorised ZIEHL-ABEGG SE staff. The manufacturer shall not be liable for damage caused through improper repair work. •...
-
Page 19: Cleaning
Translation of the original operating instructions Green house fans Service work 8.2 Cleaning Danger due to electric current Voltage supply for motor must be interrupted and secured against restoration! Clean the fans`s flow area. Caution! • Do not use any aggressive, paint solvent cleaning agents when cleaning. •... -
Page 20: Enclosure
Translation of the original operating instructions Green house fans Enclosure 9 Enclosure 9.1 Technical data Mains voltage 1 ~ 230 V, 50/60 Hz (see rating plate) 3 ~ 400 V, 50/60 Hz Duty type of motor/fan Continuous operation with occasional starts (S1) according to DIN EN 60034-1:2011-02. -
Page 21: Connection Suggestion: 3 ~ Motors With Motor Protection Unit S-Dt
Translation of the original operating instructions Green house fans Enclosure 9.2 Connection suggestion: 3 ~ motors with motor protection unit S-DT • Total motor protection: Automatic cut-off by thermocontact actuation motor overtemper- ature. Button for Reset after malfunction. • Line protection: A thermal over current sensor and a magnetic short circuit releasing elements are the parts of the integral line protection. -
Page 22: Ce Declaration Of Conformity
Translation of the original operating instructions Green house fans Enclosure CE declaration of conformity - Translation - (english) ZA89-GB 2022/17 Index 008 Manufacturer: ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau Germany The products: • Axial fan FB..., FC..., FG..., FN..., ZG..., ZN... Motor type: •... - Page 23 Green house fans Enclosure The following persons are authorized to compile the technical documents, address see above. Künzelsau, 27.04.2022 (Location, date of issue) ZIEHL-ABEGG SE ZIEHL-ABEGG SE Tobias Gauss Moritz Krämer Deputy Head of Technics Ventilation Head of Electrical Systems...
-
Page 24: Ukca Declaration Of Conformity
Green house fans Enclosure UKCA Declaration of - Original - (english) Conformity ZA89_UK-GB 2022/17 Index 004 Manufacturer: ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau Germany The products: • Axial fan FB..., FC..., FG..., FN..., ZG..., ZN... The motor type: • Asynchronous internal or external rotor motor •... - Page 25 Green house fans Enclosure The following persons are authorized to compile the technical documents, address see above. Künzelsau, 27.04.2022 (location, date of issue) ZIEHL-ABEGG SE ZIEHL-ABEGG SE Tobias Gauss Moritz Krämer Deputy Head of Technics Ventilation Head of Electrical Systems...
-
Page 26: Manufacturer Reference
- ventilation technology. phone: +49 (0) 7940 16-800 Email: fan-controls-service@ziehl-abegg.de Our worldwide contacts are available in our subsidiaries for deliveries outside of Ger- many, see www.ziehl-abegg.com. L-BAL-F039-GB 2023/19 Index 008 Part.-No. 00296810-GB 26/26...
