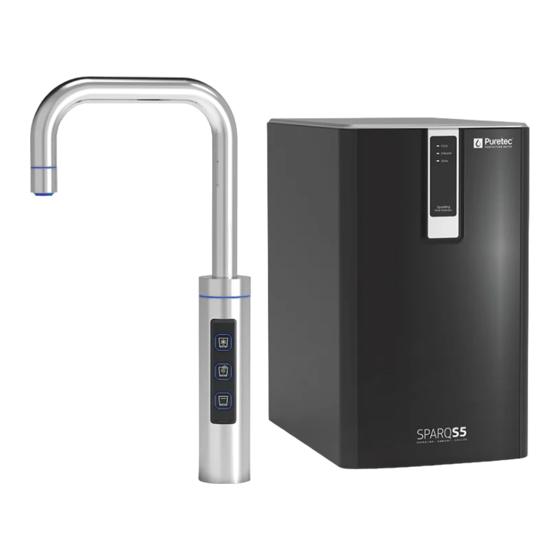

Summary of Contents for Puretec Sparq S5
- Page 1 User Guide Sparq S5 WMTS 105 Certificate No. 23291 Sparkling, Chilled & Ambient Water Filter System Australian Certification Services For correct operation & installation, it is essential to observe these instructions. JUN2022...
-
Page 2: Table Of Contents
Figure 4 - How To Use Quick Connect Fittings ................13 Figure 5 - SmartTee™ Quick Connect Fitting ...................14 Installation................................15 Cold & Sparkling Water Commissioning ....................16 Gas Replacement ............................17 Filter Replacement ............................18 Troubleshooting ...............................19 Warranty ................................20 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022... -
Page 3: Puretec Customer Service
Introduction Puretec Customer Service Thank you for purchasing a Puretec Sparq S5 Drinking Water Appliance. The Sparq S5 is a proven performer manufactured from only quality materials and components. It will give years of reliability and trouble-free operation if maintained properly. -
Page 4: Before Installation
Australian Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4) • The Sparq S5 system is designed for mains/towns water supply only. • Caution: Do not use with water that is microbiologically unsafe or without adequate disinfection before or after the system. -
Page 5: Parts Included
Note: *Where maximum line pressure exceeds 500 kPa, the supplied multivalve must be installed to comply with Australian Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4) ˇGlass size is based on 200ml. Copyright © Puretec Pty Ltd 2022 Puretec Sparq S5 User Guide... - Page 6 System Identification Figure 1 - Dimensions 93 mm min. 230 mm 110 mm 150 mm air gap 197 mm A Ø26mm hole is required for faucet (Max. 30mm). 45 mm Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
- Page 7 System Identification Figure 2 - CO Bottle Pressure Gauge Pressure Regulator Tube (Black) Bottle TOP VIEW Pressure Gauge Pressure Regulator Bottle SIDE VIEW Copyright © Puretec Pty Ltd 2022 Puretec Sparq S5 User Guide...
- Page 8 Clearance Envelope Warm air IN via cabinet floor cutout or kickboard ventilation grille. NOTE: Clearance at the back of the until from the wall needs to be 150 mm. Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
- Page 9 Fit the upper cabinet rail (where the cabinet door rests) with 3 mm silicon door buffers. This will allow for the warm air to be expelled from the cabinet (see Fig. 4). Copyright © Puretec Pty Ltd 2022 Puretec Sparq S5 User Guide...
-
Page 10: Ventilation
(not included) in place of the kickboard ventilation grille. Figure 5 - Cutouts C. Cabinet Floor Cutout A. Cabinet Floor Cutout B. Kickboard Ventilation Cutout Kickboard Ventilation Grille 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022... - Page 11 WATER OUT WATER IN Multivalve (Pressure Limiting Valve) Unit Power Supply Z1 Filter Cartridge & Water Inlet Connection Mounting Bracket (Blue) Note: All cold water lines are 1/4" tube. Copyright © Puretec Pty Ltd 2022 Puretec Sparq S5 User Guide...
-
Page 12: How To Operate The Tap
(inside the collet). chamfer tube end to prevent O-Ring seal being damaged. 3. Tube is secured in DISCONNECTION PROCEDURE position. 4. Push collet against body and slide tube out of fitting. 12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022... - Page 13 5. Turn the quick connect nut on the SmartTee™ anti- 6. Push the collet against the quick connect nut and slide tube clockwise to release the collet. out of fitting. Copyright © Puretec Pty Ltd 2022 Puretec Sparq S5 User Guide...
- Page 14 Note: For thin bench tops or a sink mount, use the supplied spacer, slipping it up the thread, followed by the black nut to tighten. 8. Connect the straight connector to the white tube on the tap (see Fig. 6). 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
-
Page 15: Installation
The SPARQ-CO2 is NOT refillable. 19. Ensure the regulator is in the off position by turning the black knob fully counterclockwise (-) until home (see Fig. 2). Copyright © Puretec Pty Ltd 2022 Puretec Sparq S5 User Guide... -
Page 16: Cold & Sparkling Water Commissioning
Slowly open the CO regulator by turning the black knob clockwise (+) until the gauge reads 3 Bar. 16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022... -
Page 17: Gas Replacement
Note: Some CO will escape as the valve in the bottle is depressed. Use soapy water on the connection between the bottle and regulator to test for leaks. Copyright © Puretec Pty Ltd 2022 Puretec Sparq S5 User Guide... -
Page 18: Filter Replacement
(It is normal for black fines, cloudiness or micro-bubbles to come through during the filter flush). Check for leaks, if any, rectify them before leaving the unit. 18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022... -
Page 19: Troubleshooting
Turn on the soda power switch. Soda not working line needs re- Follow the Soda/Sparkling or flat. commissioning. Water Commissioning steps. Slightly increase CO Not enough bar pressure. pressure. DO NOT exceed 4 bar. Copyright © Puretec Pty Ltd 2022 Puretec Sparq S5 User Guide... -
Page 20: Warranty
This product is warranted to be free of defect of material and workmanship for 2 years from date of purchase. Puretec is renowned for its quality and after-sales support so if you have any issues please call 1300 140 140 (AU) or 0800 130 140 (NZ). To make a warranty claim, contact us directly or the place of original purchase. - Page 21 Warranty WARRANTY / AUSTRALIA This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law.
- Page 22 22 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
- Page 23 Copyright © Puretec Pty Ltd 2022 Puretec Sparq S5 User Guide...
