INSTALLATION AND CONNECTIONS 3

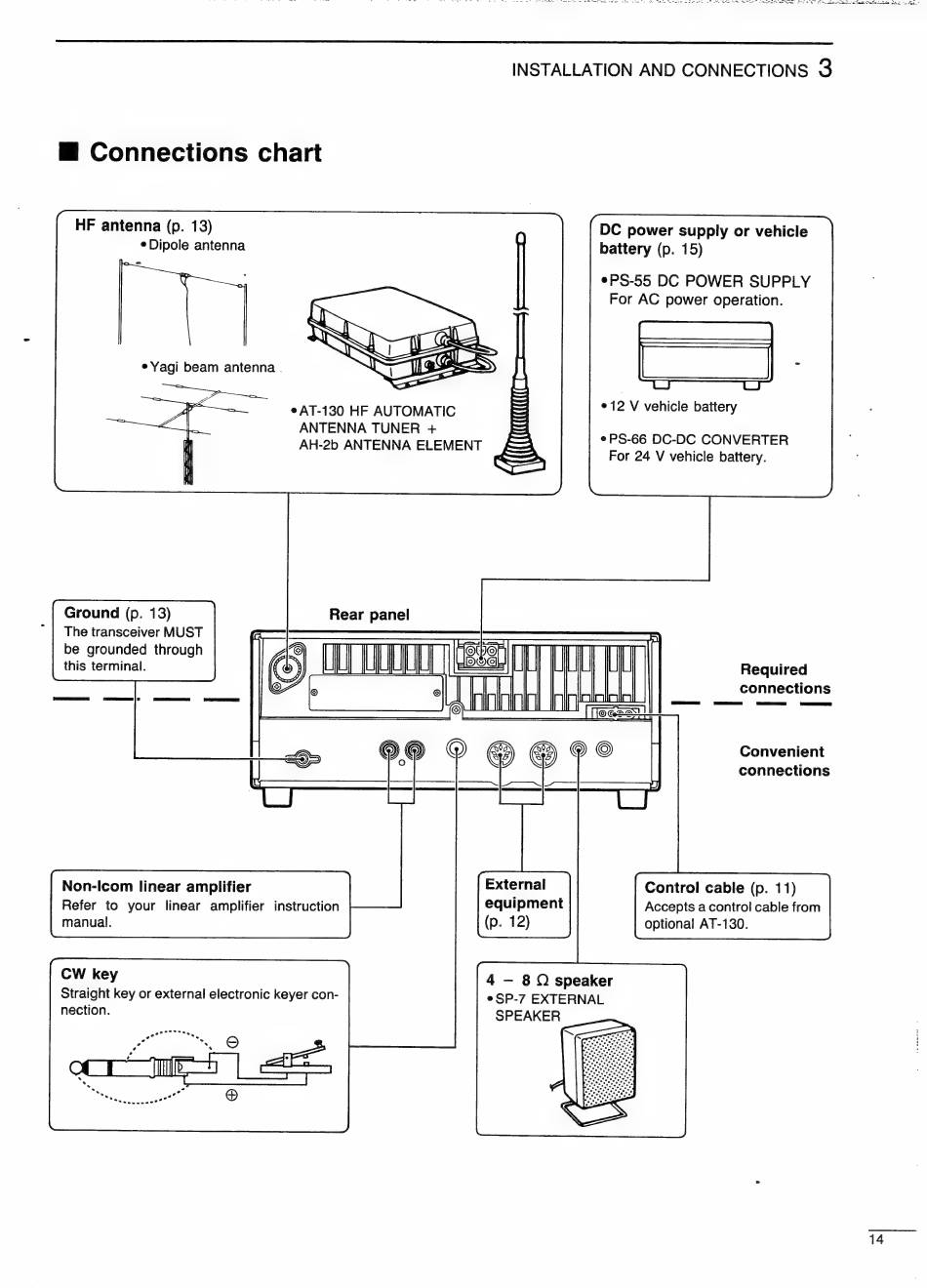

E Connections chart
HF antenna (p. 13)
e Dipole antenna
DC power supply or vehicle
battery (p. 15)
ePS-55 DC POWER SUPPLY
For AC power operation.
e Yagi beam antenna .
e12 V vehicle battery
e AT-130 HF AUTOMATIC
ANTENNA TUNER
+
AH-2b ANTENNA ELEMENT
e PS-66 DC-DC CONVERTER
For 24 V vehicle battery.
Ground (p. 13)
The transceiver MUST
Rear panel
be grounded through
this terminal.
E
Required
non
connections
hi.
=
a
Convenient
connections
External
equipment
(p. 12)
Control cable (p. 11)
Accepts a control cable from
optional AT-130.
Non-icom linear amplifier
Refer
to your
linear amplifier
instruction
manual.
CW key
Straight key or external electronic keyer con-
nection.
4 — 8 Q speaker
e SP-7 EXTERNAL
SPEAKER
Saas BREE
ah
14
