2 OPERATION

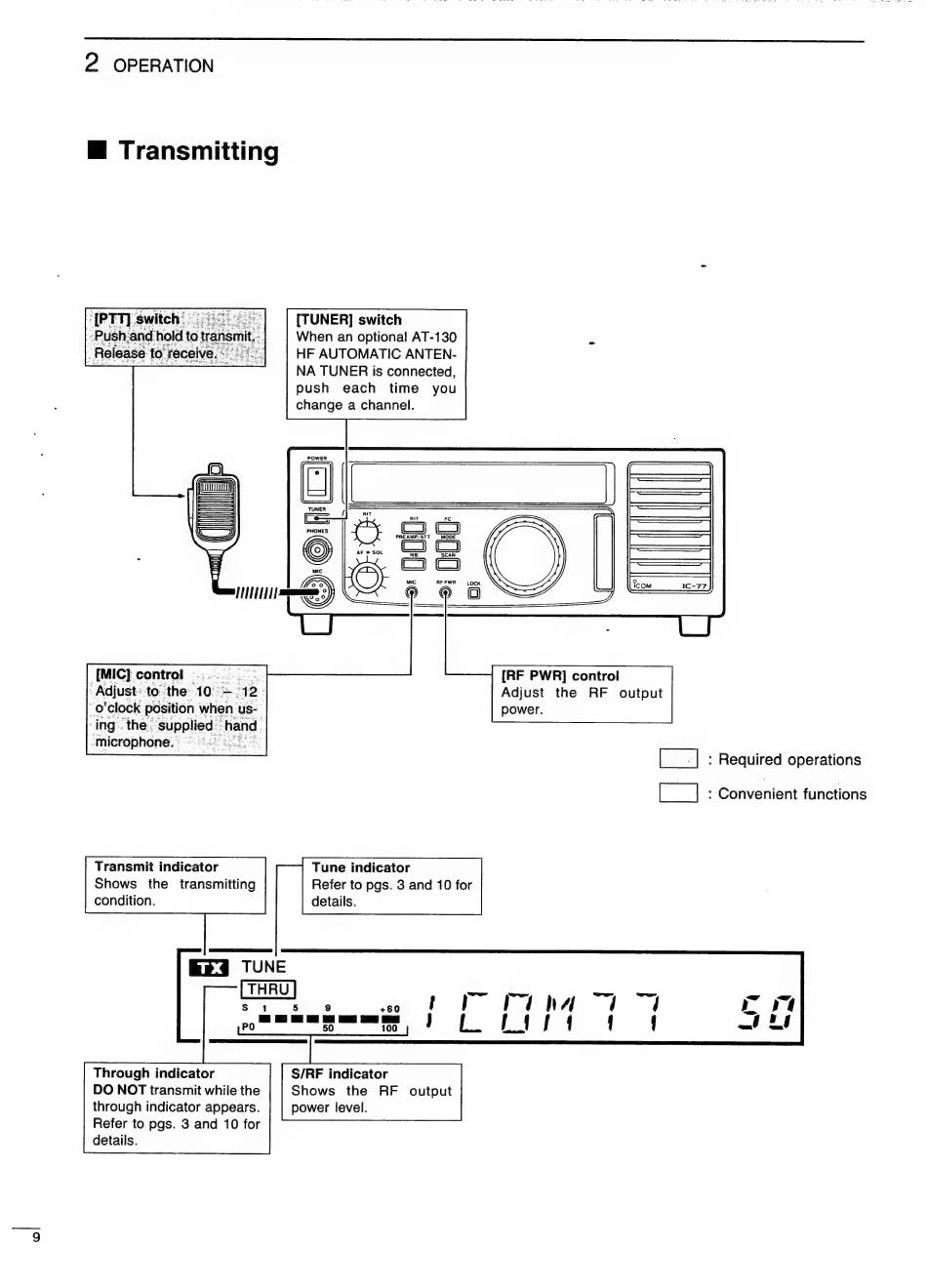

E Transmitting
[TUNER] switch
When an optional AT-130
HF AUTOMATIC ANTEN-
NA TUNER is connected,
push each time you
change a channel.
[MIC] control - c a g S e e
Adjust to the: '10% — 12 j
o "clock position when us-
-ing the: supplied Tand
'microphone. SoS L a u e
[RF PWR] control
Adjust the RF output
power.
: Required operations
ee : Convenient functions
Tune indicator
Refer to pgs. 3 and 10 for
details.
Transmit indicator
Shows the transmitting
condition.
TUNE
Sı 5 sco T ~~ m ha ar ar i vi
B0 a J lL ri 1 ] { m =,
S/RF indicator
Shows the RF output
power level.
Through indicator
DO NOT transmit while the
through indicator appears.
Refer to pgs. 3 and 10 for
details.
