AEM CD-5 User Instructions

DESCRIPTION
Adapter plate and hardware to adapt the CD-5 or CD-7 displays to the RAM mount system.

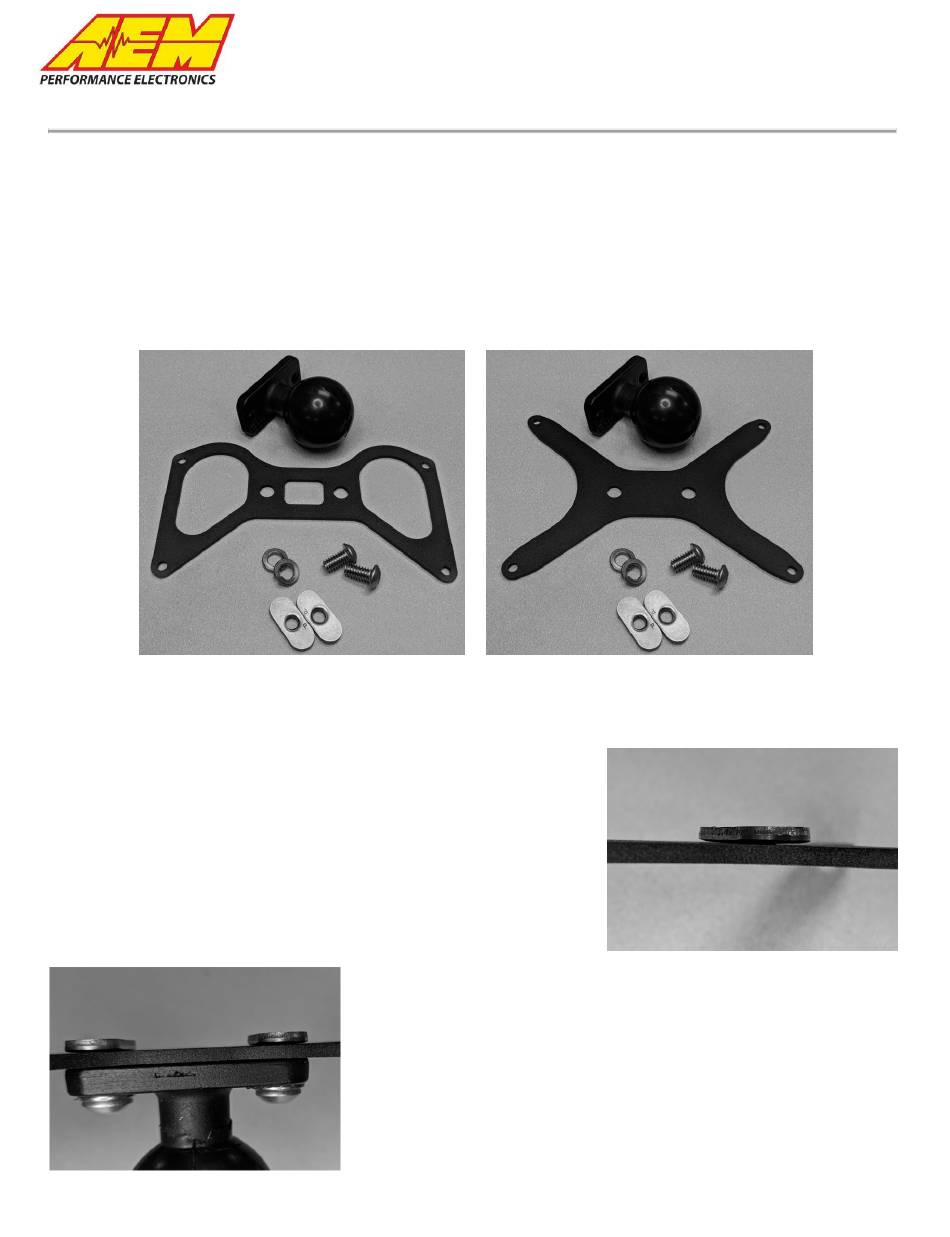

KIT CONTENTS

1x Adapter Plate for either the CD-5 or CD-7, 0.093" steel, black texture powder coated

1x RAM-202U-12 Ball Mount ("C" sized")

2x SS ¼" Split Washer

2x SS ¼-20 Cap Screw

2x ¼-20 Tab Base Nut
30-5545, CD-5 RAM MOUNT KIT
KIT ASSEMBLY
1. Make sure the 2 RAM ball holes are free of any obstructions or flashing
from the powder coating process. The base nuts should fit flush with the
surface of the plate with the shoulder inside the hole.
USER INSTRUCTIONS
30-5545, ADAPTER KIT, RAM MOUNT CD-5
30-5546, ADAPTER KIT, RAM MOUNT CD-7
2. Attach the RAM Ball mount to the plate with the screws and tighten. Once
installed, the screws should not protrude out the rear of the mount.
30-5546, CD-7 RAM MOUNT KIT
10-5701
12/10/2018
