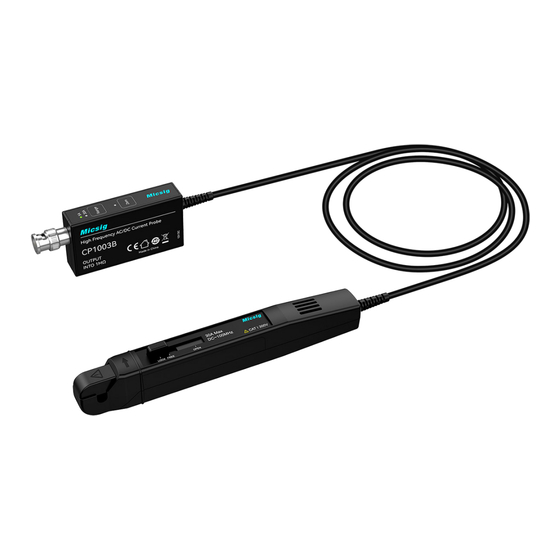

- Page 1 Tablet Oscilloscope Creator Optical-isolated Probe Leader High Frequency AC/DC Current Probe CP series User Manual Shenzhen Micsig Technology Co., Ltd. www.micsig.com Micsig Website...
- Page 2 Micsig shall not be liable for errors or incidental or consequential damages arising out of the furnishing, use or application of this document or any information contained herein.
- Page 3 The content of the anti-counterfeiting label has been altered, or is blurred and unrecognizable. c. It has been dismantled by unauthorized personnel by Micsig (eg: changing wires, dismantling internal components). d. There is no sales voucher or the content of the sales voucher does not match the...
-
Page 4: Table Of Contents
Connecting to an oscilloscope Degaussing and Zero Function Check and Basic Operation ……………………………… 10 Technical Specifications ……………………………………………… 11 Warranted Characteristics Typical Characteristics Nominal Characteristics Precautions ……………………………………………………………… 16 Maintenance …………………………………………………………… 18 Troubleshooting Cleaning High Frequency AC/DC Current Probe CP series User Manual... -
Page 5: General Safety Summary
WARNING: A "WARNING" statement identifies conditions or actions that could result in personal injury or life-threatening conditions. CAUTION: A “CAUTION”statement identifies conditions or actions that could cause damage to this product or other property. High Frequency AC/DC Current Probe CP series User Manual... -
Page 6: Maintenance Safety
Pay attention when repairing with electricity: Hazardous voltages or currents may be present in this product. Disconnect power and test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connectors. High Frequency AC/DC Current Probe CP series User Manual... -
Page 7: Compliance Information
＊ CAT III refers to the high voltage and high energy level, refers to the fixed installation of the main power supply circuit, generally refers to 380V three-phase voltage. ＊ CAT IV refers to three-phase lines at utility power connections, any outdoor conductors. Overvoltage Category CAT II High Frequency AC/DC Current Probe CP series User Manual... -
Page 8: Environmental Considerations
Other applicable regulations: IEC61010-1/A2:1995. Safety requirements of electrical equipment for measurement, control, and laboratory use. IEC61010-2-032:1994. Specific provisions for hand-held current clamps for electrical measurement and test equipment. High Frequency AC/DC Current Probe CP series User Manual... -
Page 9: Main Functions
Main Functions Main Functions Micsig CP series high-frequency AC/DC current probe has bandwidth up to 100 MHz, 5A / 30A dual-range design, measures 30A continuous current and 50A peak current with 1% accuracy. Resolution up to 1mA, high signal-to-noise ratio, demagnetization and Auto- Zero completed at the same time. -
Page 10: Probe Structure
WARNING: Do not drop the probe or subject it to strong shocks, as this may result in damage to the probe. WARNING: Do not connect the current probe to any wire whose voltage or current exceeds the probe rating. High Frequency AC/DC Current Probe CP series User Manual... -
Page 11: Probe Control Module
＊ The probe will automatically go through a degaussing and zeroing procedure every time it is powered on. ＊ Input current overload will magnetize the probe, please demagnetize the probe after the overload occurs. High Frequency AC/DC Current Probe CP series User Manual... -
Page 12: Connection
＊ Whenever the probe is placed in a strong external magnetic field Press the button "Zero □ ", the button lights up, probe will conduct degaussing and zero calibration. If the button light flashes 5 times, it means zero calibration failed. High Frequency AC/DC Current Probe CP series User Manual... -
Page 13: Function Check And Basic Operation
＊ Close and lock the probe grip on the wire. For correct polarity readings, connect the probe from positive to negative so that the direction of current flow matches the arrow on the probe clip. High Frequency AC/DC Current Probe CP series User Manual... -
Page 14: Technical Specifications
Measuring range 5Arms（5A） 30Arms（30A） Max. measuring current 50Apk，100Apk-pk，30Arms Noise < 4mApp（5A） < 30mApp（30A） Overcurrent Alarm Value ≥ 5Apk（5A） ≥ 50ApK（30A） Max. working voltage CAT I 300V Max. floating voltage CAT I 300V High Frequency AC/DC Current Probe CP series User Manual... - Page 15 WARNING：When measuring high-frequency current, be careful not to exceed the current value shown in the curve. Use of the maximum continuous current exceeding the curve will cause the probe to burn. Figure 2: Amplitude-frequency characteristic curve CP1003B High Frequency AC/DC Current Probe CP series User Manual...
- Page 16 WARNING：When measuring high-frequency current, be careful not to exceed the current value shown in the curve. Use of the maximum continuous current exceeding the curve will cause the probe to burn. High Frequency AC/DC Current Probe CP series User Manual...
- Page 17 Technical Specifications Figure 5: Amplitude-frequency characteristic curve CP503B Figure 6: Input Impedance VS Frequency Curve CP503B High Frequency AC/DC Current Probe CP series User Manual...
-
Page 18: Nominal Characteristics
Features Parameter Input coupling Output sensitivity 1V / 1A（5A，1X) 1V / 10A（30A，10X） Power supply DC 12V Connection Connect the output to 1MΩ Compatibility Compatible with any BNC interface oscilloscopes High Frequency AC/DC Current Probe CP series User Manual... -
Page 19: Precautions
If there are foreign objects on the clamp head tooth surface, a small gap will be generated between the upper and lower layers of the current sensor, causing the probe to produce resonance noise. High Frequency AC/DC Current Probe CP series User Manual... - Page 20 When measuring small currents of a few mA, you can wrap the measured conductor in the clamp mouth of the probe for several turns, and the result divided by the corresponding number of turns is the actual current value. High Frequency AC/DC Current Probe CP series User Manual...
-
Page 21: Maintenance
If the probe does not work on other channels or on the oscilloscope, the probe may be defective, please contact the Micsig after-sales department for repair. High Frequency AC/DC Current Probe CP series User Manual... -
Page 22: Cleaning
Add: 6F, Jinhuanyu Building, No. 56, Tiezai Rd, Bao'an District, Shenzhen , Guangdong, China. *Micsig reserves all the rights of interpretation at any time, it is subject to update without prior notice. High Frequency AC/DC Current Probe CP series User Manual...
